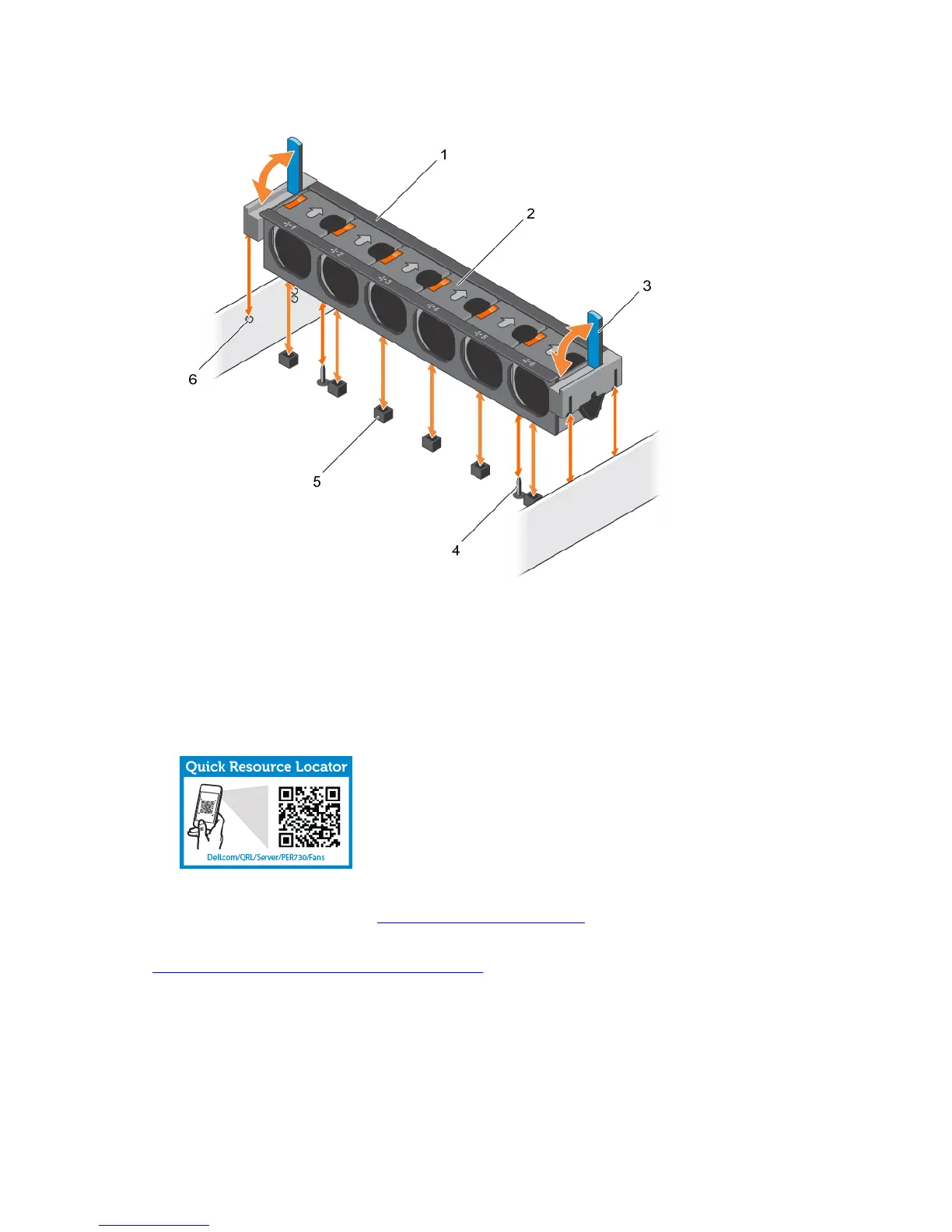

Figure 15. Removing and installing the cooling-fan assembly
1. cooling-fan assembly 2. cooling fan (6)
3. release lever (2) 4. guide pin on the system board (2)
5. cooling-fan connector (6) 6. guide pin on the chassis (6)
To see a video on removing and installing a cooling-fan assembly, click http://www.Dell.com/QRL/
Server/PER730/Fans or scan the following QR code.
1. Replace the cooling-fan assembly.
2. Follow the procedure listed in After working inside your system.
To see a video on how to remove & install a fan or the fan assembly, scan this QR code, or click here:
http://www.Dell.com/QRL/Workstation/R7910/Fans
43
