Dell S2240T User Manual

Operating the Monitor | 39

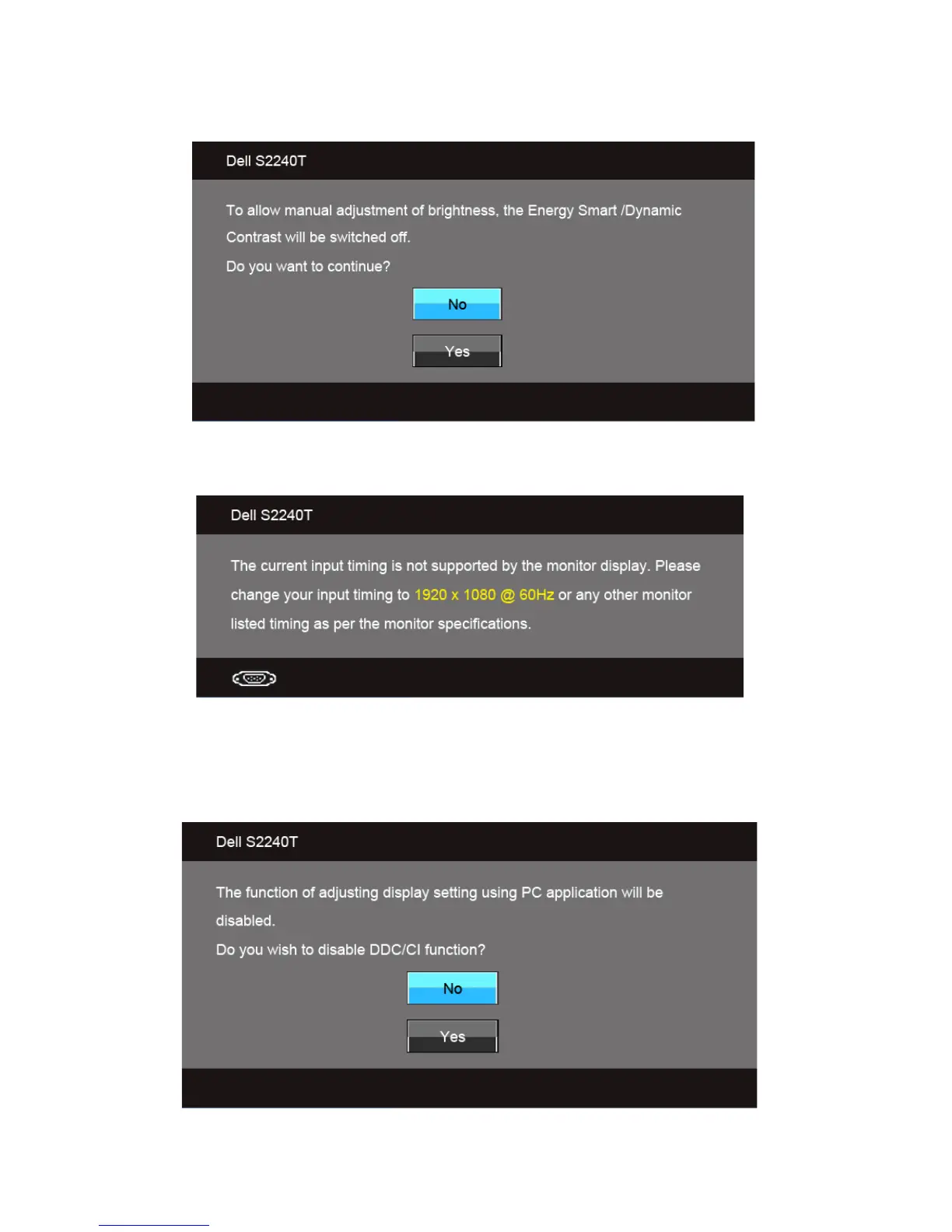

OSD Warning Messages
When the Energy Smart or Dynamic Contrast feature is enabled (in these preset modes:
Game or Movie), the manual brightness adjustment is disabled.
When the monitor does not support a particular resolution mode, you will see the
following message:
This means that the monitor cannot synchronize with the signal that it is receiving from
the computer. See Monitor Specifications for the Horizontal and Vertical frequency
ranges addressable by this monitor. Recommended mode is 1920 x 1080.
You will see the following message before the DDC/CI function is disabled:

Dell S2240T Specifications

General

Color gamut	84 %
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Screen shape	Flat
LED backlight	Yes
Response time	12 ms
Display diagonal	21.5 \
Touch technology	Multi-touch
Touchscreen type	Tabletop
Display brightness	250 cd/m²
Display technology	LED
Supported video modes	1080p
Touchscreen technology	Capacitive
Viewable size diagonal	546 mm
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	54.6 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
Number of simultaneous touchpoints	10
Product color	Black, Silver
Glass thickness	1.1 mm
Placement supported	Horizontal
Display viewable area (HxV)	476.64 x 268.11 mm
Dimensions (W x D x H) with stand	522.5 x 77.4 x 382.9 mm
Cables included	AC, HDMI, USB
Tilt angle range	0 - 60 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power supply type	DC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Package weight	6900 g
NVIDIA G-SYNC	No
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	77.4 mm
Width (with stand)	522.5 mm
Height (with stand)	382.9 mm
Weight (without stand)	3400 g
