Dell S2722DC - USB Type-C Connector; USB 3.2 Gen 1 (5 Gbps) Downstream Connector

22  │  About your monitor

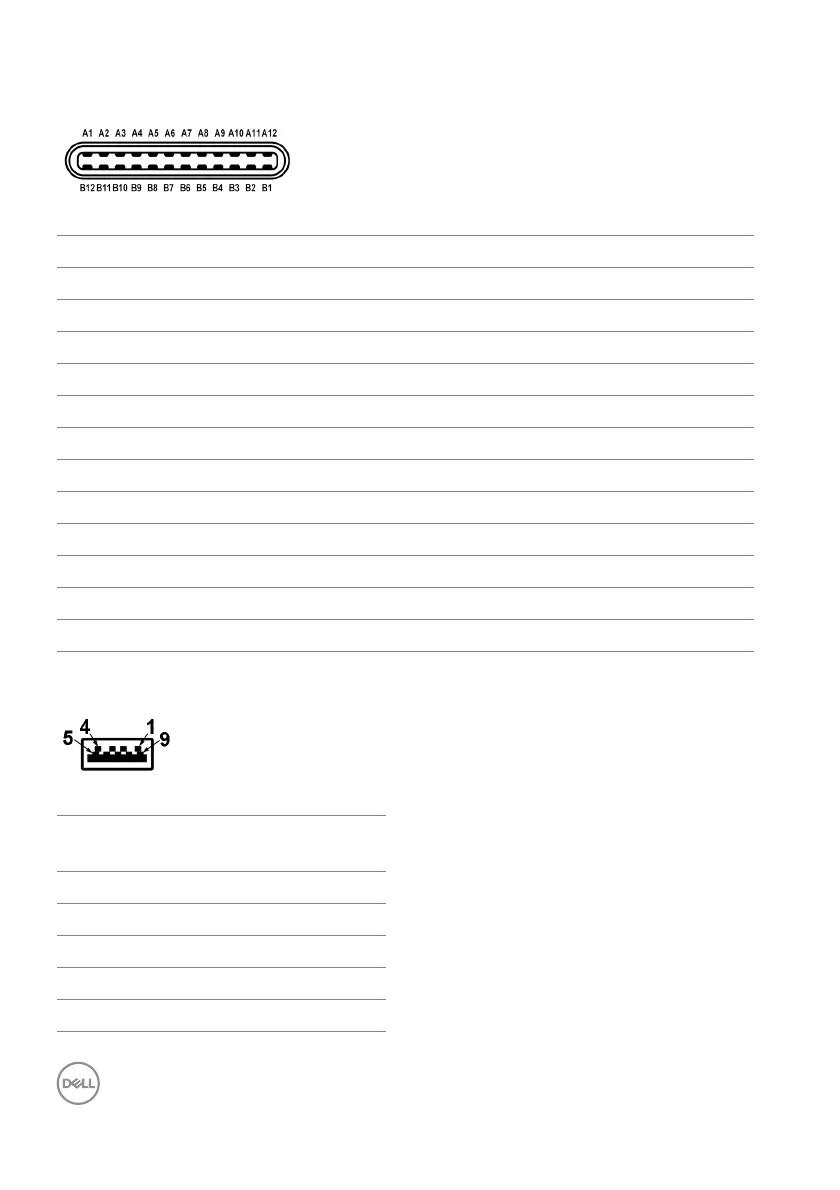

USB Type-C connector
Pin Number Signal Name Pin Number Signal Name
USB 3.2 Gen 1 (5 Gbps) downstream connector
A1 GND B1 GND
A2 TX1+ B2 TX2+
A3 TX1- B3 TX2-
A4 VBUS B4 VBUS
A5 CC1 B5 CC2
A6 D+ B6 D+
A7 D- B7 D-
A8 SBU1 B8 SBU2
A9 VBUS B9 VBUS
A10 RX2- B10 RX1-
A11 RX2+ B11 RX1+
A12 GND B12 GND
Pin
number
9-pin side of the
connec
tor
1 VCC
2 D-
3 D+
4 GND
5 SSRX-
