10 Dell EMC Networking with Isilon Front-End Deployment and Best Practices Guide | version 1.0
3 Management
The S3048-ON is used as a Top of Rack (ToR) switch, that aggregates all of the management connections.
Each switch has a connection from the out-of-band (OOB) management port to the ToR, as well as each
Isilon Node and PowerEdge server. The first Isilon node management connections are shown, each
additional node is cabled similarly. This can be seen in Figure 9 below, all equipment in other racks is
configured in a similar fashion.

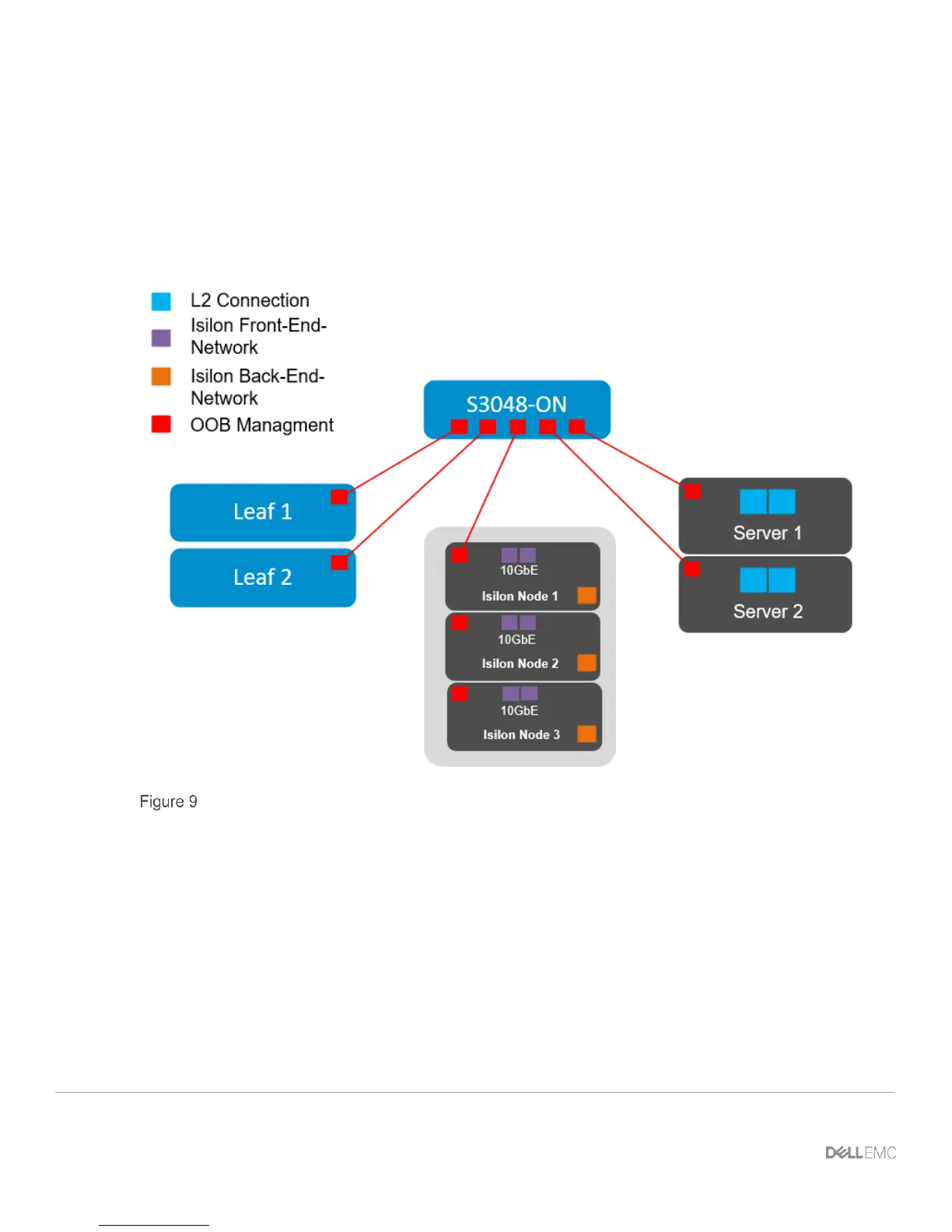

Management configurations for rack 1
