Dell S3048-ON Deployment Guide

17 Dell EMC Networking with Isilon Front-End Deployment and Best Practices Guide | version 1.0

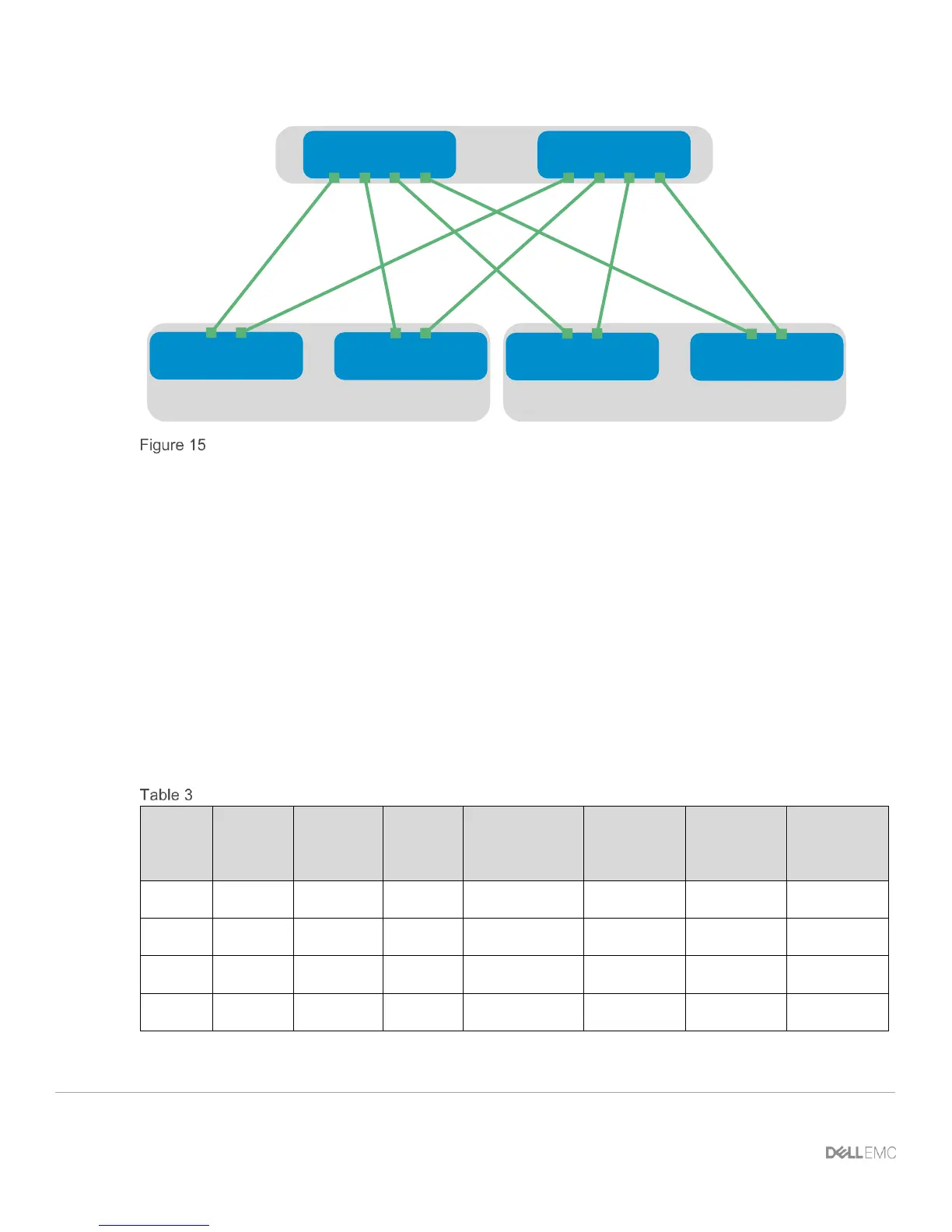

Rack 2Rack 1
10.0.1.1/32 10.0.1.2/32
10.0.2.1/32
10.0.2.2/32
10.0.2.3/32
10.0.2.4/32
Loopback addressing
All loopback addresses used are part of the 10.0.0.0/8 address space with each address using a 32-bit mask.
In this example, the third octet represents the layer, “1” for the spine and “2” for the leaf. The fourth octet is
the counter for the appropriate layer. For example, 10.0.1.1/32 is the first spine switch in the topology while
10.0.2.4/32 is the fourth leaf switch.
5.3 Point-to-point interfaces
Table 3 lists layer 3 connection details for each leaf and spine switch.
All addresses come from the same base IP prefix, 192.168.0.0/16 with the third octet representing the spine
number. For example, 192.168.1.0/31 is a two-host subnet connected to Spine 1 while 192.168.2.0/31 is
connected to Spine 2. This IP scheme is easily extended as leaf and spine switches are added to the
network.
Link labels are provided in the table for quick reference with Figure 16.
Interface and IP configuration
Link
Label
Source
switch
Source
interface
Source
IP
Network
Destination
switch
Destination
interface
Destination
IP
A
Leaf 1
Eth1/1/49
.1
192.168.1.0/31
Spine 1
Eth1/1/1
.0
B
Leaf 1
Eth1/1/50
.1
192.168.2.0/31
Spine 2
Eth1/1/1
.0
C
Leaf 2
Eth1/1/49
.3
192.168.1.2/31
Spine 1
Eth1/1/2
.2
D
Leaf 2
Eth1/1/50
.3
192.168.2.2/31
Spine 2
Eth1/1/2
.2

Dell S3048-ON Specifications

General

Rack Units	1U
Form Factor	Rack-mountable
Input Voltage	100-240V AC
Power Supply	2 hot-swappable power supplies
Management	CLI, Web, SNMP
Product Type	Switch
MAC Address Table Size	32K entries
Jumbo Frame Support	Yes
Latency	< 3 microseconds
Ports	48 x 1GbE RJ45, 4 x 10GbE SFP+
