4.5 Layer 2 leaf-spine topology
In a layer 2 leaf-spine network, traffic between leafs and spines is switched (except for a pair of edge leafs) as
shown in Figure 13. VLT is used for multipathing and load balancing traffic across the layer 2 leaf-spine fabric.
Connections from hosts to leaf switches are also layer 2.
For connections to external networks, layer 3 links are added between the spines and a pair of edge leafs.

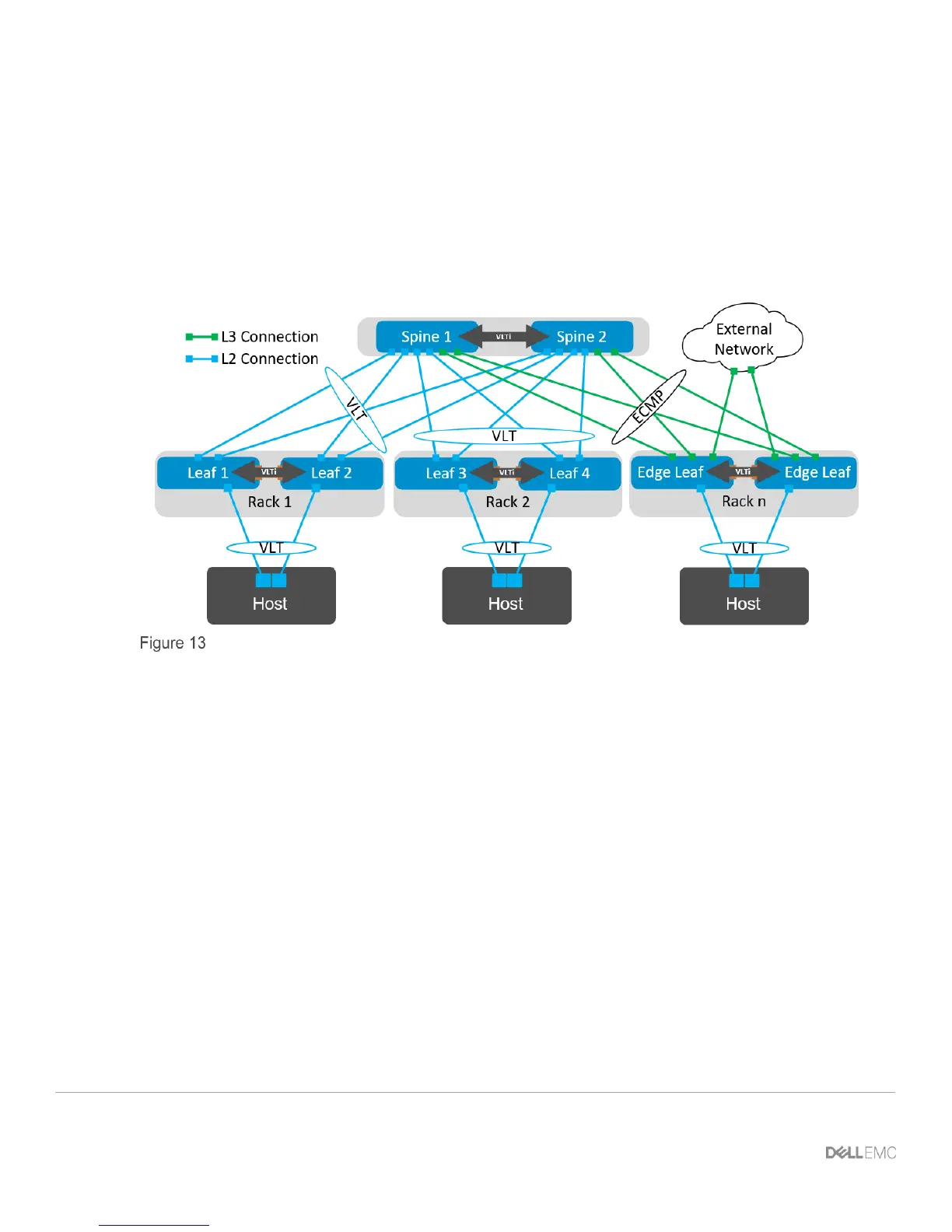

Layer 2 leaf-spine network

Dell S3048-ON Specifications

General

Rack Units	1U
Form Factor	Rack-mountable
Input Voltage	100-240V AC
Power Supply	2 hot-swappable power supplies
Management	CLI, Web, SNMP
Product Type	Switch
MAC Address Table Size	32K entries
Jumbo Frame Support	Yes
Latency	< 3 microseconds
Ports	48 x 1GbE RJ45, 4 x 10GbE SFP+
