51 Dell EMC Networking with Isilon Front-End Deployment and Best Practices Guide | version 1.0
OS9 Leaf pair

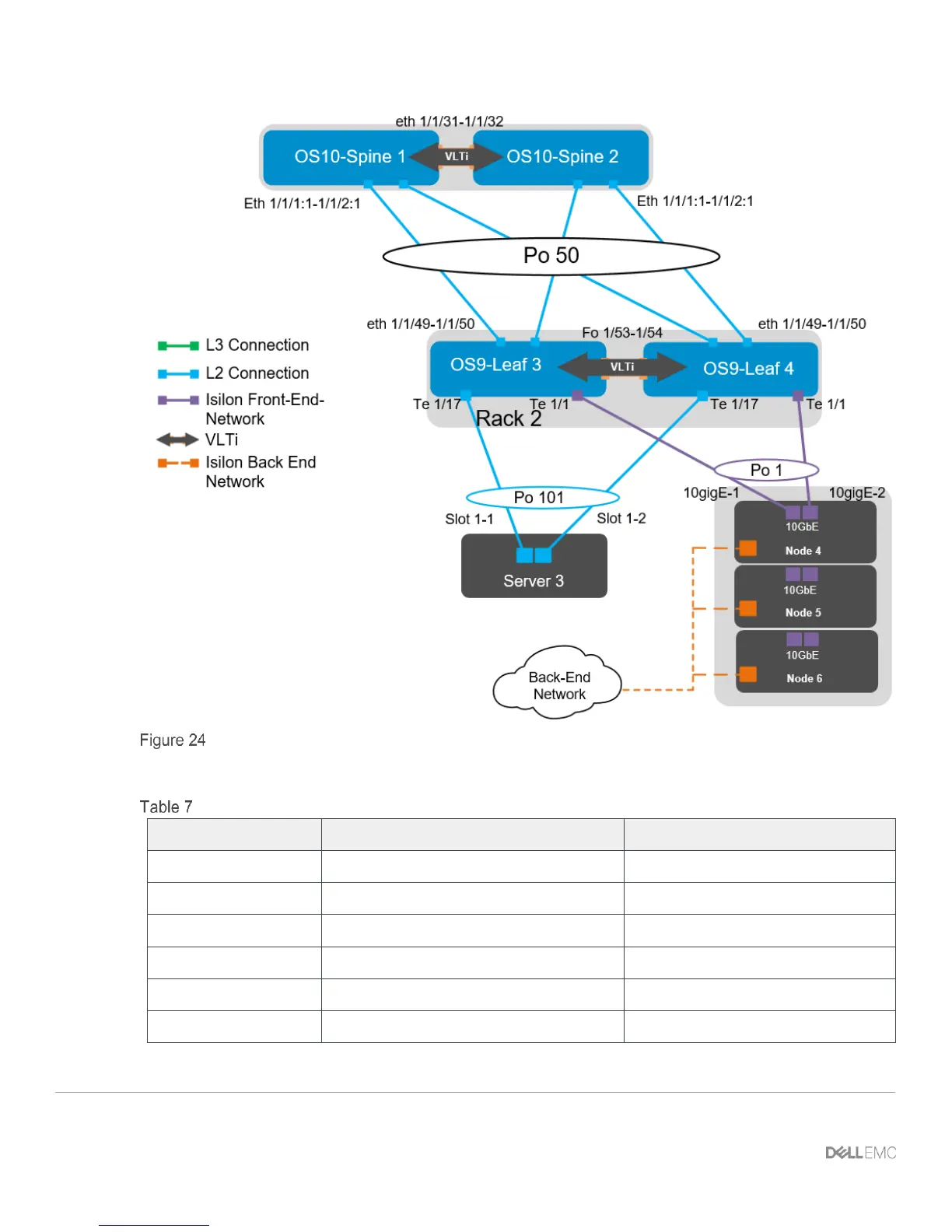

The ports for additional Isilon nodes and servers in this example can be found in the following table:
Interface enumeration
Server/Isilon Node
Switch
Leaf interface
Node 01-4
Leaf 3
tengigabitethernet 1/1/1
Leaf 4
tengigabitethernet 1/1/1
Node 01-5
Leaf 3
tengigabitethernet 1/1/3
Leaf 4
tengigabitethernet 1/1/3
Node 01-6
Leaf 3
tengigabitethernet 1/1/5
Leaf 4
tengigabitethernet 1/1/5
