Dell S4048-ON Deployment Guide

10 Dell EMC Networking with Isilon Front-End Deployment and Best Practices Guide | version 1.0
3 Management
The S3048-ON is used as a Top of Rack (ToR) switch, that aggregates all of the management connections.
Each switch has a connection from the out-of-band (OOB) management port to the ToR, as well as each
Isilon Node and PowerEdge server. The first Isilon node management connections are shown, each
additional node is cabled similarly. This can be seen in Figure 9 below, all equipment in other racks is
configured in a similar fashion.

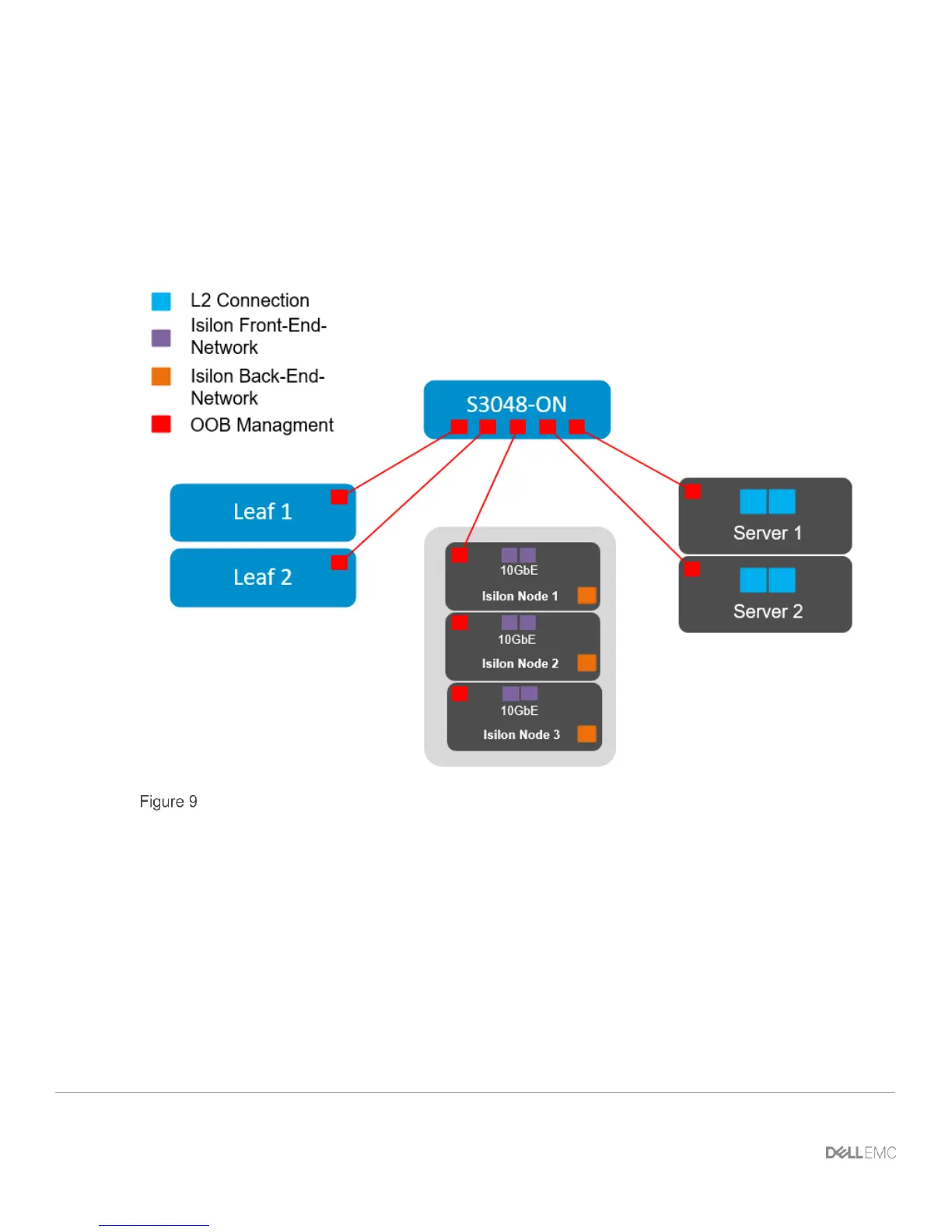

Management configurations for rack 1

Dell S4048-ON Specifications

General

Uplink Ports	6 x 40GbE QSFP+
Rack Units	1U
Product Type	Data Center Switch
Form Factor	Rack-mountable
Switching Capacity	1.44 Tbps
Power Supply	Dual, hot-swappable
MAC Address Table Size	128, 000 entries
Jumbo Frame Support	Yes
Features	VXLAN
Management	CLI, SNMP, Web
