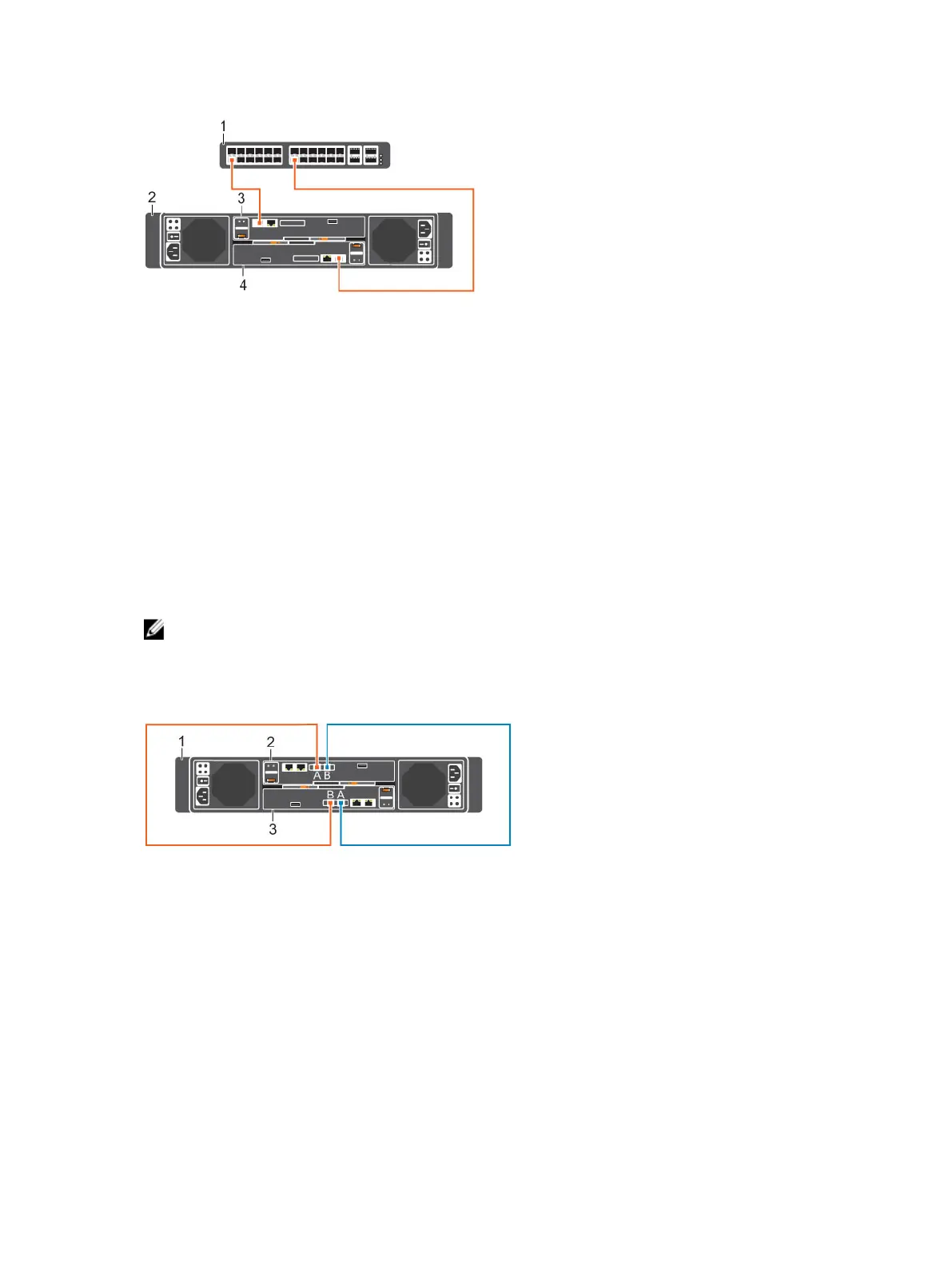

Figure 7. Storage System Connected to a Management Network

1. Management network switch 2. SCv2000/SCv2020 storage system

3. Storage controller 1 4. Storage controller 2

Back-End Cabling

An SCv2000/SCv2020 storage system can be deployed with or without SC100/SC120 expansion

enclosures

If the storage system is installed without expansion enclosures, you must interconnect the two storage

controllers together.

Interconnecting Two Storage Controllers

When an SCv2000/SCv2020 with two storage controllers is deployed without expansion enclosures, the

storage controllers must be interconnected using SAS cables.

NOTE: The top storage controller is storage controller 1 and the bottom storage controller is

storage controller 2.

1. Connect a SAS cable between storage controller 1: port A and storage controller 2: port B.

2. Connect a SAS cable between storage controller 1: port B and storage controller 2: port A.

Figure 8. Interconnected Storage Controllers

1. SCv2000/SCv2020 storage system 2. Storage controller 1

3. Storage controller 2

Cabling an Expansion Enclosure to a Storage System

An SCv2000/SCv2020 storage system supports multiple SC100/SC120 expansion enclosures.

Use SAS cables to connect an SC100/SC120 expansion enclosure to an SCv2000/SCv2020 storage

system.
