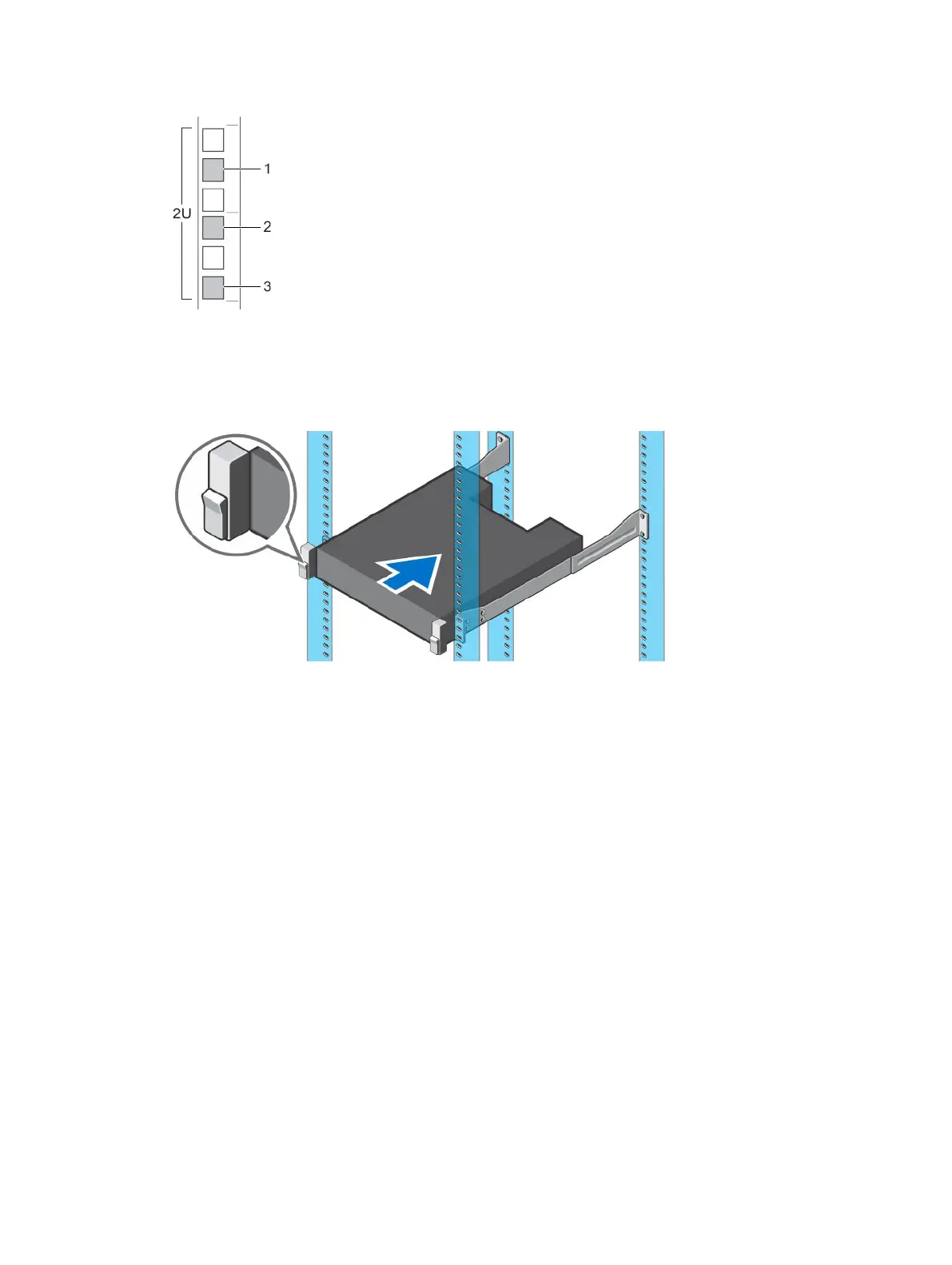

Figure 2. Hole Locations in Rack

1. Middle hole of top 1U 2. Top hole of bottom 1U

3. Bottom hole of bottom 1U

6. Slide the storage system chassis onto the rails.

Figure 3. Mount the SCv2000/SCv2020 Storage System Chassis

7. Secure the storage system chassis to the rack using the mounting screws within each chassis ear.

a. Lift the latch on each chassis ear to access the screws.

b. Tighten the screws to secure the chassis into the rack.

c. Close the latch on each chassis ear.

8. If the Storage Center system includes expansion enclosures, mount the expansion enclosures in the

rack. See the instructions included with the expansion enclosure for detailed steps.

Installing the Front Bezel

Install the bezel on the front of the storage system.

1. Hook the right end of the bezel onto the storage system.
