Setting Up the Monitor
Dell™U3011FlatPanelMonitorUser'sGuide
Connecting the Monitor
Organizing Your Cables
Attaching the Soundbar (optional)
Removing the Stand
Attaching the Stand
Connecting the Monitor
To connect your monitor to the computer:
1. Turnoffyourcomputeranddisconnectthepowercable.
2. Connect either the white (digital DVI-D) or the blue (analog VGA) or the black (DisplayPort) display connector cable to the corresponding video port on
thebackofyourcomputer.Donotusethethreecablesonthesamecomputer. Use all the cables only when they are connected to three different
computers with appropriate video systems.
3. Connect the USB uplink cable.

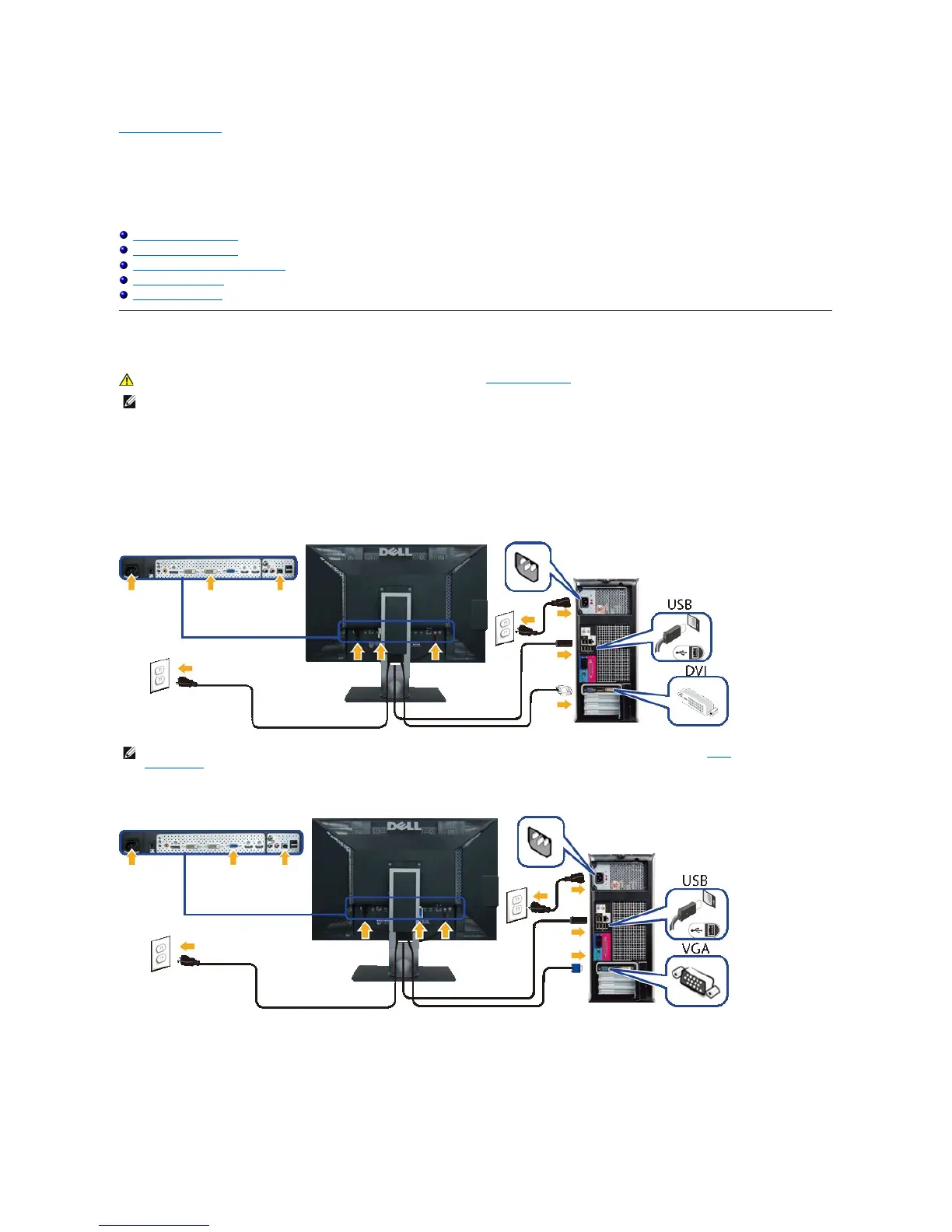

Connecting the white DVI cable and the USB uplink cable
Connecting the blue VGA cable and the USB uplink cable

Connecting the black DisplayPort cable and the USB uplink cable

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.
NOTE: USB uplink cable connection enables USB ports and card reader on the monitor to work.
NOTE: Your monitor supports two DVI ports. You can choose the input source (DVI-D 1 or DVI-D 2) through the OSD menu's Input
source select option.
