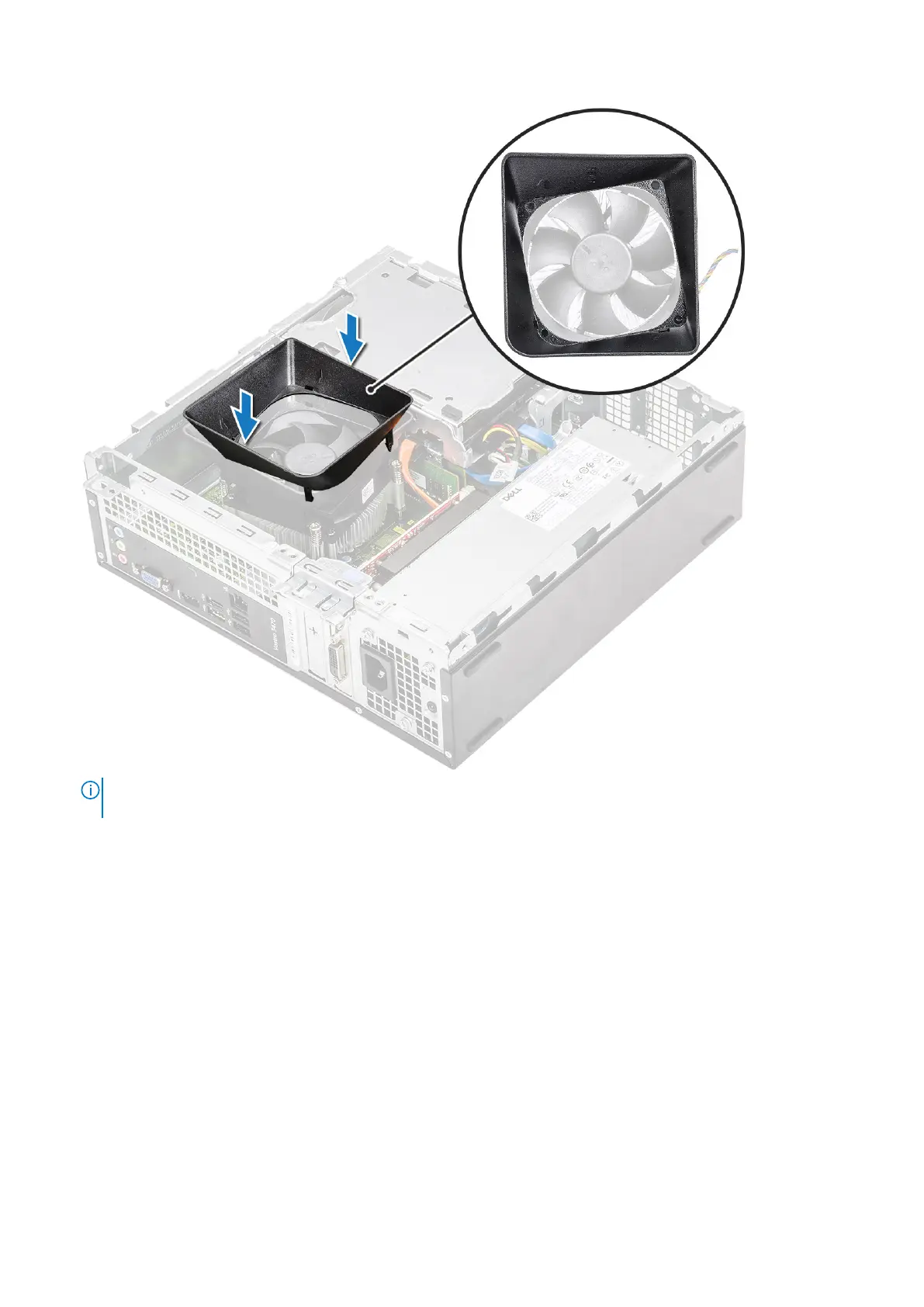

NOTE: Make sure the cooling shroud is placed such that the 'REAR' mark on the cooling shroud is towards the rear side
of the system.
3. Install the cover.
4. Follow the procedure in After Working Inside Your Computer.
Expansion card
Removing the PCIe X1 expansion card-optional
1. Follow the procedure in Before working inside your computer.
2. Remove the cover.
3. Perform the following steps to remove the expansion card:
a. Pull the metal tab to release the expansion card [1].
18
Disassembly and reassembly
