Dell Vostro 3267 - Optical Drive Removal and Installation

4. Install:
a. cooling shroud
b. front bezel
c. cover
5. Follow the procedures in After Working Inside Your Computer.
Optical drive
Removing the drive cage
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. front bezel
c. cooling shroud
d. 3.5-inch hard drive chassis

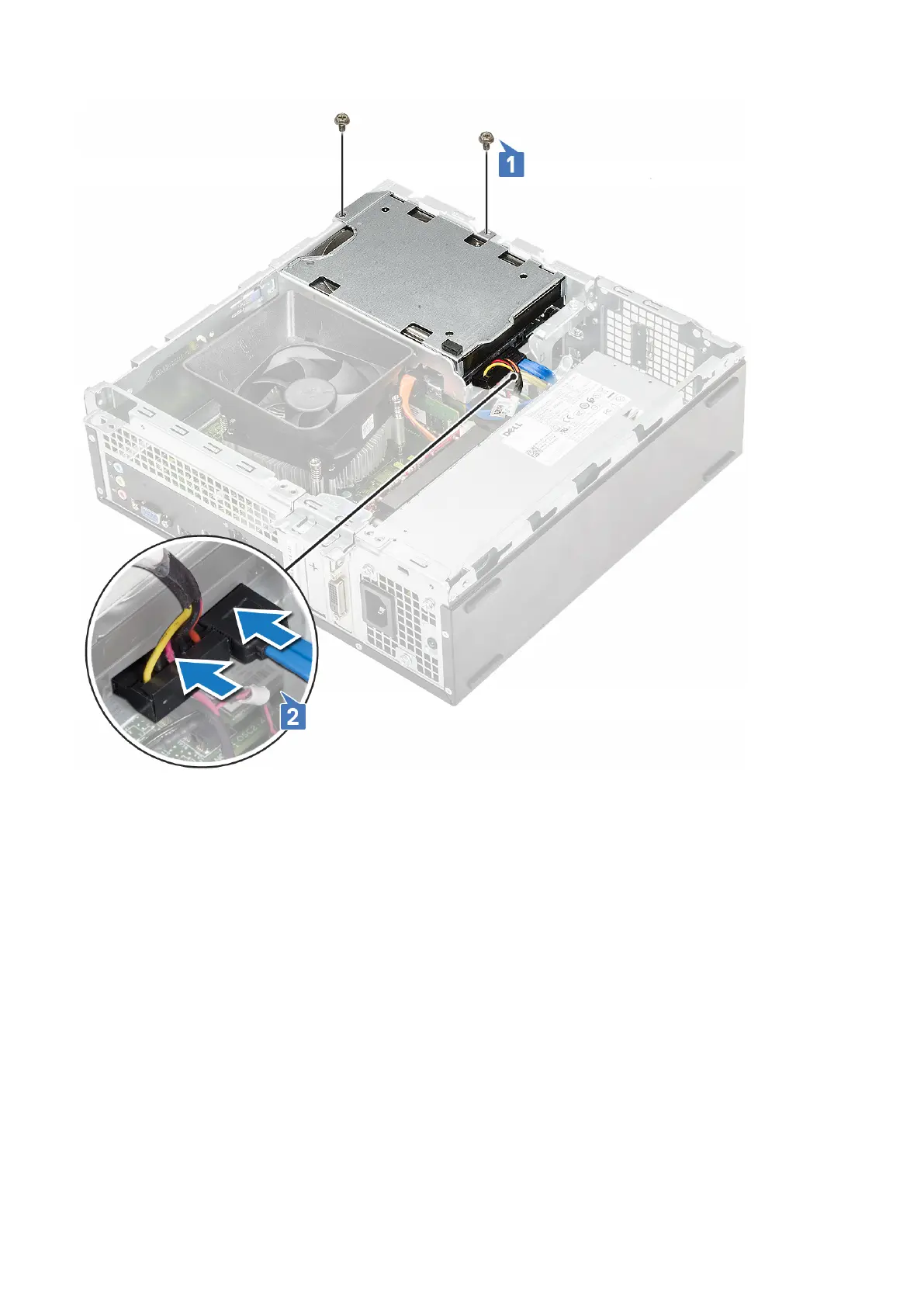

3. Follow the steps to release the drive cage:
a. Remove the 6-32xL3.66-32xL6.35 screw that secures the drive cage to the drive bay [1].
