Dell Vostro 3267 - Installing the 3.5-Inch Hard Drive Chassis

Installing the 3.5-inch hard drive chassis

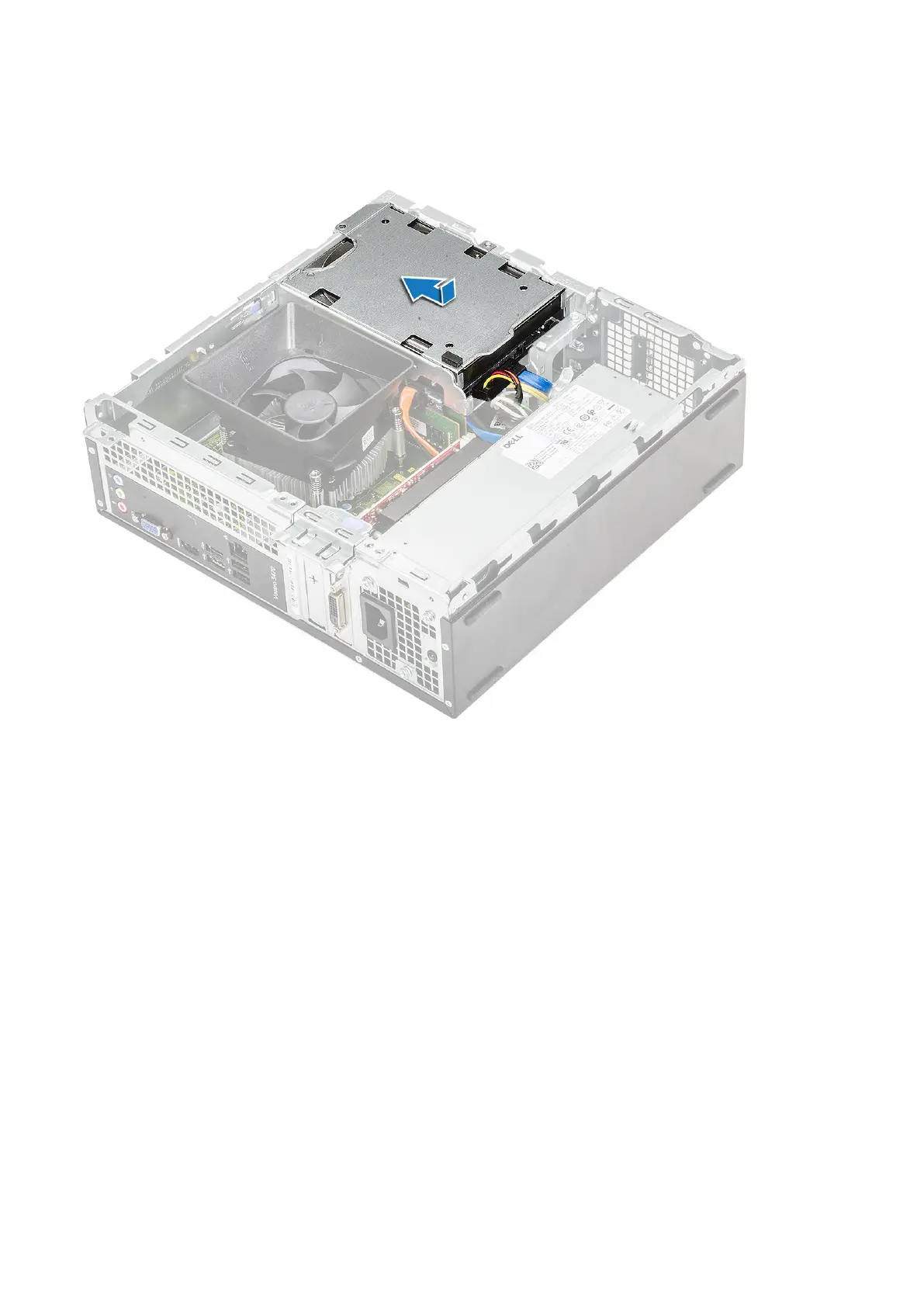

1. Slide the 3.5-inch hard drive chassis into the drive bay.
2. Replace the two 6-32xL3.56 screws to secure the 3.5-inch hard drive chassis to the computer [1].
3. Connect the data and power cables to the hard drive [2].
