Dell Vostro 3267 - Removing the 3.5-Inch Hard Drive from the Hard Drive Bracket

Removing the 3.5-inch hard drive from the hard drive bracket
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. cover
b. front bezel
c. cooling shroud
d. 3.5-inch hard drive chassis

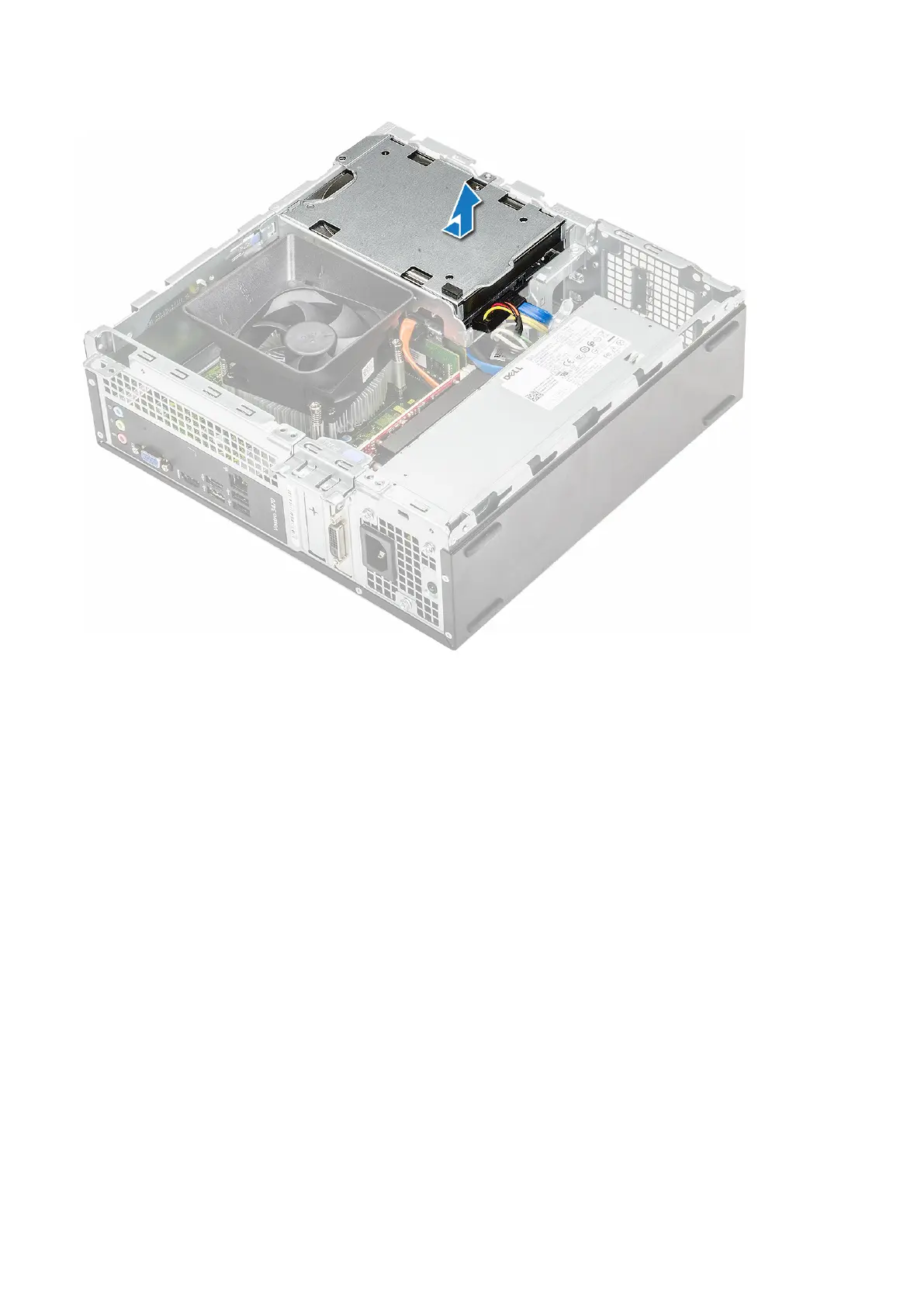

3. Follow the steps to remove hard drive bracket:
a. Remove the two 6-32xL3.6 screws that secures the hard drive to the bracket [1].
b. Slide and remove the hard drive from the bracket [2].
24
Disassembly and reassembly
