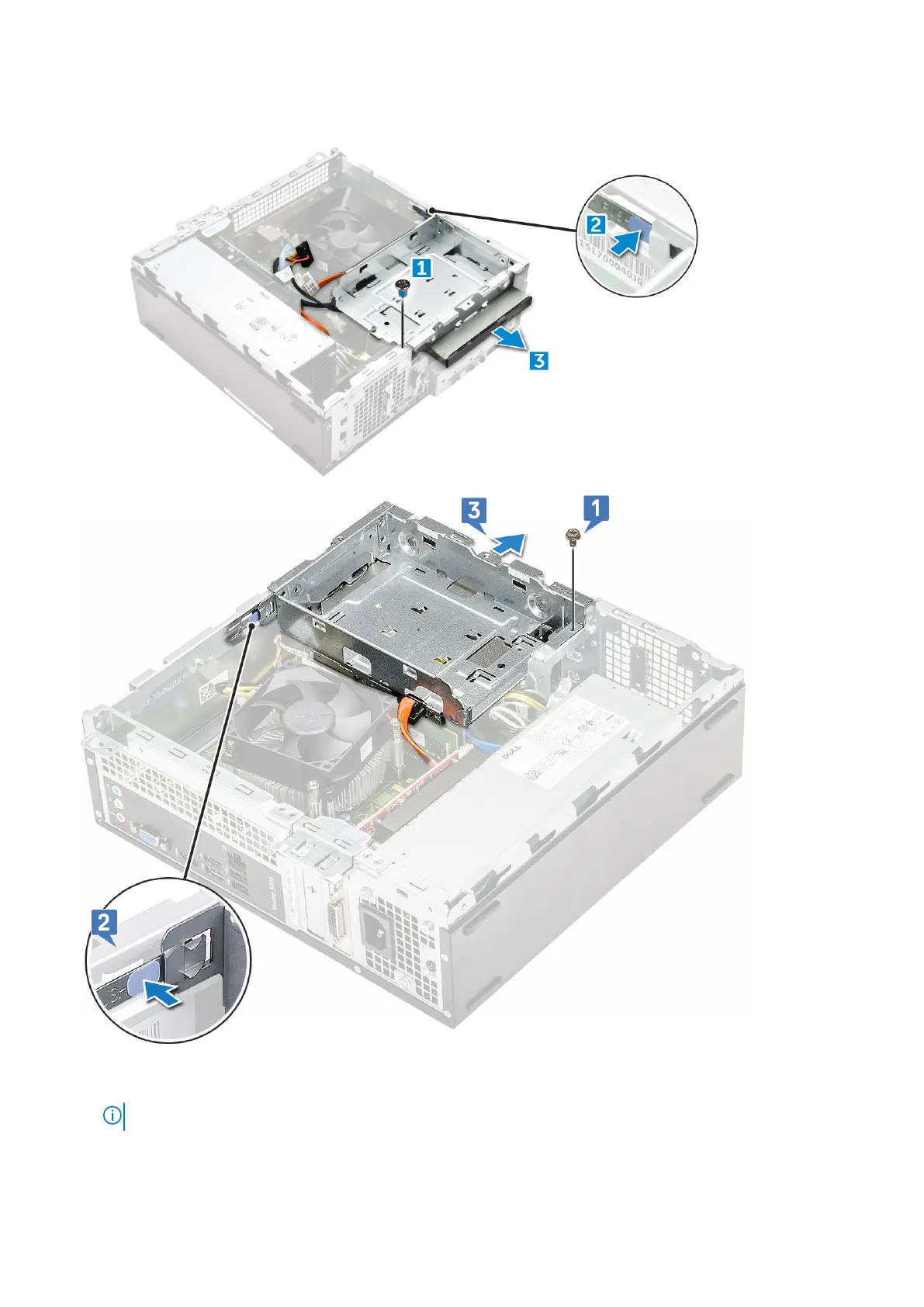

b. Press the blue tab to release the drive cage [2].
c. Slide the drive cage from the computer [3].
4. Follow the steps to remove the drive cage:
a. Disconnect the power and the data cables from the optical drive [1].
NOTE: For easy access to the power and the data cables, it is recommended to remove the cooling shroud.
b. Slide the optical drive [2] and lift it up to remove it from the chassis [3].
c. Lift the optical drive cage from the system [2].
28
Disassembly and reassembly
