Dell Vostro 3360 - Removing the Power Connector; Installing the Power Connector; Removing the Input;Output (I;O) Board

Removing the Power Connector
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) access panel
b) keyboard
c) palmrest
d) battery
e) display hinge cover
f) display assembly
g) fan
h) system board

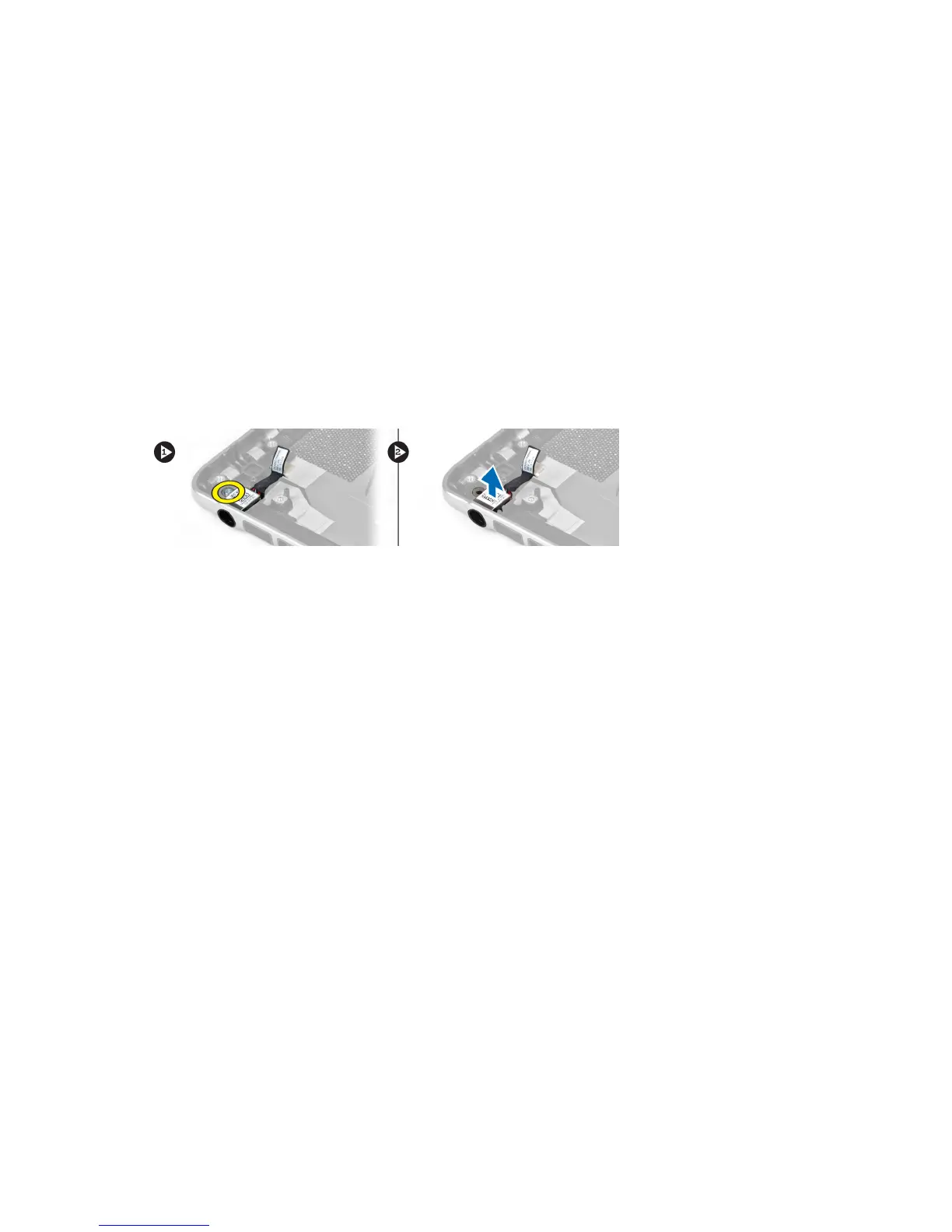

3. Remove the screw that secures the power connector to the computer and remove the power connector from the
computer.
Installing the Power Connector
1. Tighten the screw to secure the power connector to the computer.
2. Install :
a) system board
b) fan
c) display assembly
d) display hinge cover
e) battery
f) palmrest
g) keyboard
h) access panel
3. Follow the procedures in After Working Inside Your Computer .
Removing the Input/Output (I/O) board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) access panel
b) keyboard
c) palmrest
d) battery
3. Disconnect the speaker cable and the I/O-board cable from the I/O board.
