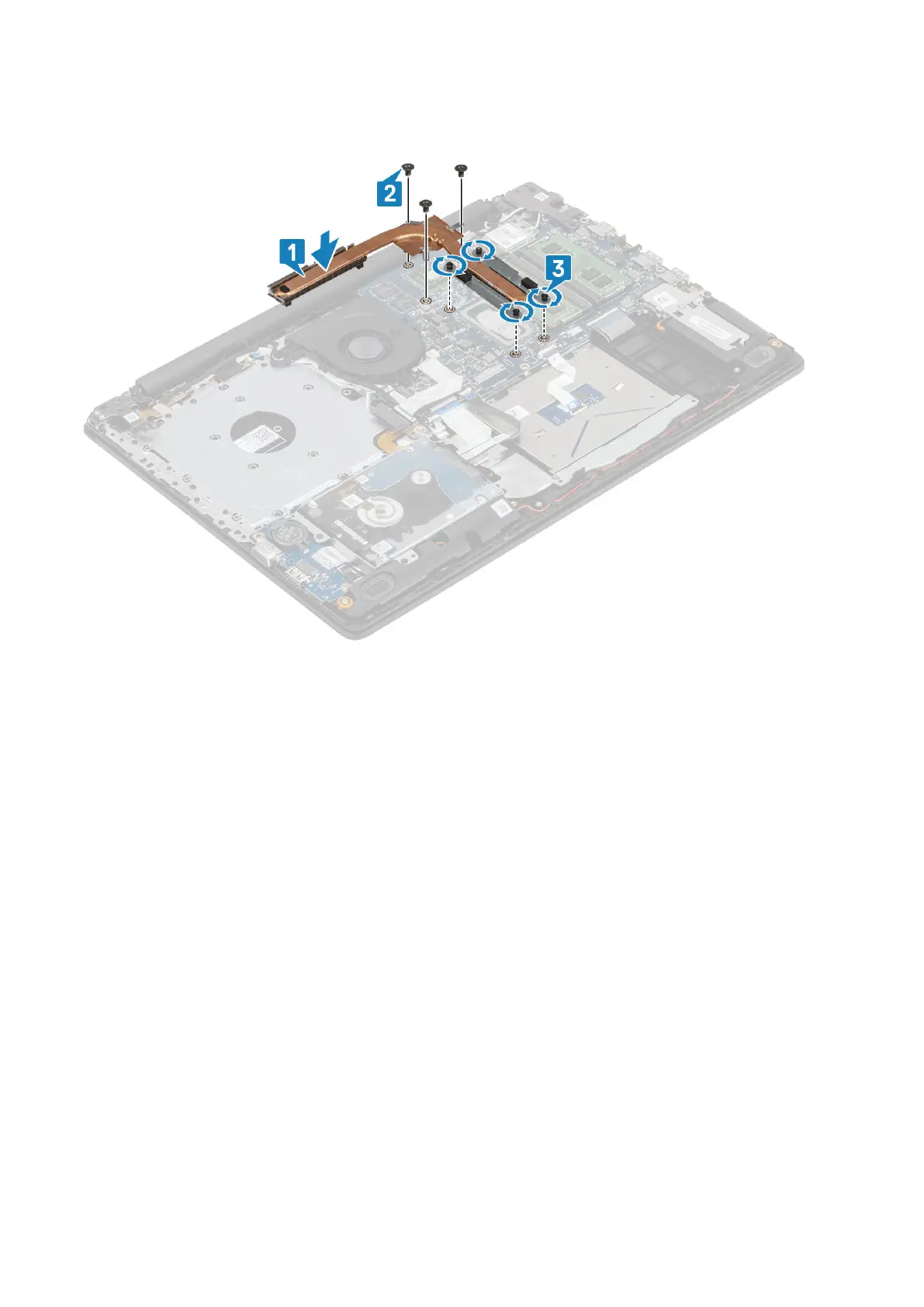

2. Replace the three (M2x3) screws that secure the heatsink to the system board [2].
3. In sequential order (as indicated on the heatsink), tighten the four captive screws that secure the heatsink to the system board [3].
Next steps
1. Connect the battery cable to the connector on the system board.
2. Replace the base cover
3. Replace the optical drive assembly
4. Replace the SD memory card
5. Follow the procedure in after working inside your computer
VGA Daughterboard
Removing the VGAcable
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the optical drive assembly
4. Remove the base cover
5. Disconnect the battery cable from the connector on the system board.
6. Remove the memory
7. Remove the WLAN
8. Remove the SSD
9. Remove the coin cell battery
10. Remove the hard drive assembly
11. Remove the system fan
12. Remove the heatsink
