Dell Vostro 3590 - Installing the Display Cable

5. Remove the battery
6. Remove the WLAN
7. Remove the SSD
8. Remove the hard drive assembly
9. Remove the system fan
10. Remove the heatsink
11. Remove the display assembly
12. Remove the display bezel
13. Remove the display panel
14. Remove the display hinges
Steps

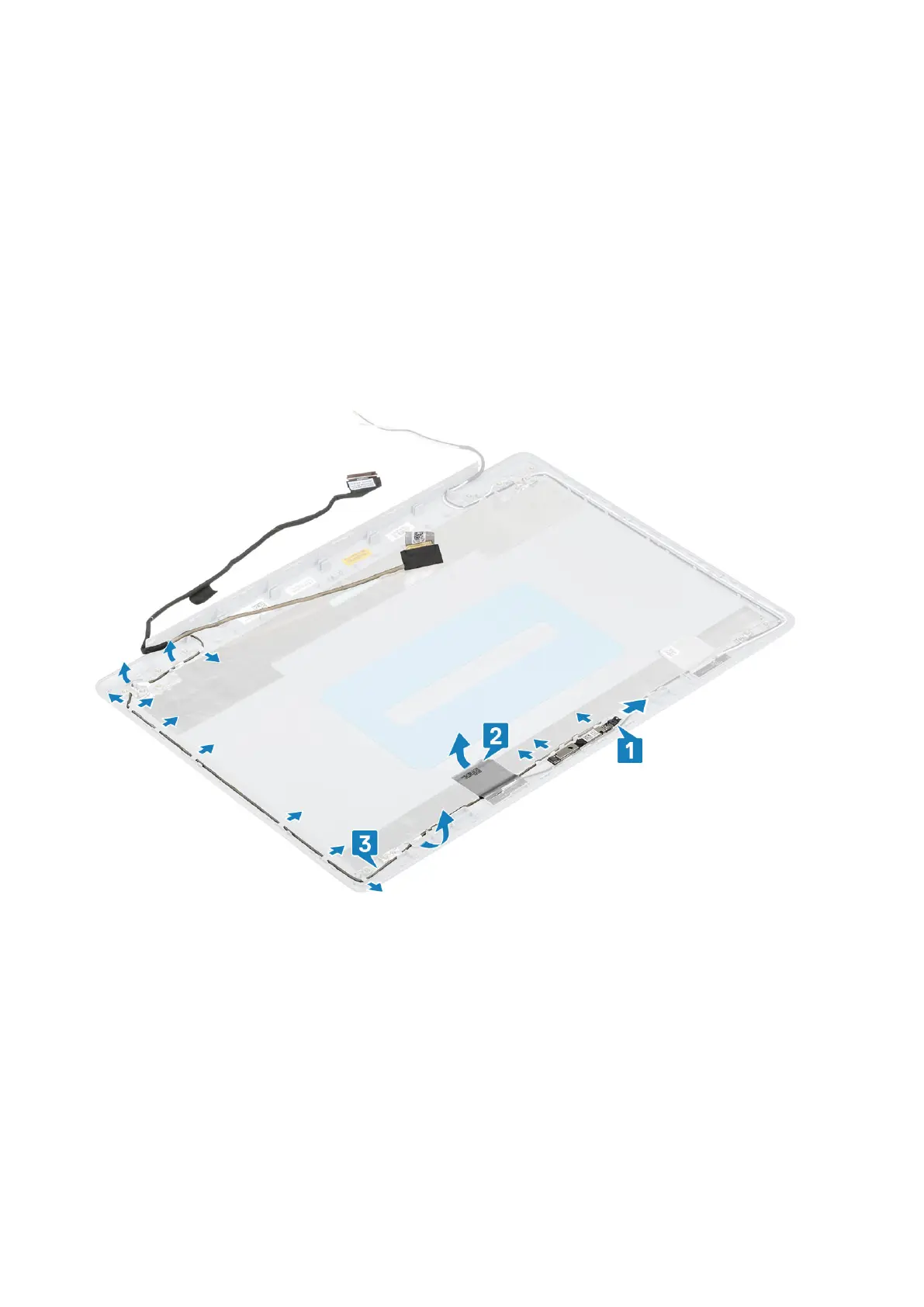

1. Remove the camera cable and the display cable from the routing guides on the display back-cover and antenna assembly [1].
2. Peel the adhesive that secures the camera cable [2].
3. Lift the camera cable and the display cable off the display back-cover and antenna assembly [3].
Installing the display cable
Steps
1. Place the display cable and camera cable on the display back-cover and antenna assembly [1].
2. Affix the adhesive that secures the camera cable [2].
3. Route the display cable and camera cable through the routing guides on the display back-cover and antenna assembly [3].
Removing and installing components
73
