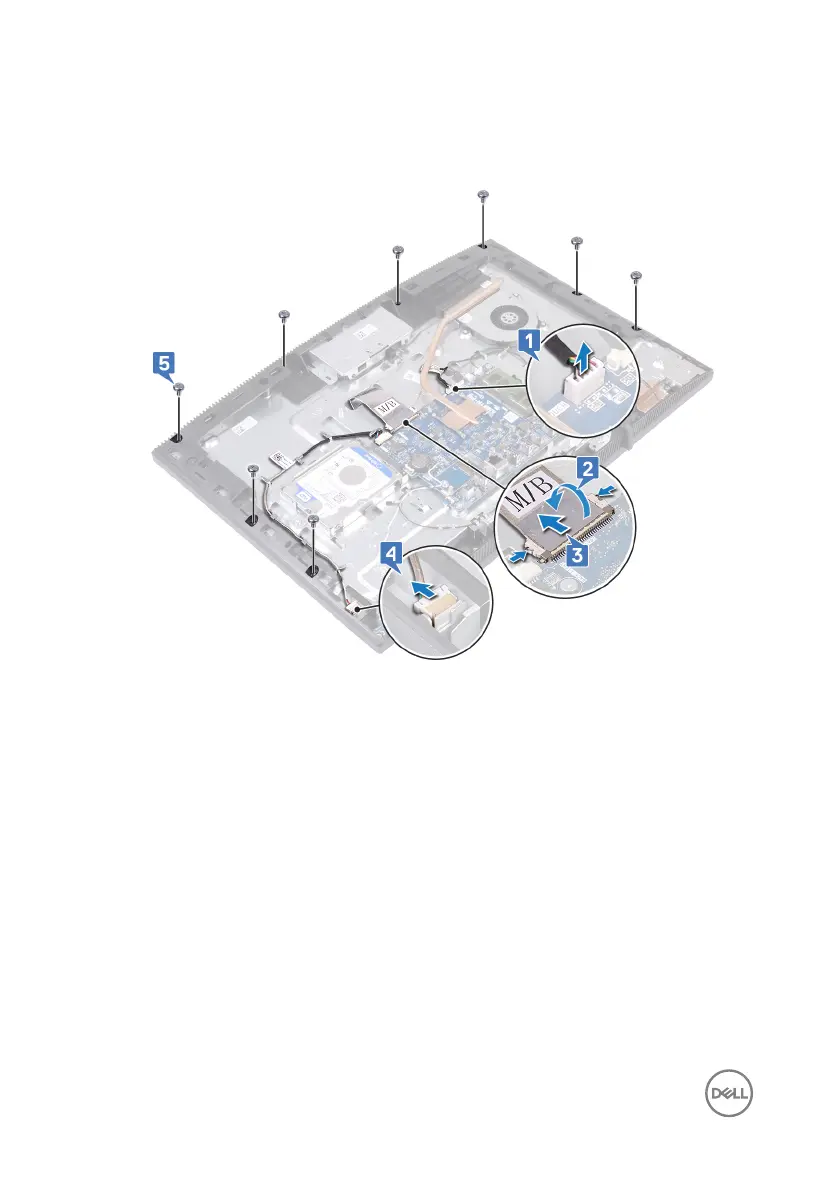

5 Remove the eight screws (M3x5) that secure the display-assembly base to the
display assembly.
6 Place the display-assembly base in its upright position.
7 Push the display panel away from the display-assembly base
8 Slide the display cable and the touch-screen cable (optional) through the slots on
the display-assembly base.
70
