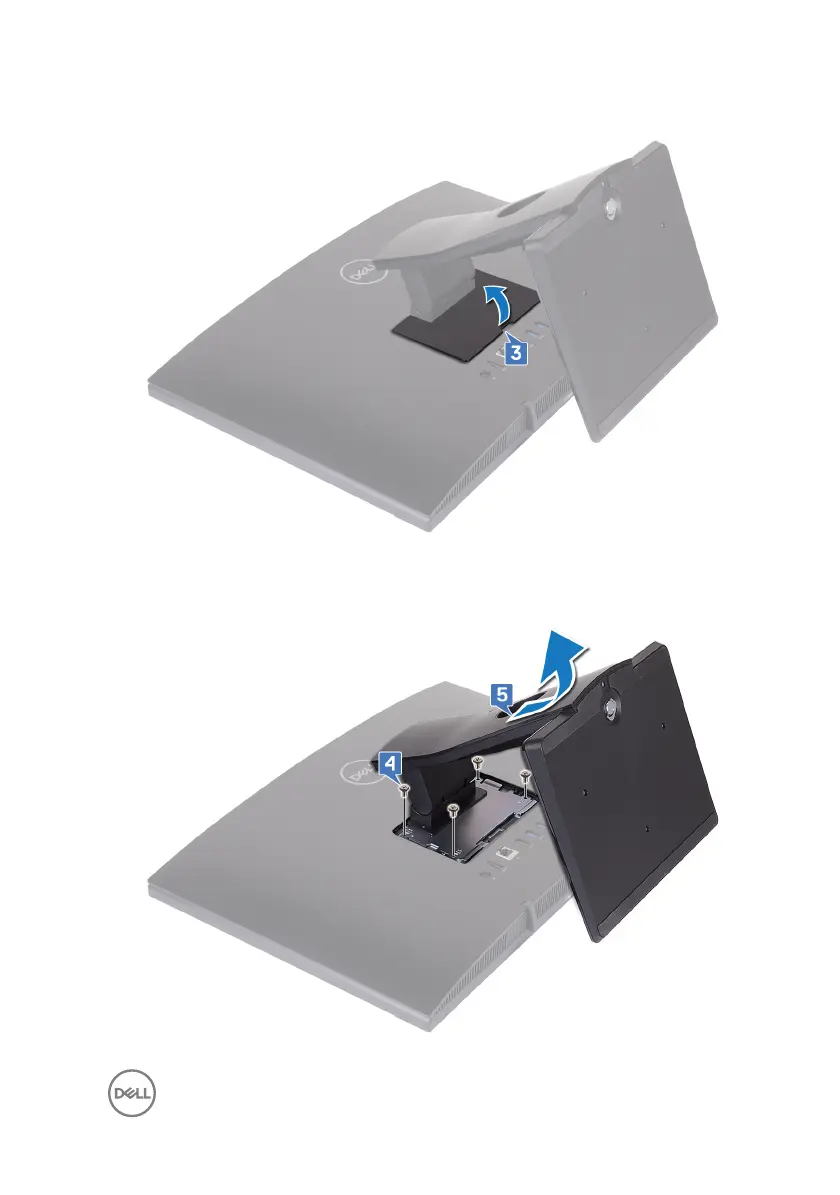

3 Using your ngertips, pry the stand cover o the back cover.

4 Remove the four screws (M3x5) that secure the stand bracket to the system-

board shield.

5 Lift the handle, and slide it out from the system-board shield.
