Dell W21C - Procedure

111 pages

Save Page as PDF

To Next Page

To Previous Page

Procedure

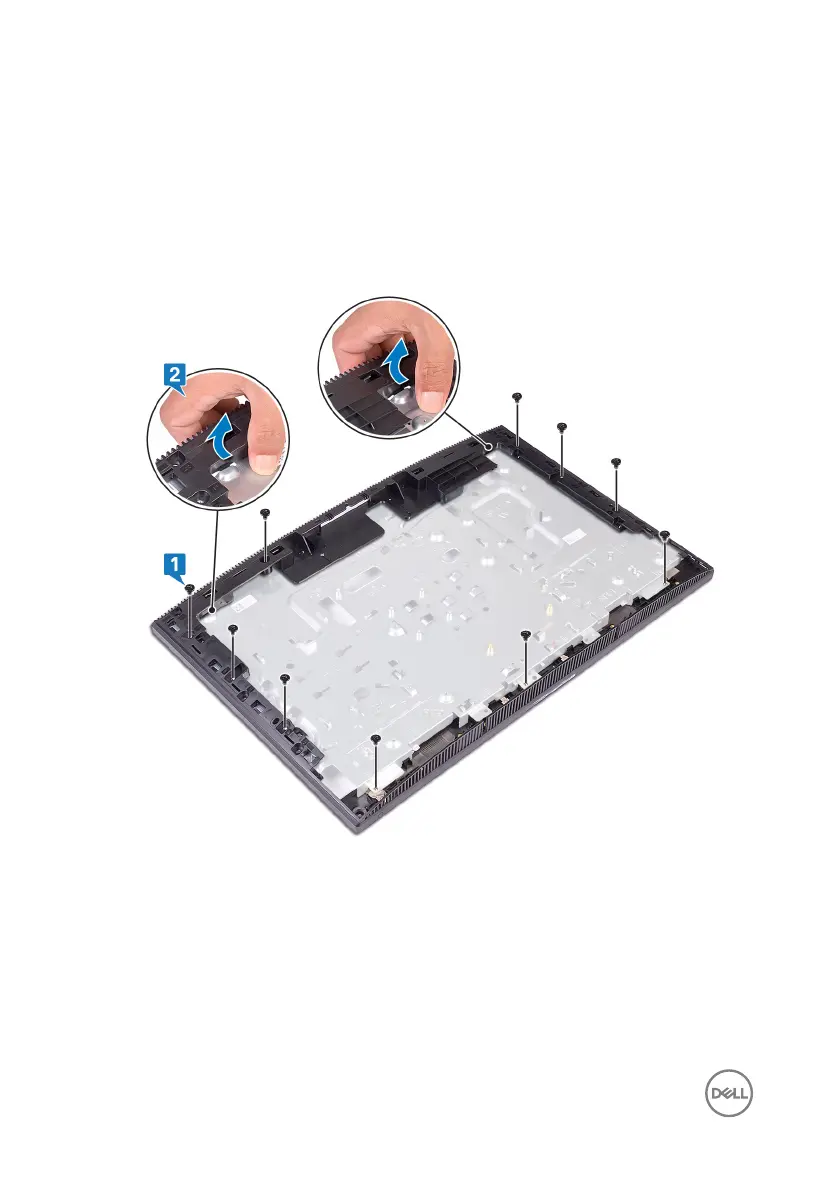

1 Remove the 13 screws (M3x5 black) that secure the middle frame to the display-

assembly base.

2 Slide and lift to release the tabs on the middle frame from the slots on the

display-assembly base from the top.
