Dell W21C - Procedure

111 pages

Save Page as PDF

To Next Page

To Previous Page

Procedure

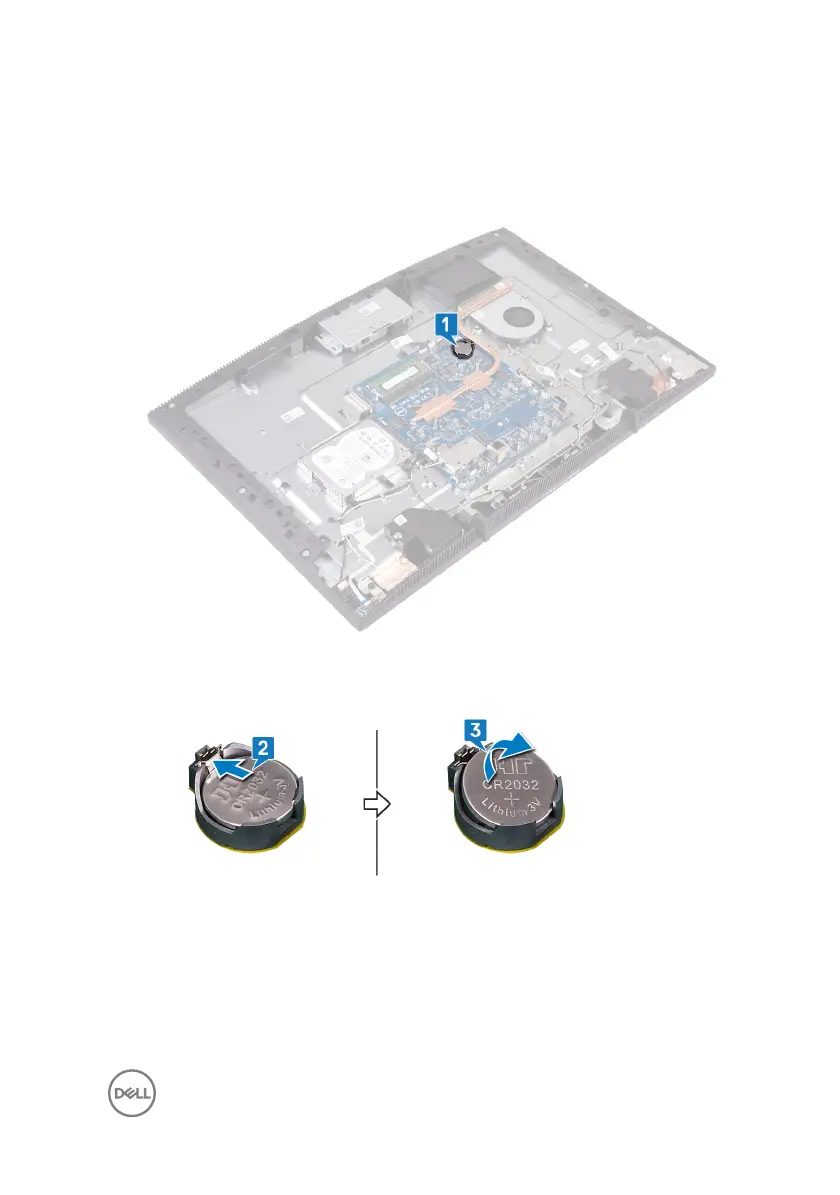

1 Locate the coin-cell battery on the system board.

2 Press the tab on the coin-cell battery socket until the coin-cell battery pops up.

3 Lift the coin-cell battery out of the coin-cell battery socket.
