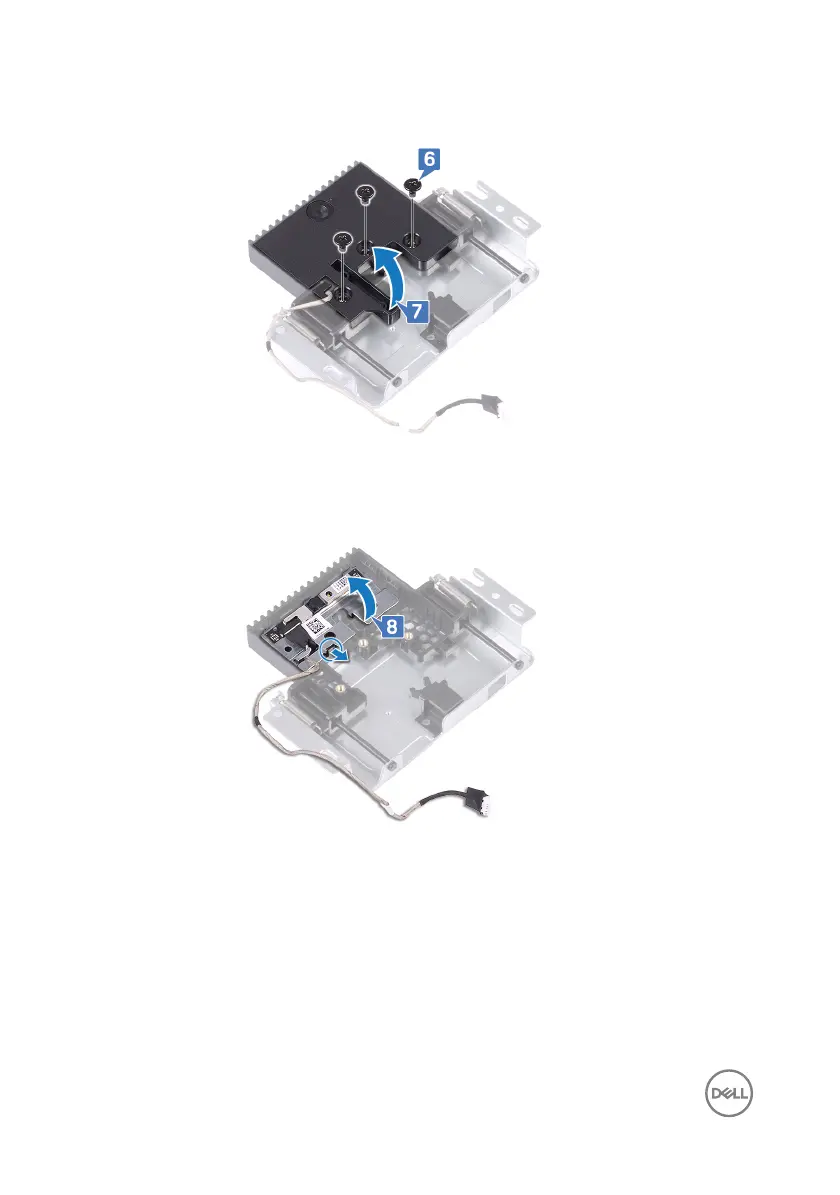

7 Lift the retractable-camera bezel o the retractable-camera assembly.

8 Pull the clip on the retractable-camera assembly, and rotate the camera and

camera bracket along with the camera cable, o the retractable-camera

assembly.
