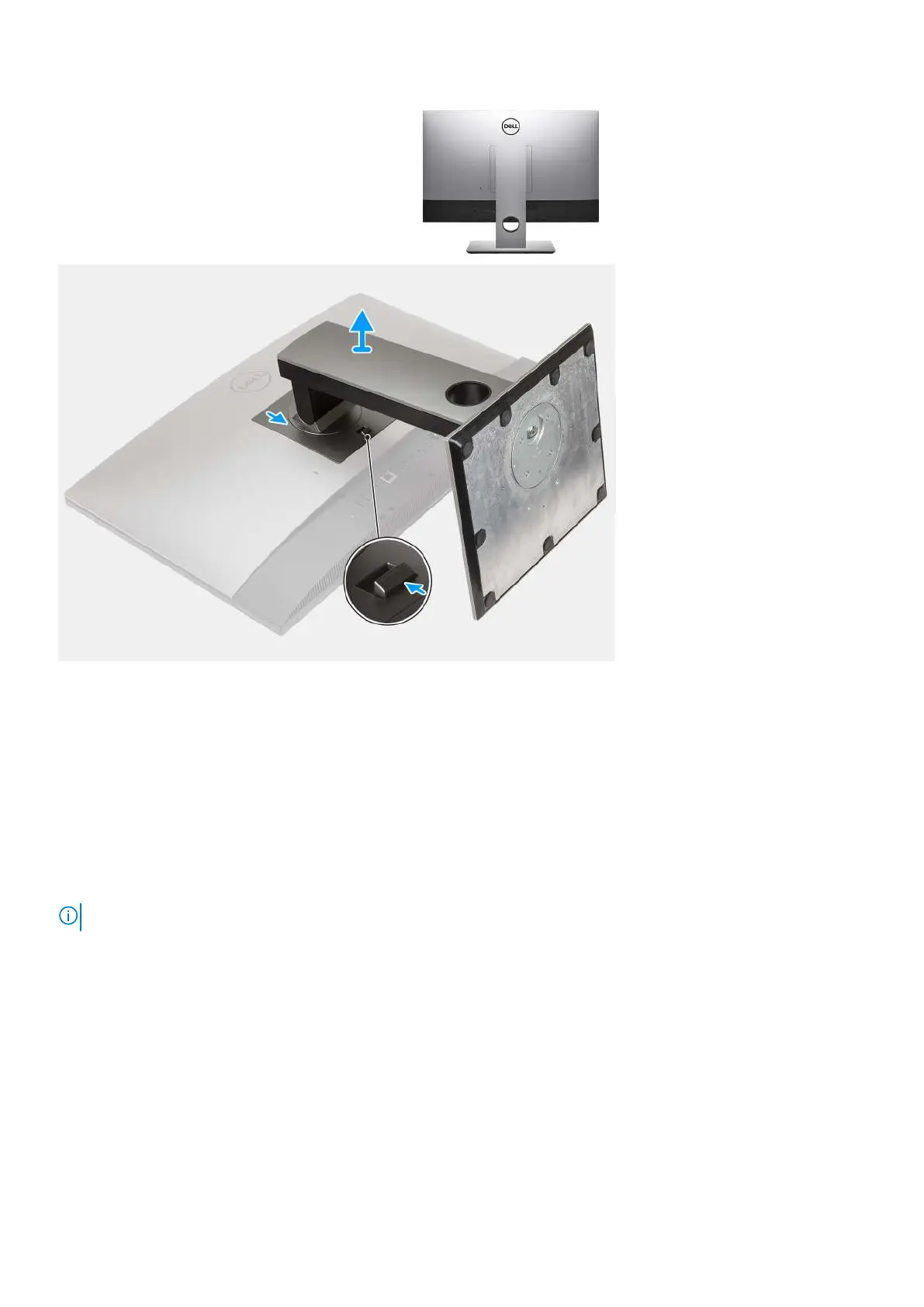

Steps
1. Press and slide the release button up.
2. Hold the button in the release position, and lift the stand upward.
3. Slide the stand downward, to lift the stand off the back cover.
Installing the height adjustable stand
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: Follow the same procedure to install the Height Adjustable Stand with Optical Disk Drive.
About this task
The following image provides a visual representation of the height adjustable stand installation procedure.
18
Removing and installing components
