Steps
1. Place the back cover on the middle frame and system-board shield and align the tabs on the back cover with the slots on the
middle frame.
2. Slide the back cover to lock the release tab under the latch on the system-board shield.
Next steps
1. Install the cable cover (optional).
2. Install the stand.
3. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the cable cover (optional).
4. Remove the back cover.
About this task

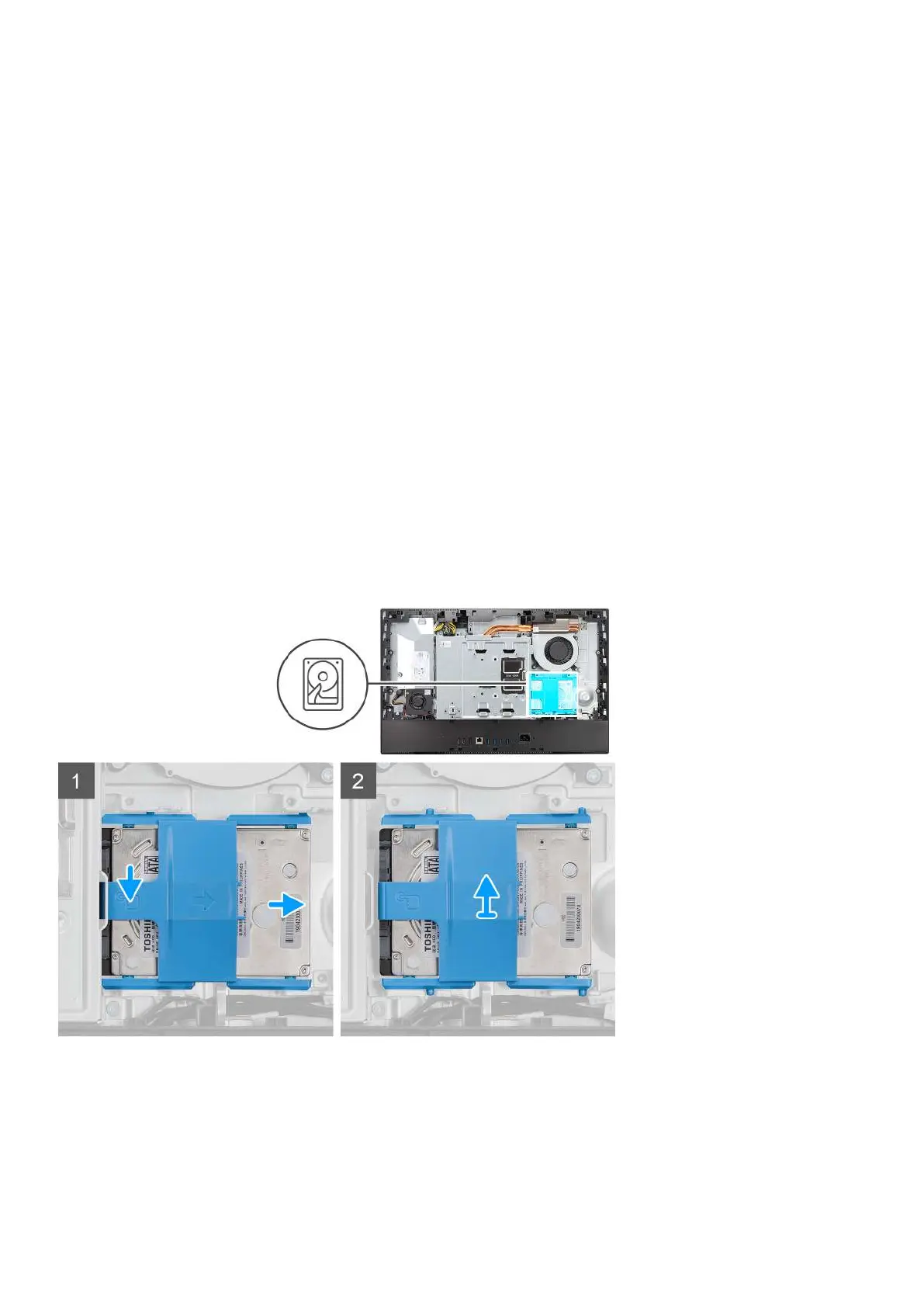

The following image indicates the location of the hard drive and provides a visual representation of the removal procedure.
Removing and installing components
25
