16 Setting Up Your TV
www.dell.com | support.dell.com

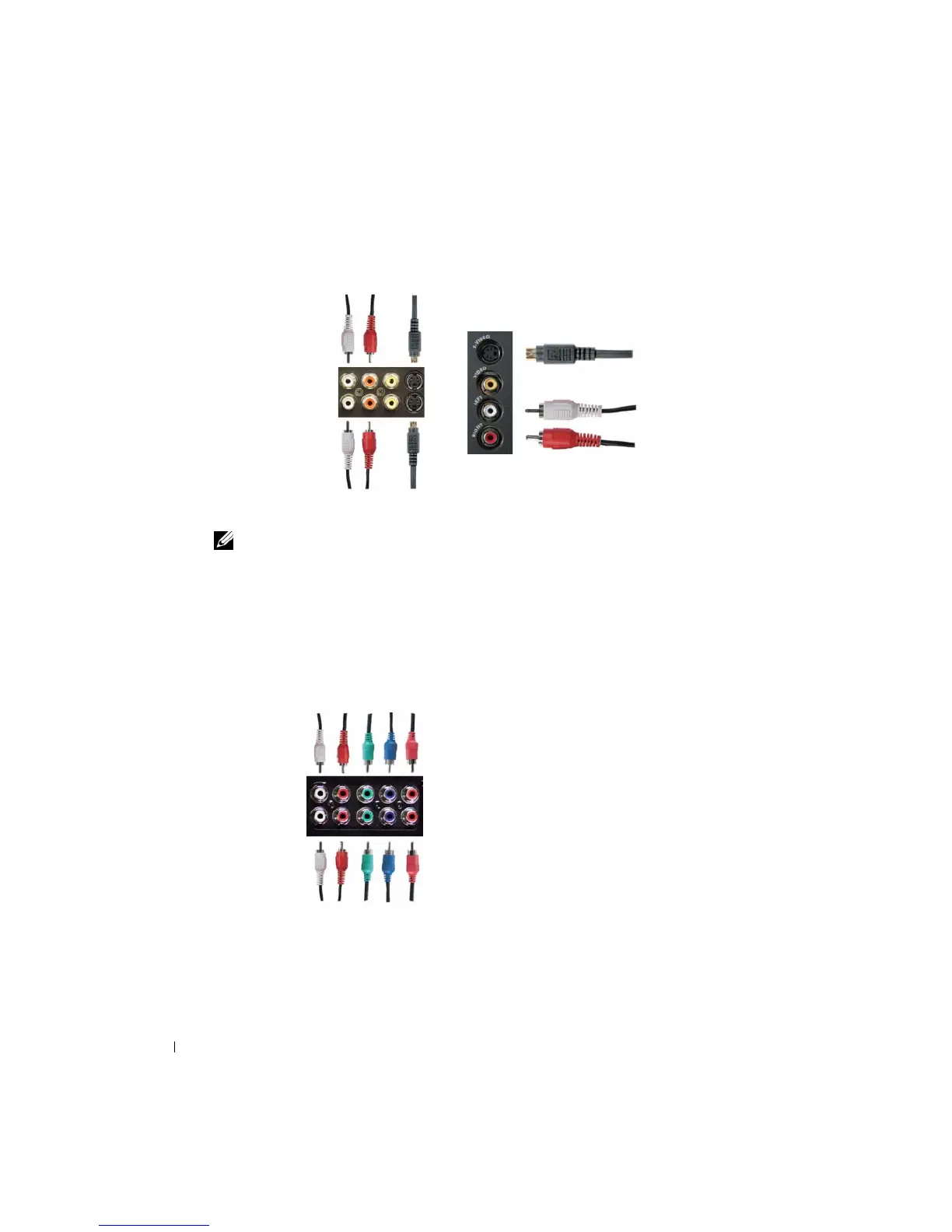

Using the S-Video Connector
1
Turn off the TV and unplug the power cord.
NOTE: If you are connecting a device that you want to be able to remove, such as a video game system,
or a camera, use the S-Video connector on the left side of the TV (see "Left View" on page 6).
2
Connect your device using the S-Video and audio cables.
3
Plug in the power cords for the TV and devices and turn them on.
4
Enter the TV Menu and select
AV1 (S-Video 1)
,
AV2 (S-Video 2)
or
AV SIDE (S-Video 3)
.
See "
Input Select
" on page 26 for more information.
Using the Component Connectors
1
Turn off the TV and unplug the power cord.
2
Connect your device using the component video and audio cables.
3
Plug in the power cords for the TV and devices and turn them on.
4
Enter the TV Menu and select the
AV3 (Component 1)
or
AV4 (Component 2)
. See "
Input
Select
" on page 26 for more information.
