Dell XPS L701X User Manual

I/O Board 113
Replacing the I/O Board
1 Follow the instructions in "Before You Begin" on page 9.
2 Align the connectors on the I/O board with the slots on the top cover and
place the I/O board on the top cover.
3 Press the I/O board down to connect it to the system-board connector.
4 Replace the three screws that secure the I/O board to the top cover.
5 Connect the speaker cable to the connector on the I/O board.
6 Follow the instructions from step 11 to step 15 in "Replacing the Top
Cover" on page 84.
7 Replace the bluetooth card (see "Replacing the Bluetooth Card" on
page 56).
8 Replace the Mini-Card(s) (see "Replacing the Mini-Card(s)" on page 23).

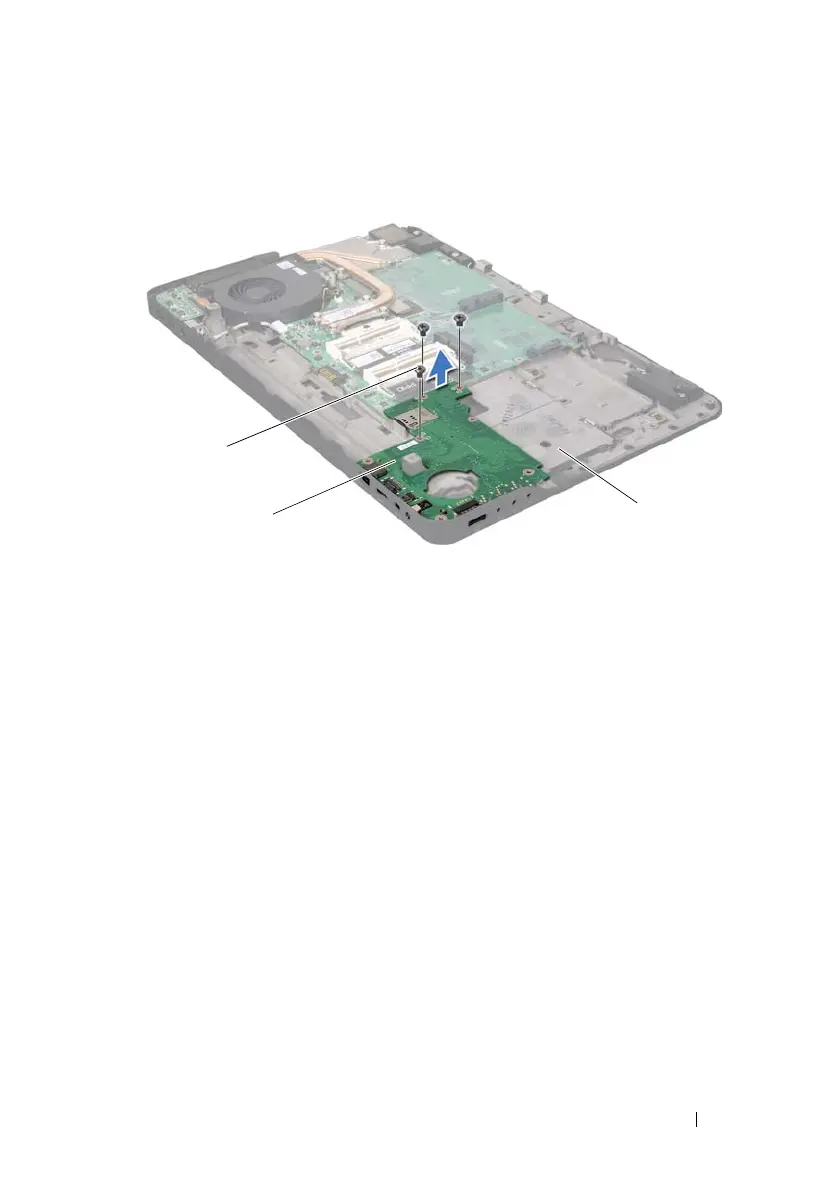

1 screws (3) 2 I/O board
3 top cover
1
2
3

Dell XPS L701X Specifications

General

Chipset	Intel HM57 Express
Webcam	2.0 MP HD Webcam
Processor	Intel Core i7-740QM
Display	17.3 inch HD+ WLED (1600 x 900) or Full HD (1920 x 1080)
Graphics	NVIDIA GeForce GT 435M
RAM	Up to 8GB DDR3
Storage	Up to 1TB HDD
Operating System	Windows 7 Home Premium, Professional or Ultimate (64-bit)
Optical Drive	DVD+/-RW or Blu-ray Disc
Battery	6-cell or 9-cell Lithium-Ion
Audio	JBL speakers with Waves MaxxAudio
Networking	10/100/1000 Gigabit Ethernet
Ports	HDMI, RJ-45
Weight	3.47 kg (7.64 lbs)
Wireless	Intel Centrino Advanced-N 6200
