Keyboard 45
13
Lift the keyboard off the top cover.
Replacing the Keyboard
1
Follow the instructions in "Before You Begin" on page 9.
2
Slide the keyboard cable into the system-board connector and press down
on the connector latch to secure the cable.
3
Slide the keyboard backlight cable into the system-board connector and
press down on the connector latch to secure the cable.
4
Slide the tabs on the keyboard into the slots on the top cover and lower the
keyboard into place.
5
Replace the four screws that secure the keyboard to the top cover.

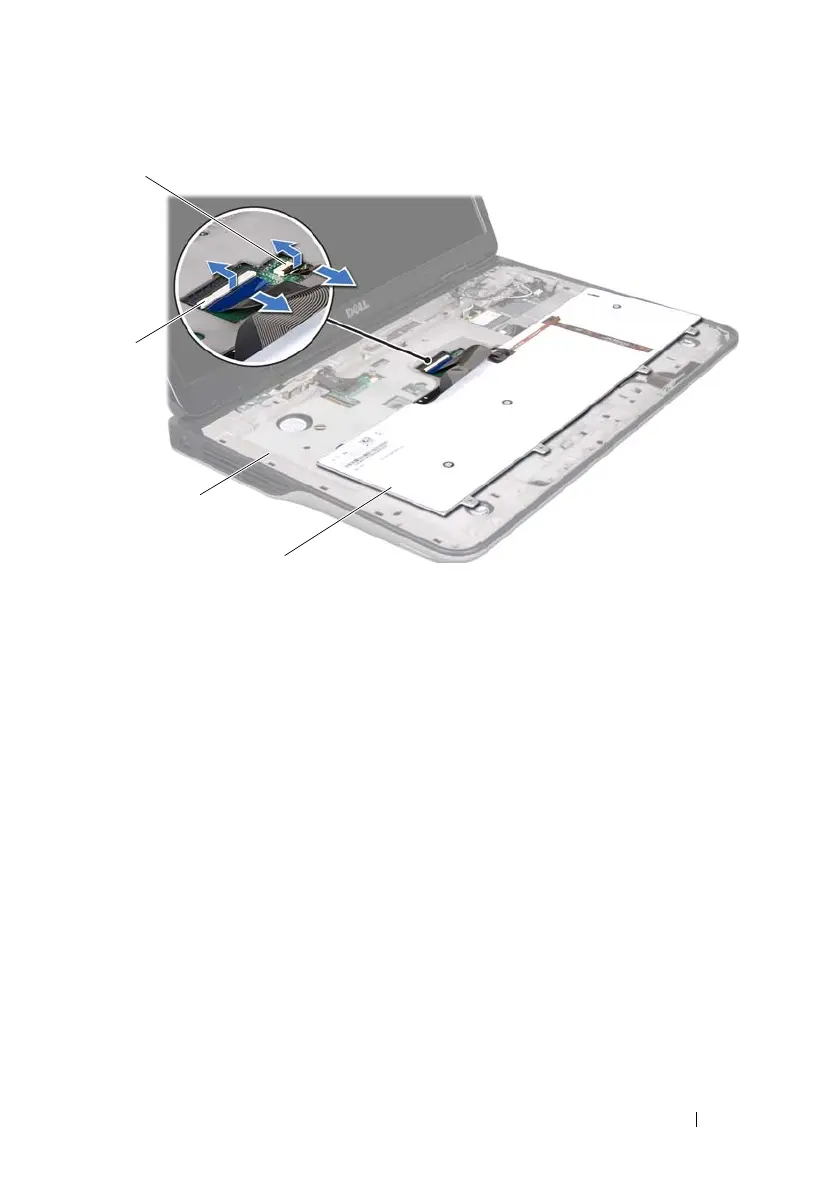

1 keyboard backlight cable connector 2 keyboard cable connector
3 top cover 4 keyboard
