Display 65
2
Remove the display assembly (see "Removing the Display Assembly" on
page 59).
3
Remove the display bezel (see "Removing the Display Bezel" on page 63).
4
Remove the camera module (see "Removing the Camera Module" on
page 73).
NOTE: The touch screen board is optional and may not be present in your
computer.
5
Pull the pull-tab to disconnect the touch-screen board cable from the
connector on the touch-screen board.
6
Remove the 12 screws that secure the display panel to the display back
cover.
7
Note the routing of the antenna cables and remove them from the routing
guide on the right display hinge.
8
Note the routing of the display cable and remove it from the routing guide
on the left display hinge.

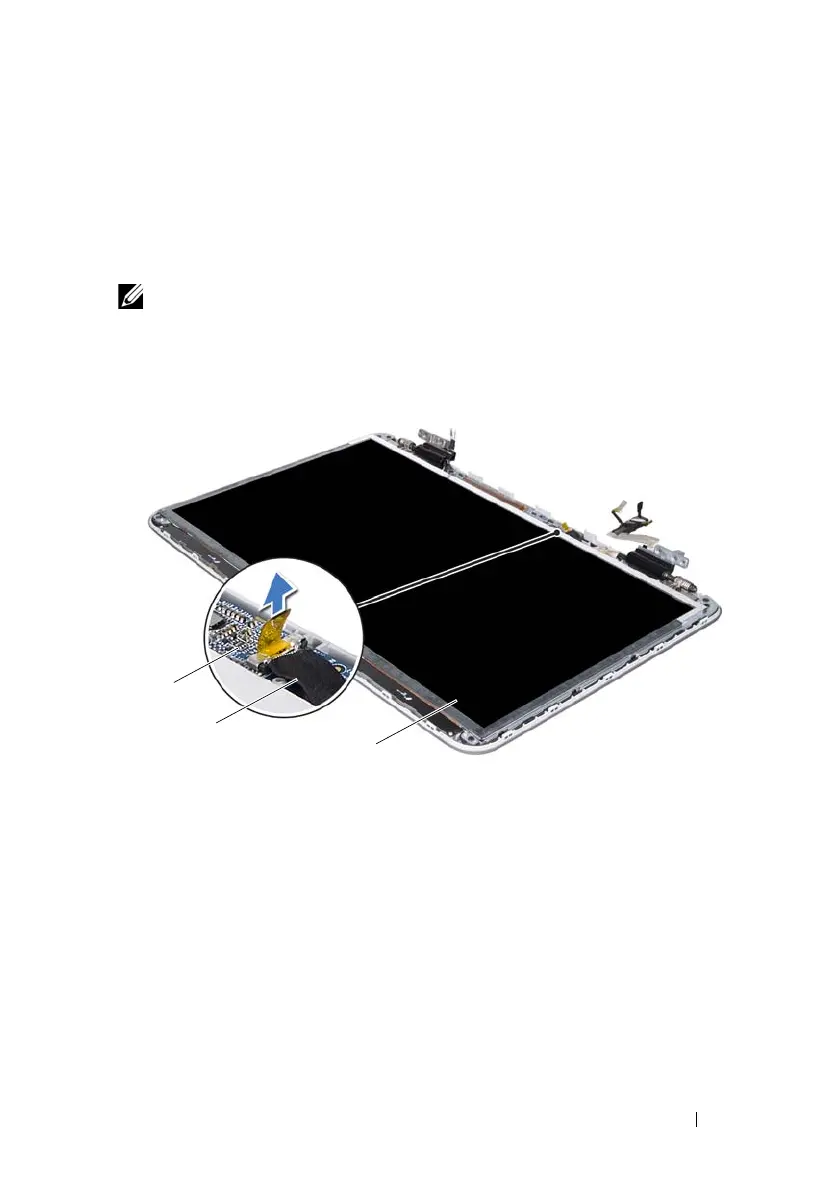

1 touch-screen board 2 touch-screen board cable
3 display panel
