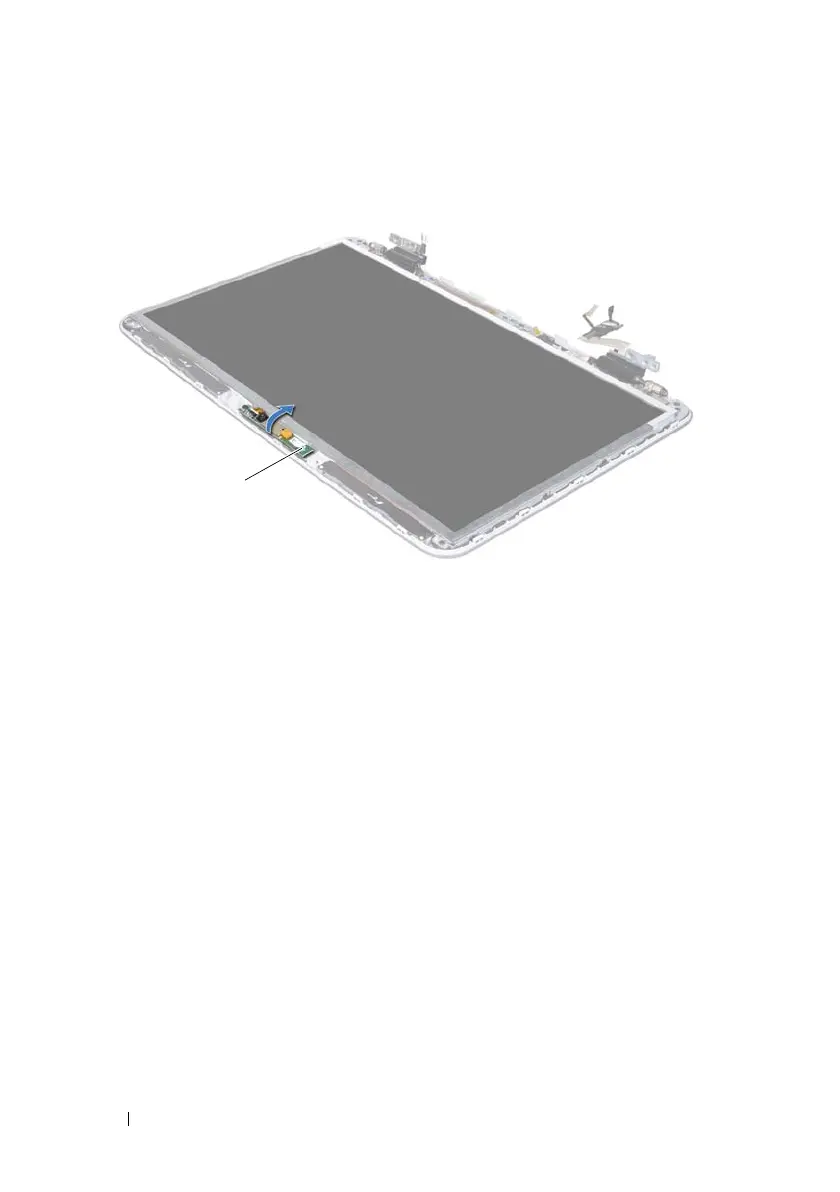

74 Camera Module

Carefully lift the camera module off the display back cover.

Gently peel the tape that secures the camera cable to the camera module.

1 camera module
