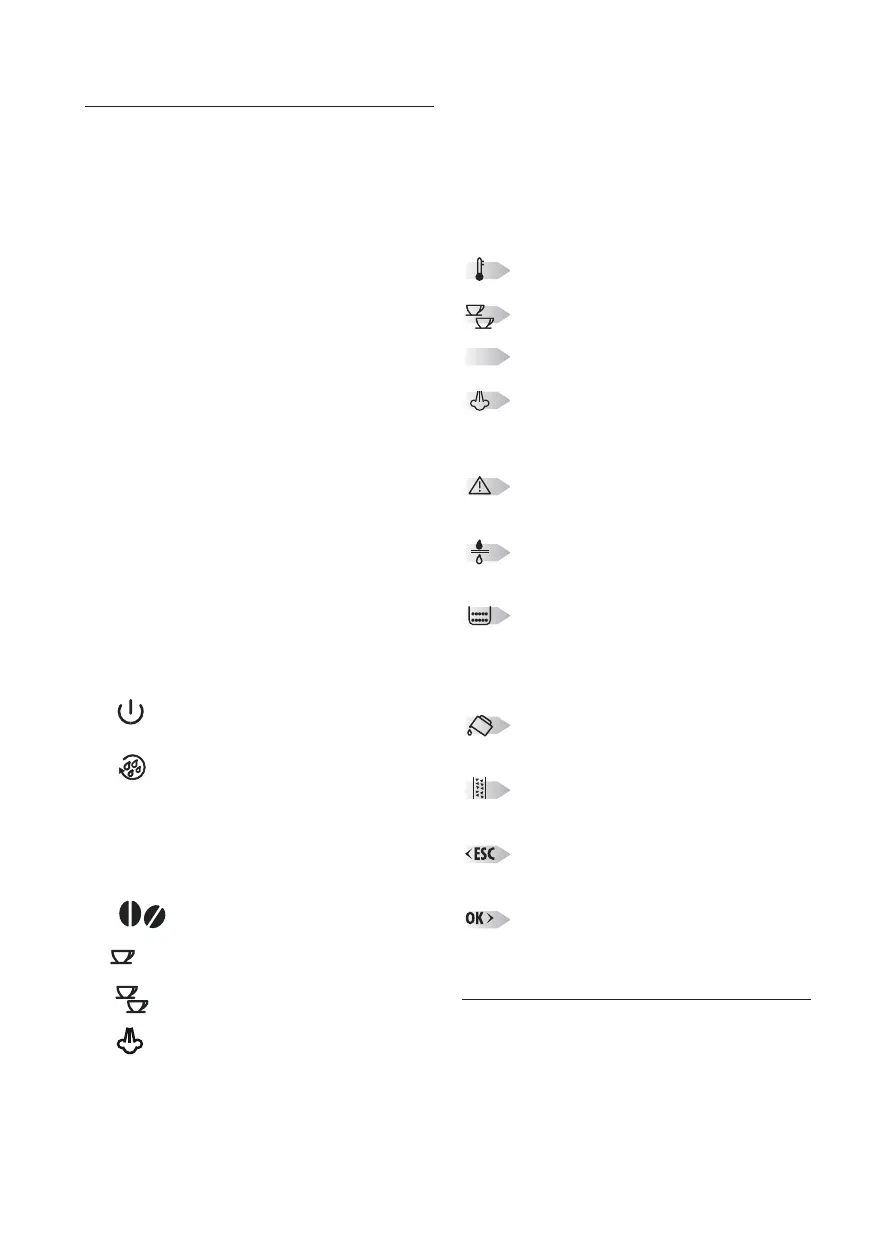

Page #4 background imageLoading...
Page #4 background image
9
DESCRIPTION
Description of the appliance
(page 3 - A )
A1. Control panel
A2. Grinding adjustment dial
A3. Cup shelf
A4. Beans container lid
A5. Pre-ground coee funnel lid
A6. Pre-ground coee funnel
A7. Beans container
A8. Main switch
A9. Water tank
A10. Infuser door
A11. Infuser
A12. Coee spout (adjustable height)
A13. Coee grounds container
A14. Condensate tray
A15. Cup tray
A16. Drip tray water level indicator
A17. Drip tray
A18. Cappuccino maker
A19. Steam/hot water dial
Description of the control panel
(page 2 - B )
A number of buttons on the control panel have a double function.
This is indicated in brackets in the description.
B1. Lights.
B2.
button: turns the appliance on and o.
B3. P button to access the menu.
B4.
button: to perform a rinse cycle.
(When in the settings MENU, it acts as the “ESC” button
to exit from the selected function and go back to the main
menu)
B5. Selection dial: turn to select the required quantity of cof-
fee. (When in the settings MENU, turn to select the required
function).
B6.
aroma selection button: to select the coee
taste.
B7.
button: to make 1 cup of coee with the settings
displayed.
B8.
button: to make 2 cups of coee with the settings
displayed.
B9.
button: to deliver steam to make cappuccino and
milk-based drinks. (When you access the MENU: “OK” but-
ton to conrm the selection made)
Description of the accessories
(page 2 - C )
C1. Measure
C2. Cleaning brush
C3. Descaler bottle
C4. Water softener lter (certain models only)
Description of the lights
E
Light ashing: the machine is heating up or a rinse
cycle is underway.
E
The appliance is delivering two cups of coee.
E
”Energy Saving mode is active.
E
Light on steadily: the steam” function has been
selected;
Light ashing: you must turn the steam dial.
E
An alarm is displayed on the control panel (see the sec-
tion: “Explanation of the lights”).
E
Light ashing: the water softener lter must be
replaced.
E
Light on steadily: the coee grounds container is miss-
ing and must be inserted;
Light ashing: the coee grounds container is full and
must be emptied.
E
Light on steadily: the water tank is missing;
Light ashing: there is not enough water in the tank.
E
Light ashing: the appliance must be descaled (see the
section “Descaling”).
E
Indicates the button to press to exit the settings menu
or selected function.
E
Indicates the button to press to conrm the function
selected in the settings menu.
BEFORE USE
Checking the appliance
After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present. Do
not use the appliance if it is visibly damaged. Contact De’Longhi
Customer Services.
