17
L
H

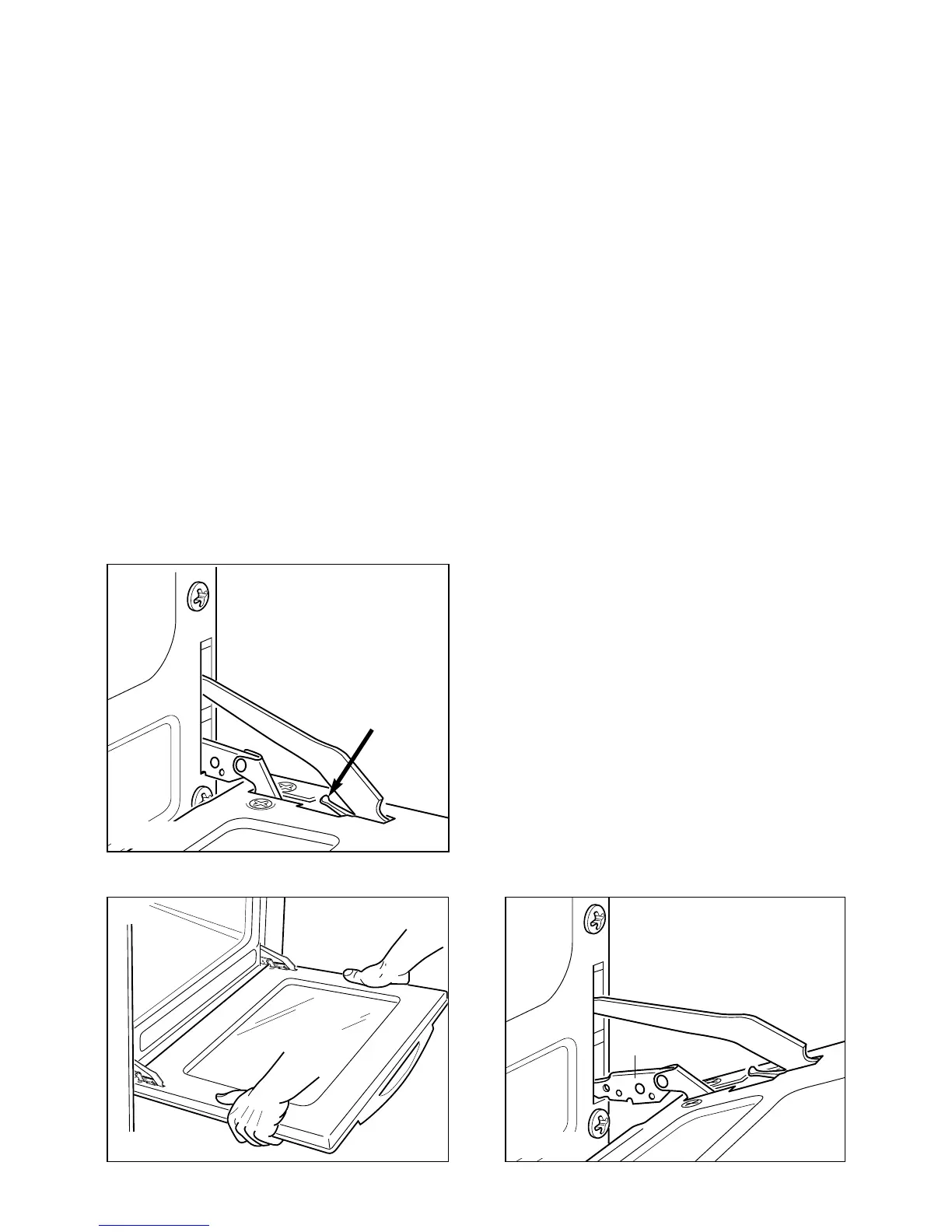

Removing the oven door
To facilitate oven cleaning, it is possible to remove the door.
Please follow the instructions carefully:
●
Open the door completely.
●
Push down the lever “L” and, keeping it in this position, slowly close the door in order to
block the hinge (fig. 15).
●
Grip the door (as indicated in fig. 16) and, while closing it, release the two hinges as
shown in fig. 17.
Door assembly
●
Grip the door with your hands placed near the hinges and raise the levers “H” with your
forefingers (fig. 17)
●
Insert the hinges in their position until levers “H” are hooked.
●
Open the door completely to obtain the release of levers “L”.
Fig. 15
Fig. 16 Fig. 17
