Conversion to LPG
Fig. 25
M
J
A
2 -Adjusting of primary air
of the top burners
By operating the screw “M”, reset the air
adjuster “A” according to the instructions see
“Injector table”, where the distance between
injector and air adjuster is recommended (in
mm).
Before lowering the hob top, set the burners
on their sites and light them in order to check
whether the flames are correct, as per the
specifications given in the next page. In case
of uncorrect flame, lift or lower the air
adjuster.
1 -

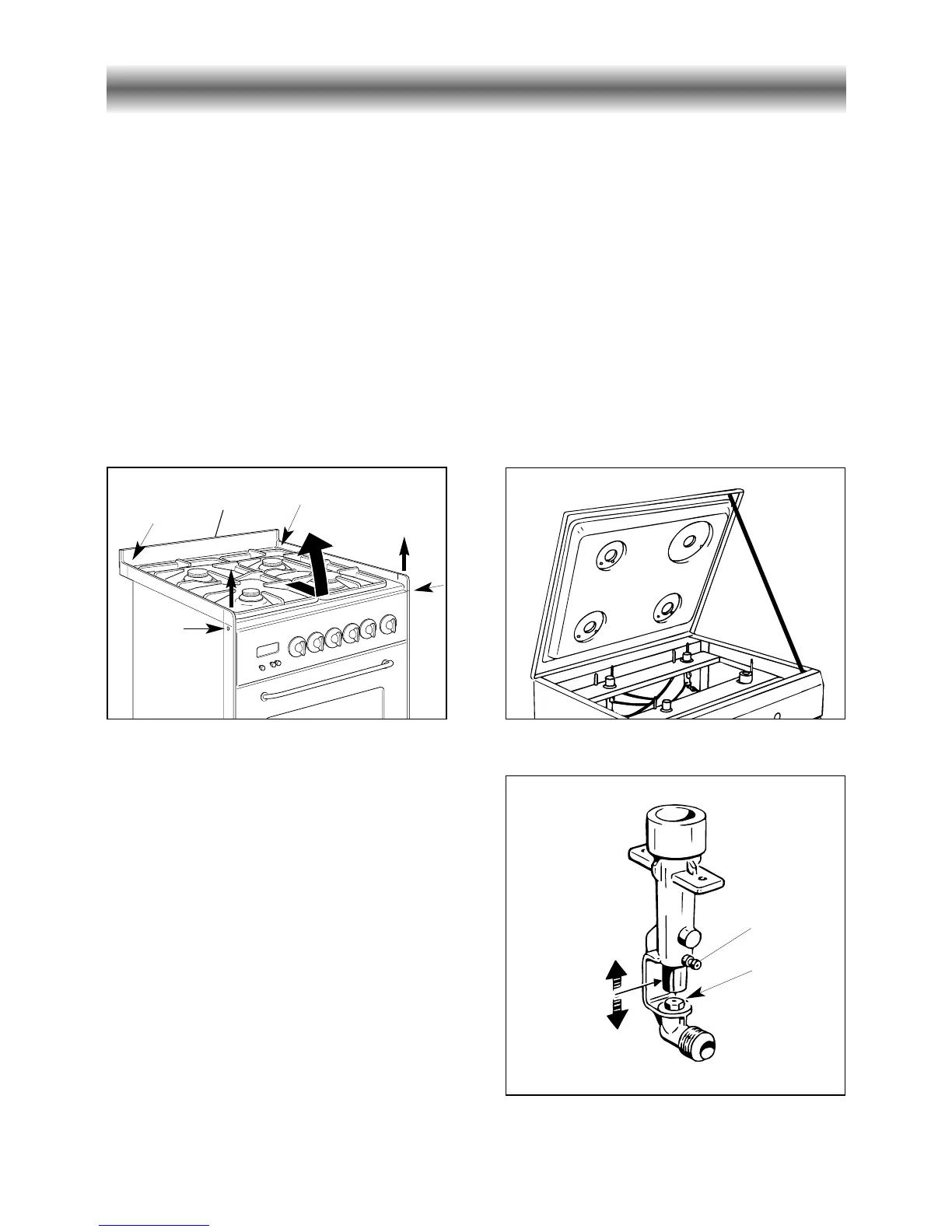

Injectors replacement of top burners
To replace the injectors it is necessary to lift the hobtop and proceed as follows:
– Remove pan-supports and burners from the hobtop.
– Remove the backguard “E”.
– Unscrew the two screws “B” and remove the sockets (Fig. 23).
– Unscrew the two screws “C” and remove the two side trims and joints pulling upwards.
– Pull forwards the hobtop to release it, then lift following arrow “D” (Fig. 23)
– Hold the hobtop open by a support (Fig. 24).
– Fully raise the adjusting air tube A (fig. 25) in order to easily reach the injector.
– By an angle 7 spanner, remove the injector from its housing and replace it by the proper
one according to the kind of gas (see following tables - page 25).
Fig. 24
C
C
B
B
D
E
Fig. 23
To Next Page
