4 - Replacement of the oven burner injector
According to the type of gas, the oven injector must be similarly replaced, as stated on the
“Injector table”, operating as follows:
– remove the oven bottom
– unscrew the burner fixing screw (Fig. 27)
– slip the burner itself from the oven (Fig. 28). Take care not to damage the wire to the igni-
tion electrode and the safety valve probe.
– remove the injector from the connection and replace it with the correct one (fig. 28).
5 - Replacement of the grill burner injector
– remove the grill burner by unscrewing the front screw (fig. 29).
– Gently suspend the burner as shown in figure 30. Take care not to damage the wire to the
ignition electrode and the safety valve probe.
– remove the injector from the connection and replace it with the correct one (fig. 30).

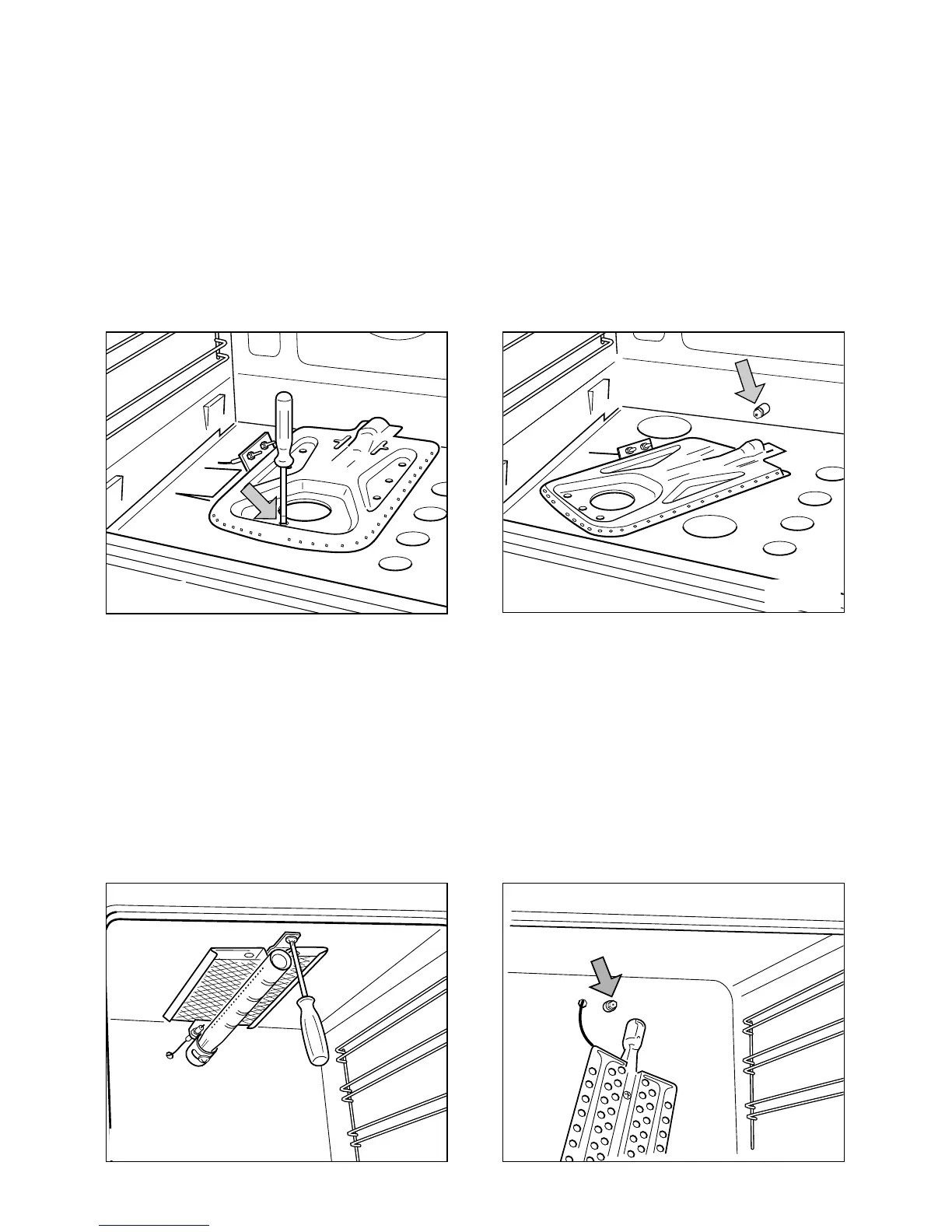

Fig. 27
Fig. 28
Fig. 29 Fig. 30
