28
8 - Regulating of the oven minimum
This adjustment is for the oven burner only (as the grill burner is fixed input) operating on the
thermostat as follows:
– Light the oven taking the knob to Max. position.

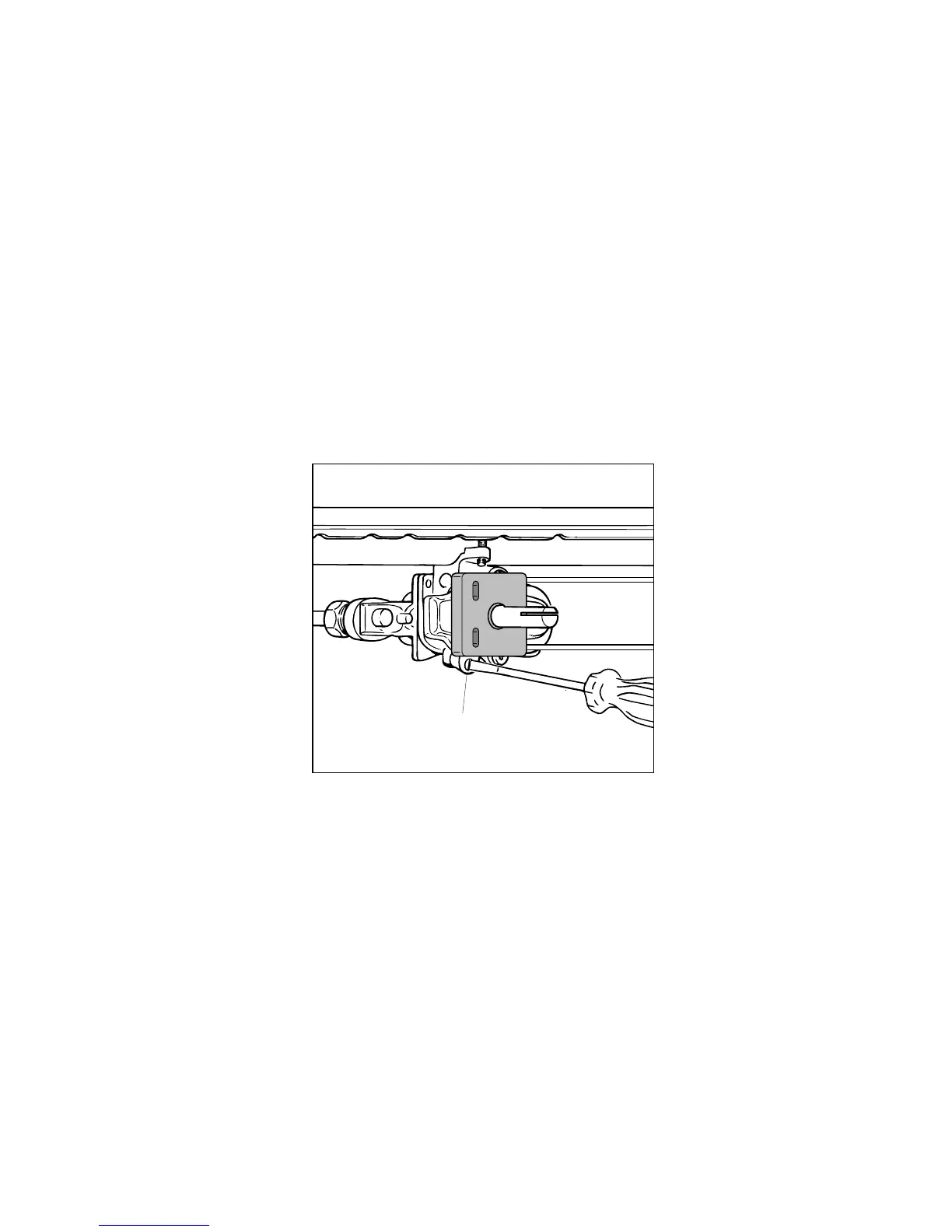

– remove the knob and by a thin screwdriver (3 mm section - 100 mm long) unscrew
about a half turn the screw by-pass “G’, passing through the front panel hole (fig. 33)
– fit the knob and let the oven heat for 10 minutes, then take the knob to position 130
allowing the thermostat to work under by-pass.
– after further removal of the knob, stop slowly the screw by-pass “G” (being careful not to
turn the knob rod) until the flame reaches 3-4 mm high.
N.B. For LPG the by-pass screw must be fixed thoroughly.
G
Fig. 33
