DeLonghi GSS603 - Adjusting Primary Air Flow; Oven Burner Primary Air Adjustment; Grill Burner Primary Air Adjustment

28

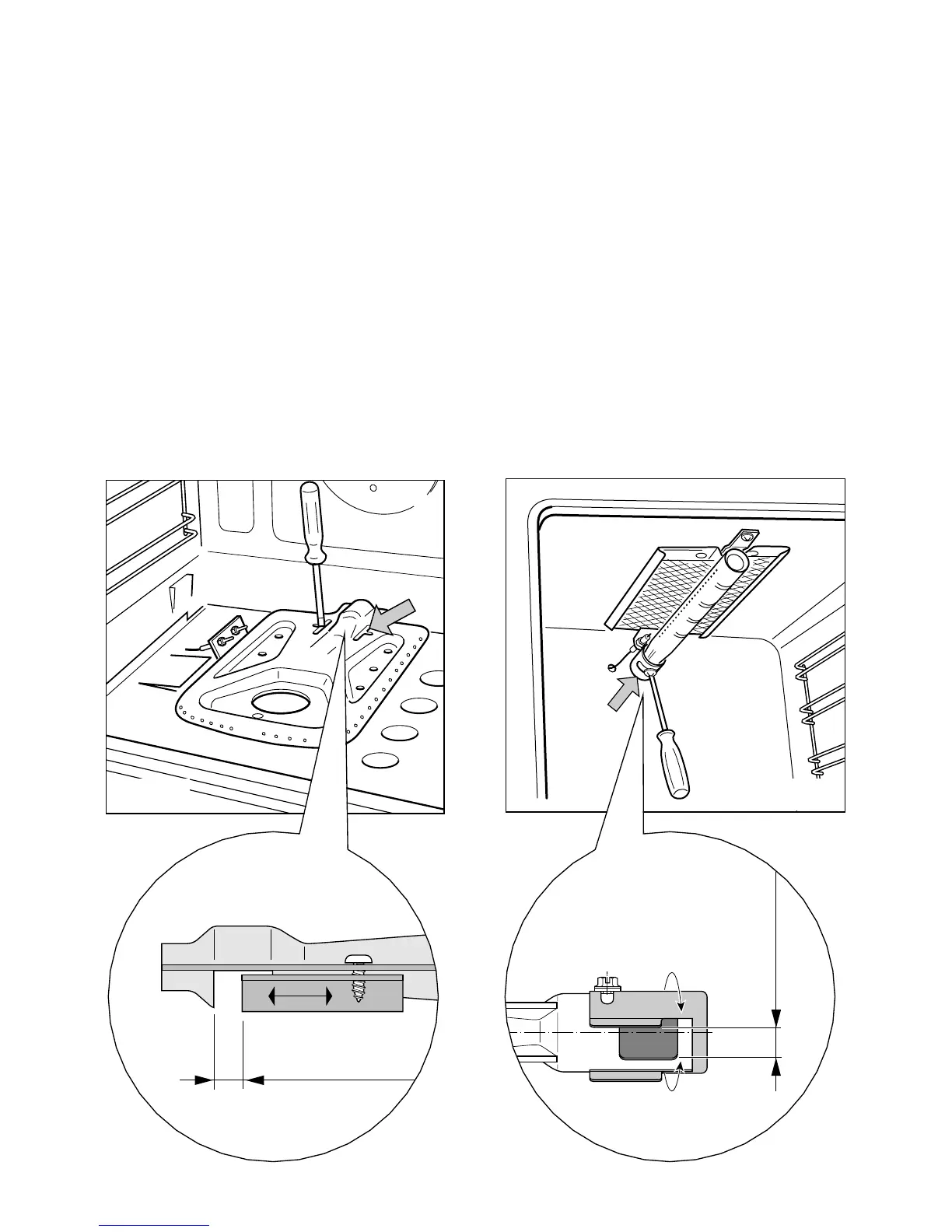

7 - Primary air of the grill burner
With a screwdriver untighten the screw (fig. 33) and turn the air ring to close or open the air
flow, according to the “Injector table”.
Light the burner and check the flames.
Fig. 33
6 - Primary air of the oven burner
With a screwdriver untighten the screw (fig. 32) and move the air ring forward or backward
to close or open the air flow, according to the “Injector table”.
Light the burner and check the flames.
Fig. 32
Ring opening
(see “Injector Table”)
Ring opening
(see “Injector Table”)
