DELTA DORE TYBOX 117 Quick Start Guide

PROG
1
3
4
2
STOP
Alkalines 1,5V
LR03 (AAA)
6h 8h
24h0h
17h 23h
COPY
2 7
OR
2 7
>3s
EXIT
EXIT
PROG x1
PROG x7
1
3
2
PROG x 1
PROG x 7
A
B
131 112 2012 ...
18/02/2012
00.00
Press the buttons or to
create your different Economy
or Comfort periods.
Setback period Comfort period
Press
until 06.00.
Press
until 06.00.
Press
until 08.00.
Press
until 08.00.
Press
until 17.00.
Press
until 17.00.
Press
until 23.00.
Press
until 23.00.
Press
until 00.00.
Press
until 00.00.
Conrm
To exit the mode,
turn the selector dial.
Repeat for each
day of the week.
To exit the mode,
turn the selector dial.
Conrm
OR
Conrm and continue on to the next day to program
it separately or conrm the program and copy it to
the next day.
Hold down the OK button for 3 seconds to
conrm the programme you have created
and copy it to the next day.
Repeat for each day of the week.
This mode protects your home from frost if you are absent for several days.
Turn the selector dial
and enter the return date.
When the batteries symbol appears. you have
approximately 1 month to change the batteries
(2 1.5 V LR03 or AAA alkaline batteries).
You have approximately 30 seconds to change
the batteries before the time setting is reset
(if this happens, reprogramme the date and time).
This mode is used to switch your heating
installation off. Turn the selector dial to
.
In this mode, the device displays the room
temperature.
Enter the return date
The Frost Protection
setting is adjustable
(§ «Setting
temperatures»).
The programme begins
on day 1 (Monday) and at 00:00.
1 : Monday,
•
•
•
7 : Sunday,
Turn the selector dial to PROG.

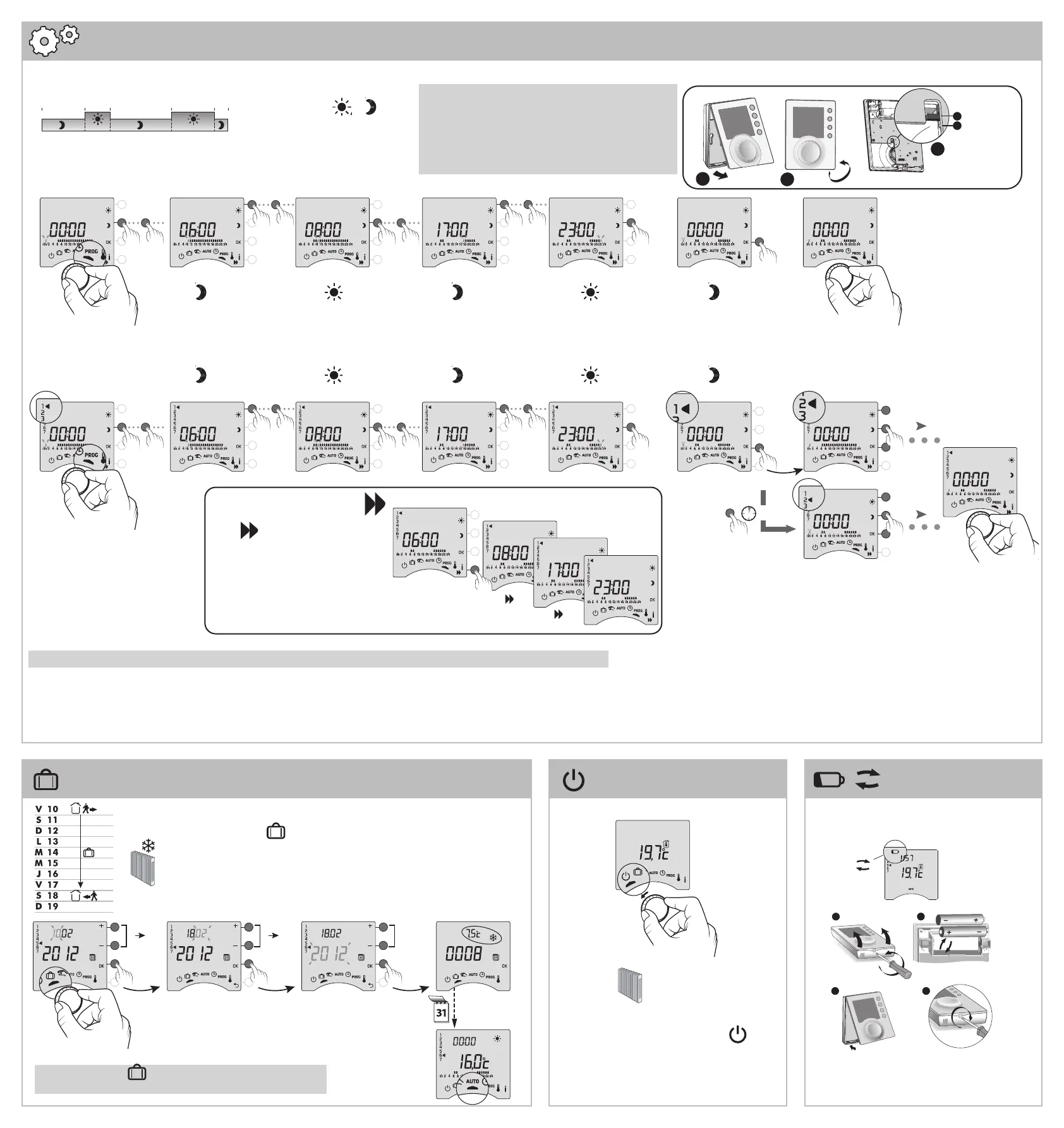

1. Create your 24-hour programme
2. Check your program
Press
to check the Comfort and
Economy periods you have created.
Press OK to check the next day.
Exemple : Comfort from 6:00 to 8:00 and from 17:00 to 23:00
The programme may be weekly (PROGx7) or daily
(PROGx1). This choice is made using the switch on the
back of the device.
This programming can also be done in one-hour, half-
hour, or quarter-hour stages.
If you wish to change these settings, refer to the
«installation guide» or contact your installation engineer.
The programming may be done in increments of one hour, 30 minutes, or 15 minutes (refer to the “installation guide”, menu 1-02).
To change the mode in progress, press OK again.
To cancel the current absence mode, turn the selector dial.
Conrm Conrm Conrm
Return to AUTO
mode at the end of
the countdown, at
00:00.

DELTA DORE TYBOX 117 Specifications

General

Display	LCD
Mounting	Wall-mounted
Accuracy	±0.5°C
Programmable	Yes
Temperature Range	5°C to 30°C
Power Supply	230V
Compatibility	Heating systems
