Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-95
Communication tab in Configuration option
Interface It is used to set communication interface. There are RS232,
RS422 and RS485 three options. The default setting will be
different depending on HMI type the user uses.
Data Bits There are 7 Bits and 8 Bits two options.
Stop Bits There are 1 Bits and 2 Bits two options.
Baud Rate Communication baud rate. There are 4800, 9600, 19200, 38400,
57600 and 115200 these options. The user can enter the setting
value directly but the max. setting value can not exceed 187500.
Parity There are None, Odd and Even three options.

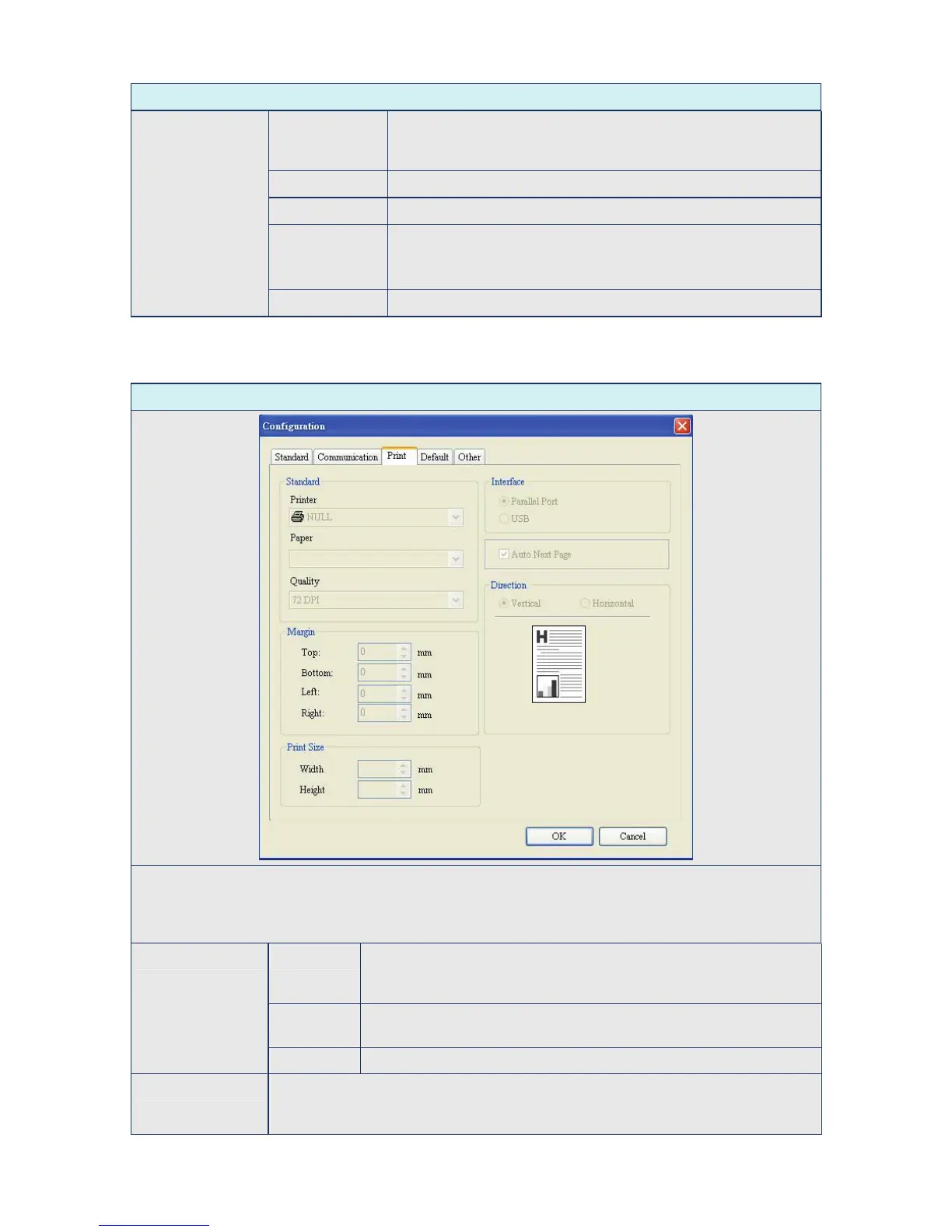

Table 2.9.3 Print Tab
Print tab in Configuration option
HMI provides two print options, one is Hard Copy function, which can print the current screen and print
one page one time. The other is Print Typesetting function. If Print Typesetting function is selected, no
only the screen data but also all history data can be output to the printer directly. For more description of
print setting method, please refer to the introduction of Print Typesetting function on page 2-109.
Printer Use this option to set the connecting printer. The user can use the
drop-down list to specify the printer. The printers in the list are sorted
by manufacturers and the user can find the printer easily.
Paper The user can use the Paper drop-down list to select the paper size.
The predefined paper sizes in the list are A4 and Letter only.
Standard
Quality Only 72DPI option is provided.
Margin The user can determine the blank space (margins) that will not be printed by using
this option. This option can specify the top, bottom, left and right margins and the
unit is mm.
To Next Page
