Interface It is used to set printer interface. The user can specify the communication port of the
printer. There are Parallel Port and USB two options. If Parallel Port is selected, the
optional printer module, DOP-EXPM110 is needed.
Auto Next Page When the “Auto Next Page” option is selected, the printer will print the next page
automatically. If the checkbox next to “Auto Next Page” is not checked, the printer
will print continuously without breaking for different pages.
Direction It is used to set printing direction (orientation). There are Vertical (Portrait) and
Horizontal (Landscape) two options.

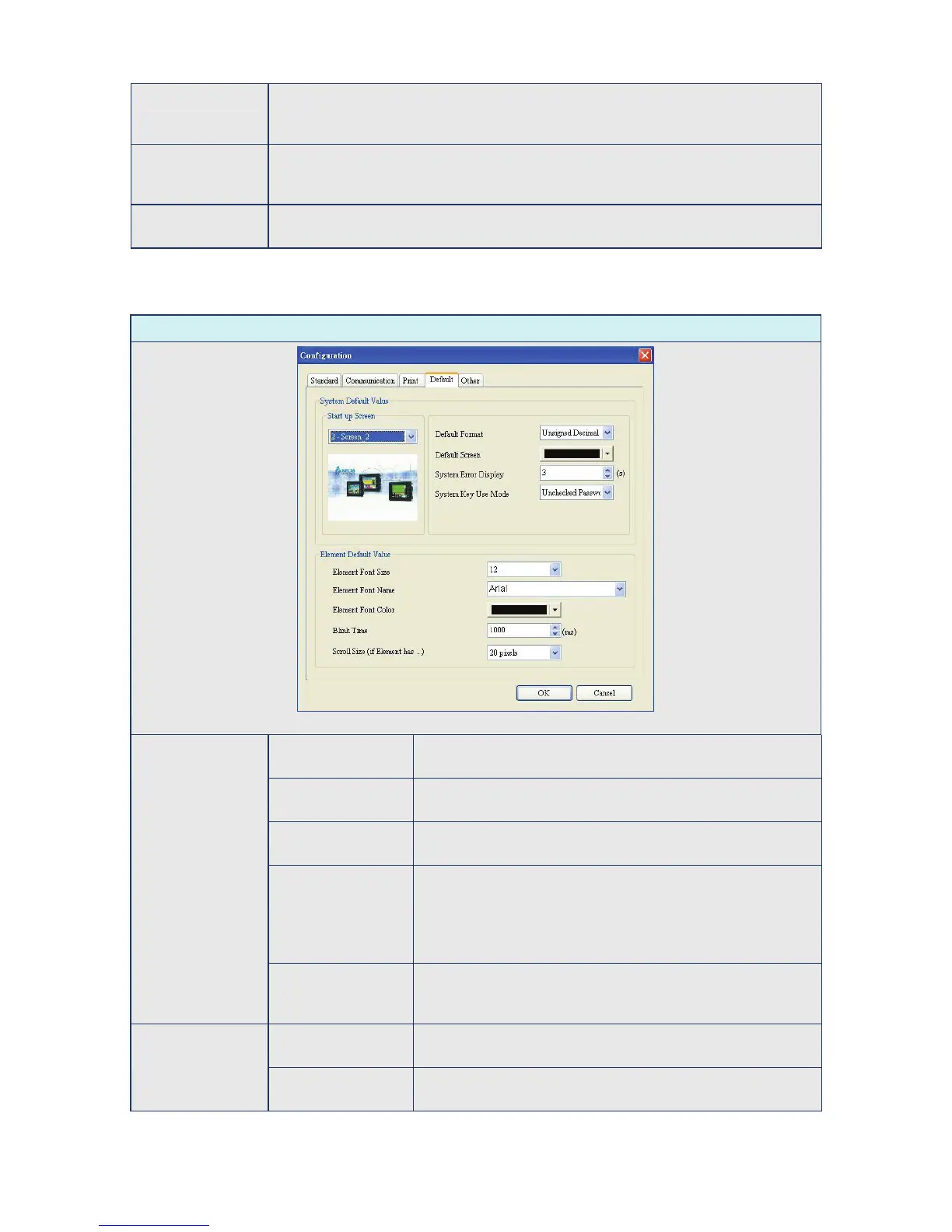

Table 2.9.4 Default Tab
Default tab in Configuration option
Start up Screen Use this option to set the first display screen when HMI is
powered on and started up.
Default Format When creating elements, it is used to set the default value
format.
Default Screen When a new editing screen is created, the user can use this
option to set the default screen background color.
System Error Display
Time
Use this option to set the display time of system error
message dialog box. The range is within 0 ~ 5 seconds.
Please note that if the setting value is set to 0, it indicates
that the system error message dialog box will not display
on HMI screen.
System Default
Value
System Key Use
Mode
It is used to set the system key action when the user presses
the key. There are Disable, Check Password and
Unchecked Password three options.
Element Font Size It is used to specify the default element font size when
creating an element.
Element Default
Value
Element Font Name It is used to specify the default element font name when
creating an element.
