Chapter 7 Example Explanation|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 7-9
• In the Text portion for each button type in ON and OFF for each Button then the user will see the
effect when using them and know which one to select.
• Select the Icon to download it to the HMI.
• Select the Icon to compile the program.

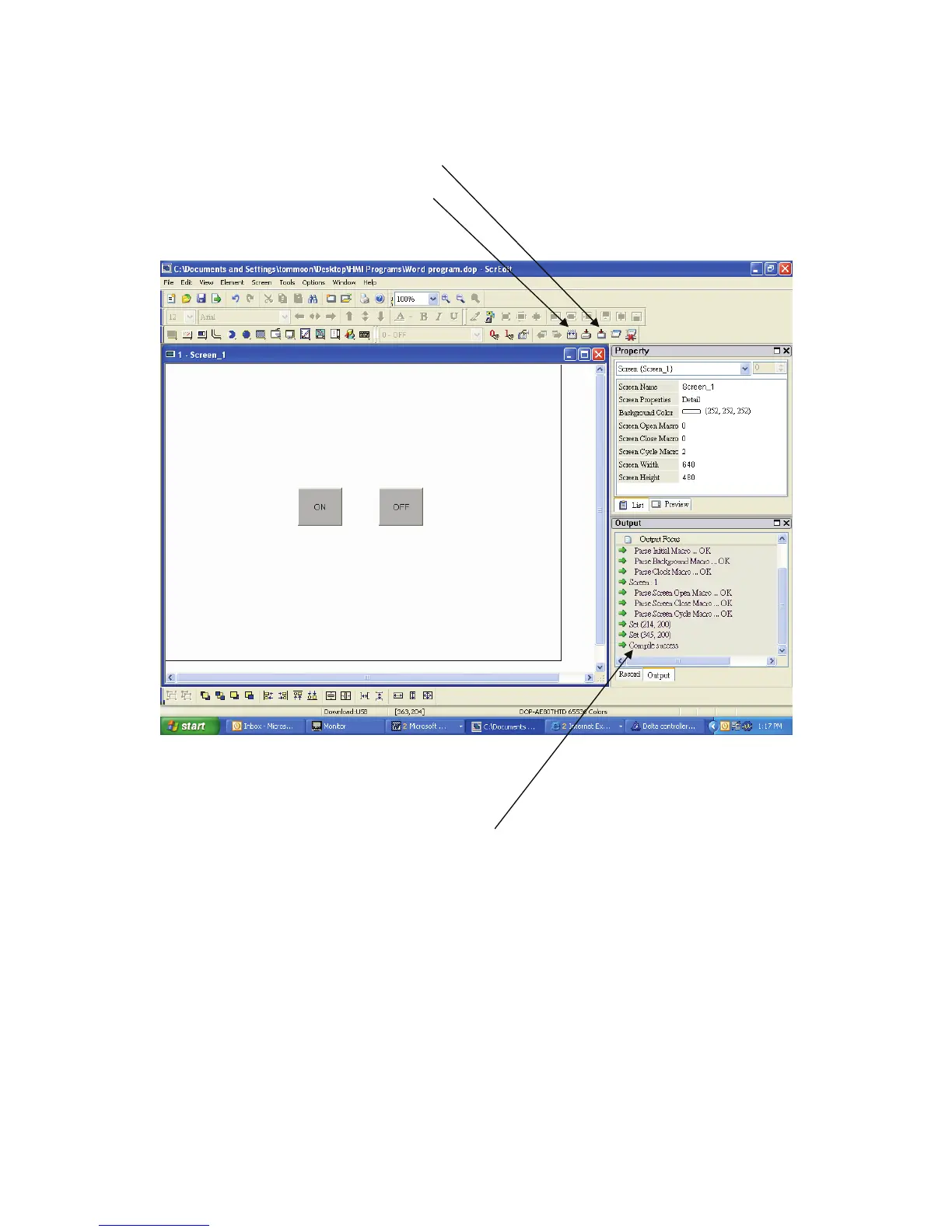

The screen will look like this. See Fig. 7.10
Fig. 7.10
• Note the Compile success in the Output window.
• If there is an error it will appear here.
Then try the program on the HMI screen.
