Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-61
Function Description
Check the
check box next
to “This screen
is a sub-
screen”
The check box next to “This screen is a sub-screen” can be checked only
when General View Screen option is selected. Therefore, before setting
sub-screen function, please ensure General View Screen option is
selected.

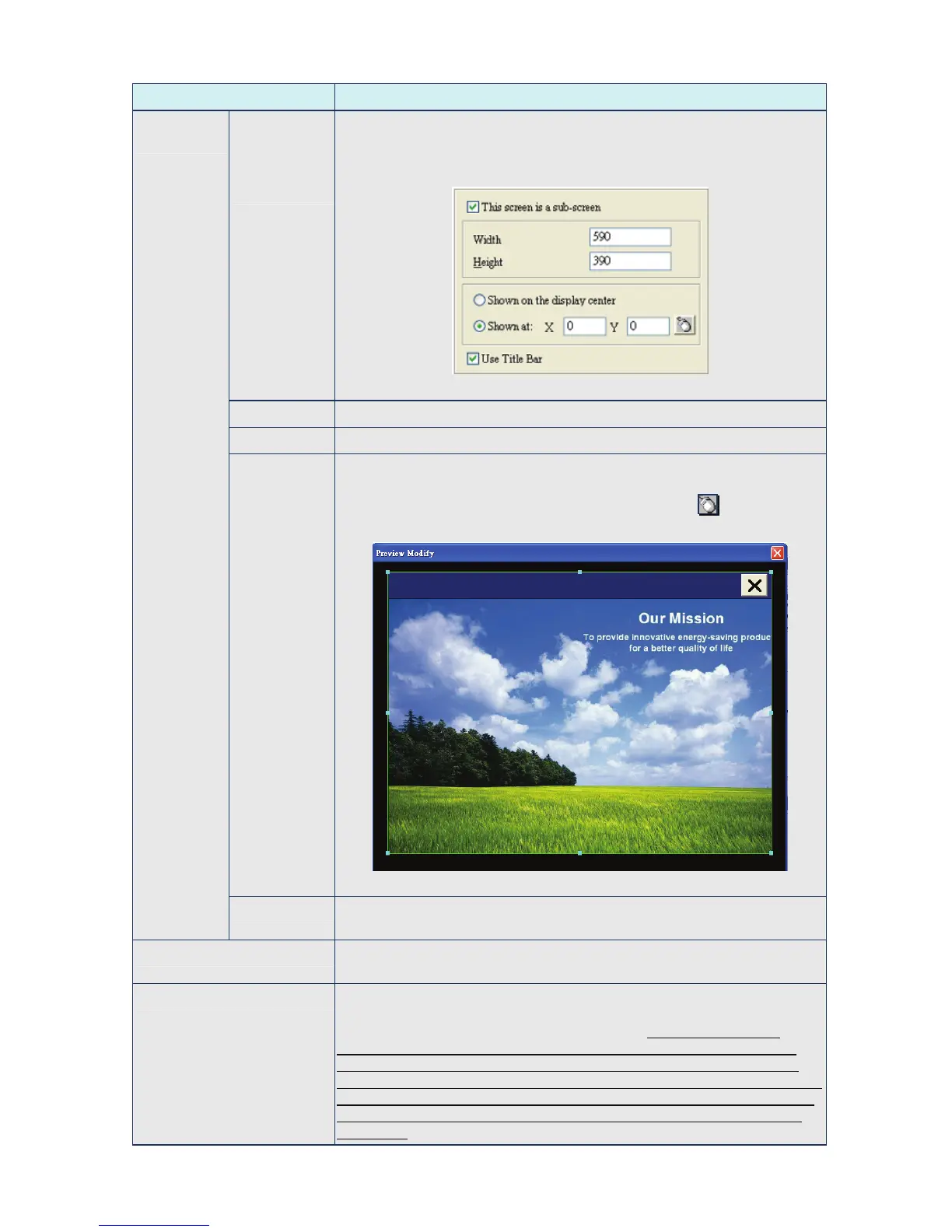

Fig. 2.7.16 Sub-screen setting
Width It is used to set the width of sub-screen and the unit is Pixel.
Height It is used to set the height of sub-screen and the unit is Pixel.
The user can decide if the sub-screen is shown on the center position of
HMI display or specify the display position freely. Only input the coordinate
value directly (X and Y axis) or press the mouse button to drag the
sub-screen to the position the user decided (Fig. 2.7.17).
Sub-screen
Position
Fig. 2.7.17 Sub-screen position
Sub-screen
Setting
Title Bar When the check box next to “Use Title Bar” is checked, the title bar will be
shown when opening sub-screen.
Cycle Macro Delay Time It is used to set Cycle Macro Delay Time when this screen is executed
every time. The range of the cycle macro delay time is within 100ms ~ 5s.
Fast Refresh Rate There are three levels of the Fast Refresh Rate and they are High, Medium
and Low. The purpose of this function is used to make some elements be
displayed immediately when switching screens. Please note that this
function is designed to provide fast value refresh speed for the element
which performs communication frequently. Therefore, it only allows four
elements that can be renewed immediately in each screen. If the user uses
this function on too many elements, it may affect the normal speed of HMI
operation. So, we recommend the user not to activate this function if not
necessary.
