Chapter 12 Application Examples|ASDA-A&A+ Series
12-20 Revision April 2009

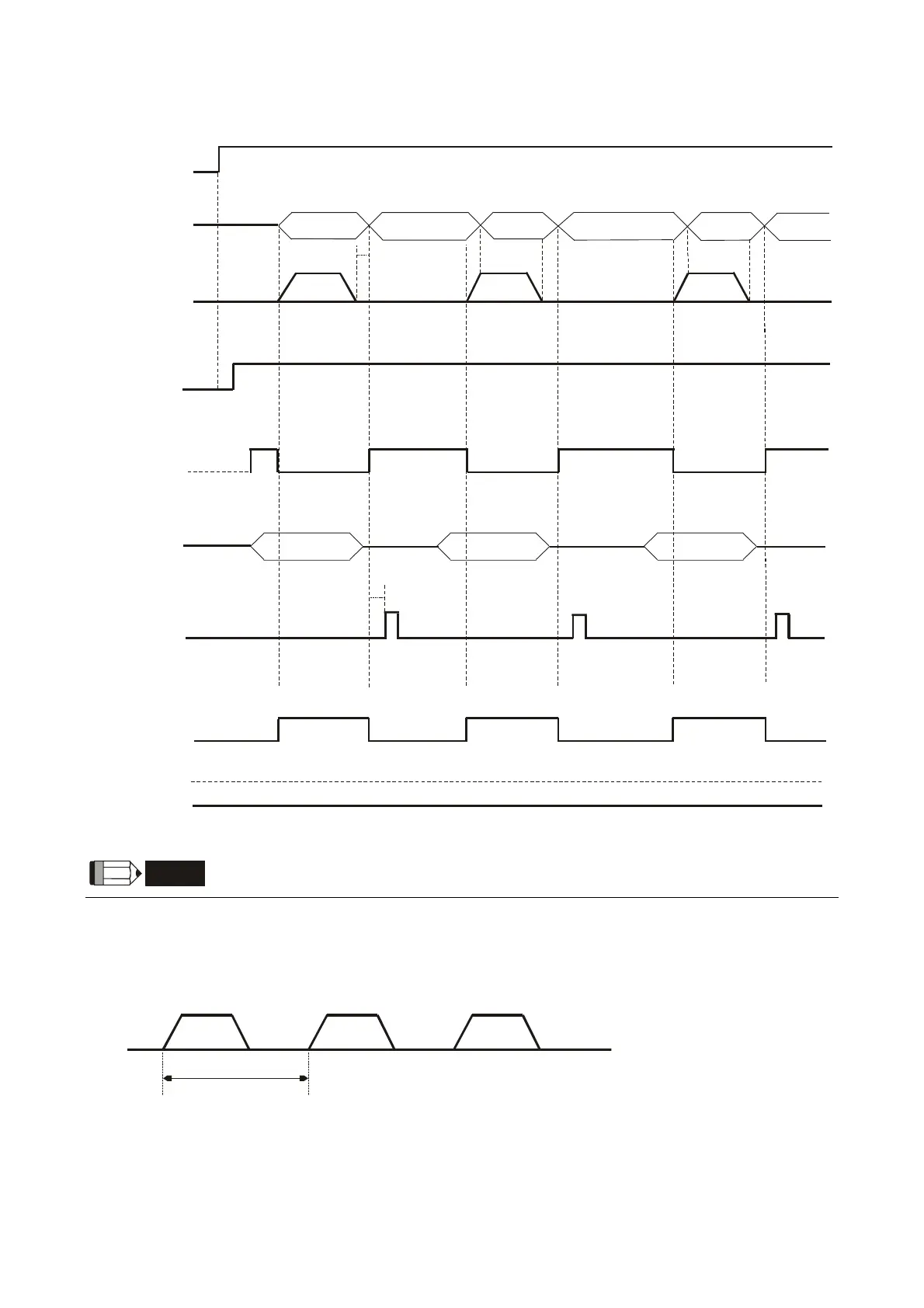

(2) Feed Step Control Mode
Power
Supply
ON
OFF
DO VALUE
Motor Speed
CCLR
IDX Value 10
ON
OFF
ON
OFF
ON
OFF
Torqu e
Limit
MD1
MD0
CI
CIINDEX 2 (06)
CI
INDEX 6 (0A)
Servo ON
P2-45
Step No. 2 Step No. 6 Step No.
P2-47
ON
OFF
NOTE
1) The maximum value of P2-45 = 125 x T min.
2) T min. is the minimum time from A to B, i.e. the time between when start running at A and when start
running at B (please refer to the figure below). Time unit is 1 second.
T min.
AB
