Delta Elektronika SM3300 Series User Manual

REMOTE PROGRAMMING SM3300
22 / 30 DELTA ELEKTRONIKA B.V. rev. Jan. 2022
7
REMOTE PROGRAMMING
7.1
SOURCE SETTINGS

Via the front menu, the source can be set to the required
programming input via: Menu -> Configuration -> Source.

The possible settings for V-settings, I-settings and P-
settings are: front encoders, ethernet, web interface,
sequencer or an optional interface in rear slot1, 2, 3 or 4.

It is possible to have different sources for the settings for
example V-settings via 'web' and I-settings via 'front'.
7.2
WEB INTERFACE

It is advised to use the web browsers Mozilla Firefox or
Google Chrome.

The web interface is available 40 seconds after start up of
the unit.

Set the programming source for voltage and/or current to
'web' via the front menu.

The below menu items are available in the web interface:
7.2.1 CONSOLE
FRONTPANEL

Possible settings via the console:
- voltage and current
- output On/Off

Possible monitoring via the console:
- actual and set values of voltage and current
- output setting (on/off)
- status icons, for example DC-fail
- type of unit and serial number
- on time of the unit
- system temperature and fan speed
- input voltage

See fig. 7 - 1 for the console lay-out.
SEQUENCER

Possible to select sequences from
the unit memory.

Running, Pausing and Stopping of
sequences.

Trigger sequence

Running in Single Step mode.

See fig 7 - 2 for the console lay-out.
MASTER / SLAVE

Only available on the Master unit.

Overview of the entire system.

Shows the most important icons.

Links to the front panels of Slave units when the Slave(s)
are connected to the same LAN. (Click ID#)

See fig 7 - 3 for the console lay-out.
7.2.2 CONFIGURATION
GENERAL
FRONTPANEL

Front user interface language.

Front unlock key protected (Enabling will lock
Frontpanel).

Backlight intensity when active.

Backlight intensity when no user interaction.

Timeout for backlight dimmer.

LCD contrast.
DEFAULTS

Default voltage setting and value after power cycle.

Default current setting and value after power cycle.

Default output state after power cycle.
SOURCES

Set the program source for voltage control.

Set the program source for current control.

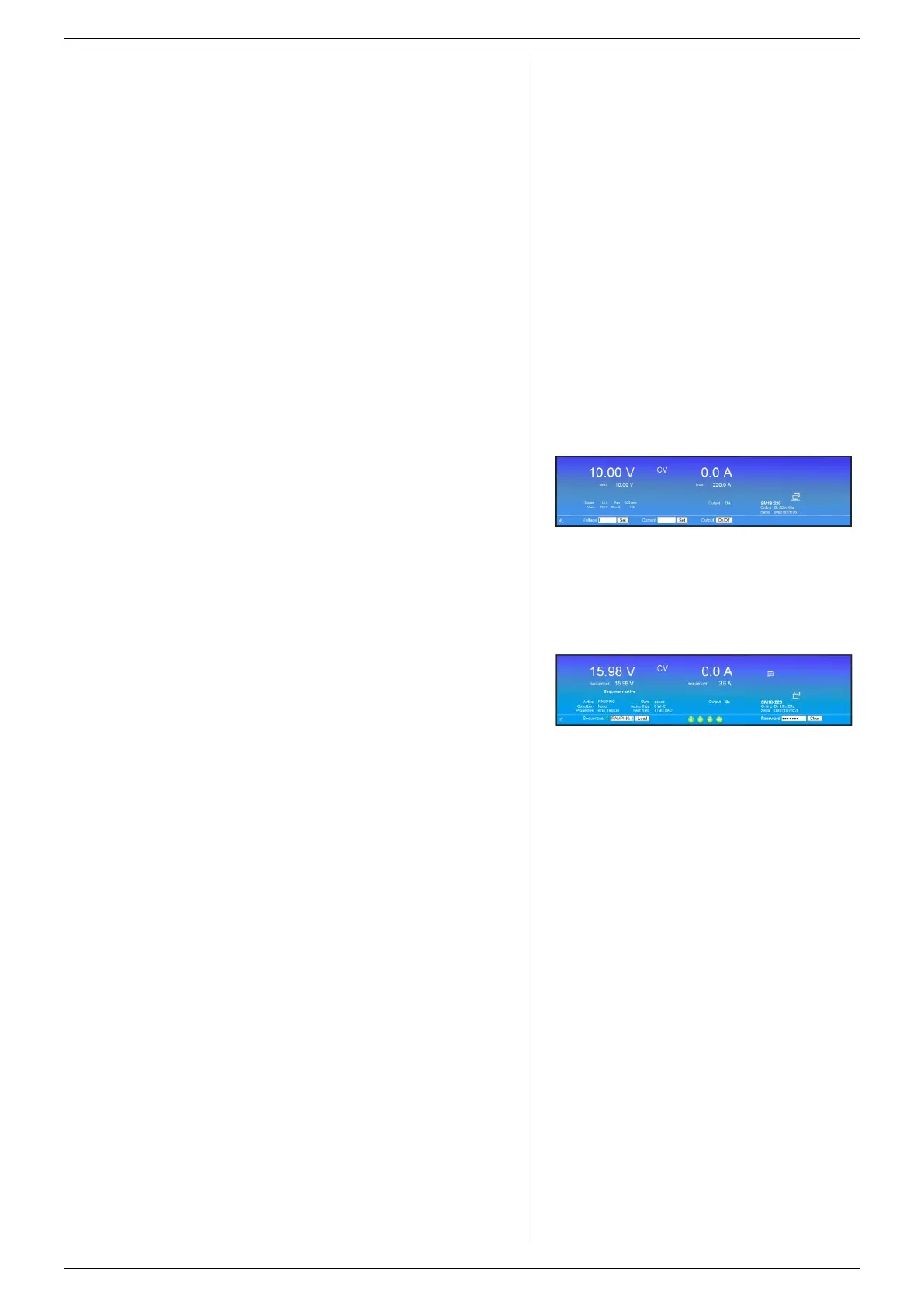

fig 7 - 1
Front console for setting of the output and
monitoring various parameters.
fig 7 - 2
Sequencer console for selecting and controlling
sequences.
