Delta 14-650 - Fastening Mortiser to Surface

8
Fig. 13
Fig. 14
Fig. 15

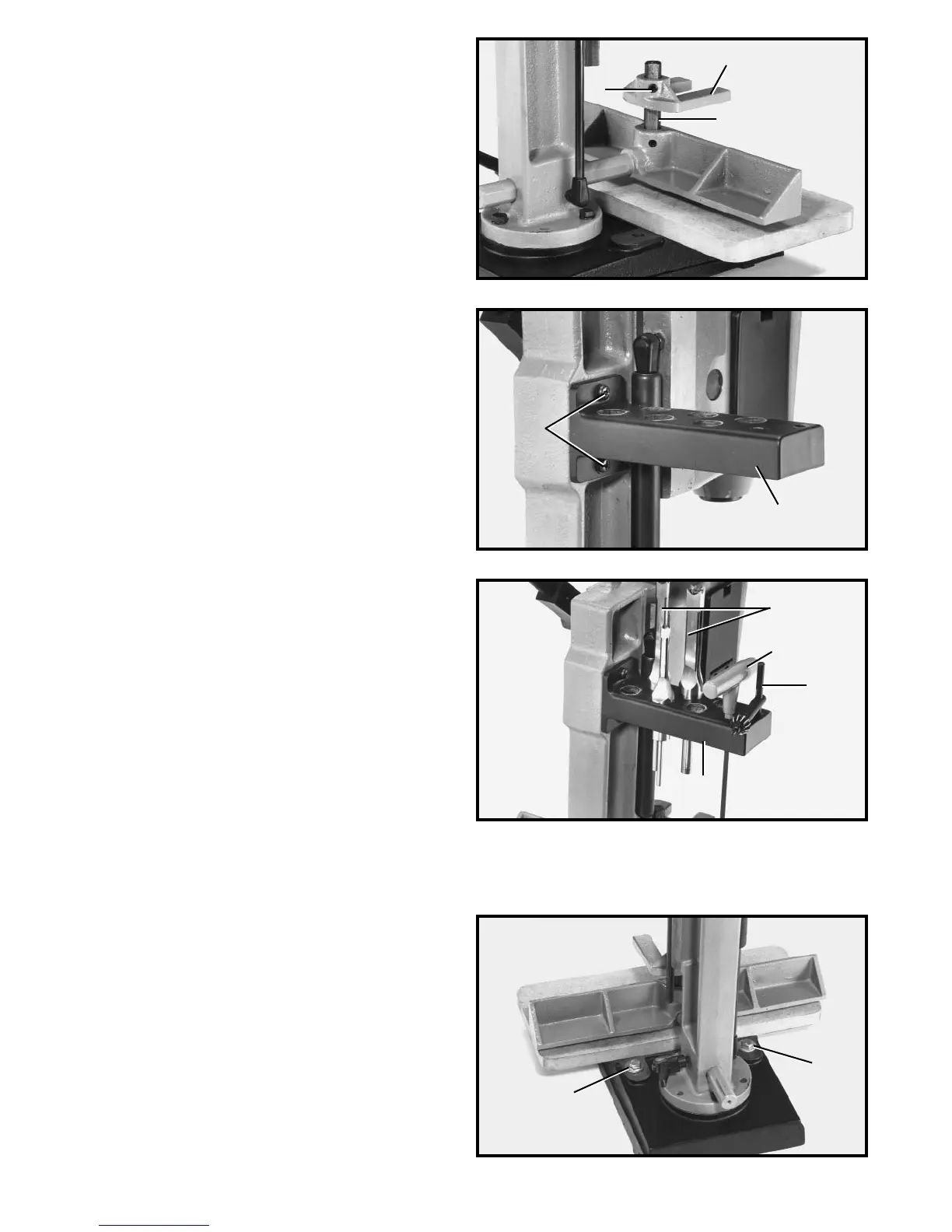

7. Assemble the holddown (H) Fig. 13, onto bar (F) as
shown, and tighten set screw (J) against flat on bar.
ASSEMBLING TOOL
AND CHISEL HOLDER
1. Assemble tool and chisel holder (A) Fig. 14, to side
of column using the two M6 x 25mm screws (B) and flat
washers as shown.
2. Fig. 15, illustrates the chuck key (C), wrench (D) and
chisels and bits (E) in holes of tool and chisel holder (A)
when not in use.
FASTENING MORTISER TO SUPPORTING SURFACE
Fig. 16
This machine must be fastened to a supporting surface
to prevent it from tipping during operation. Two holes are
supplied in the base casting to accept screws (A) Fig.
16, for this purpose.
