16
2. Loosen screw (C) Fig. 47, and rotate wheel guard (D)
to the rear, as shown in Fig. 48, and tighten screw
(C).

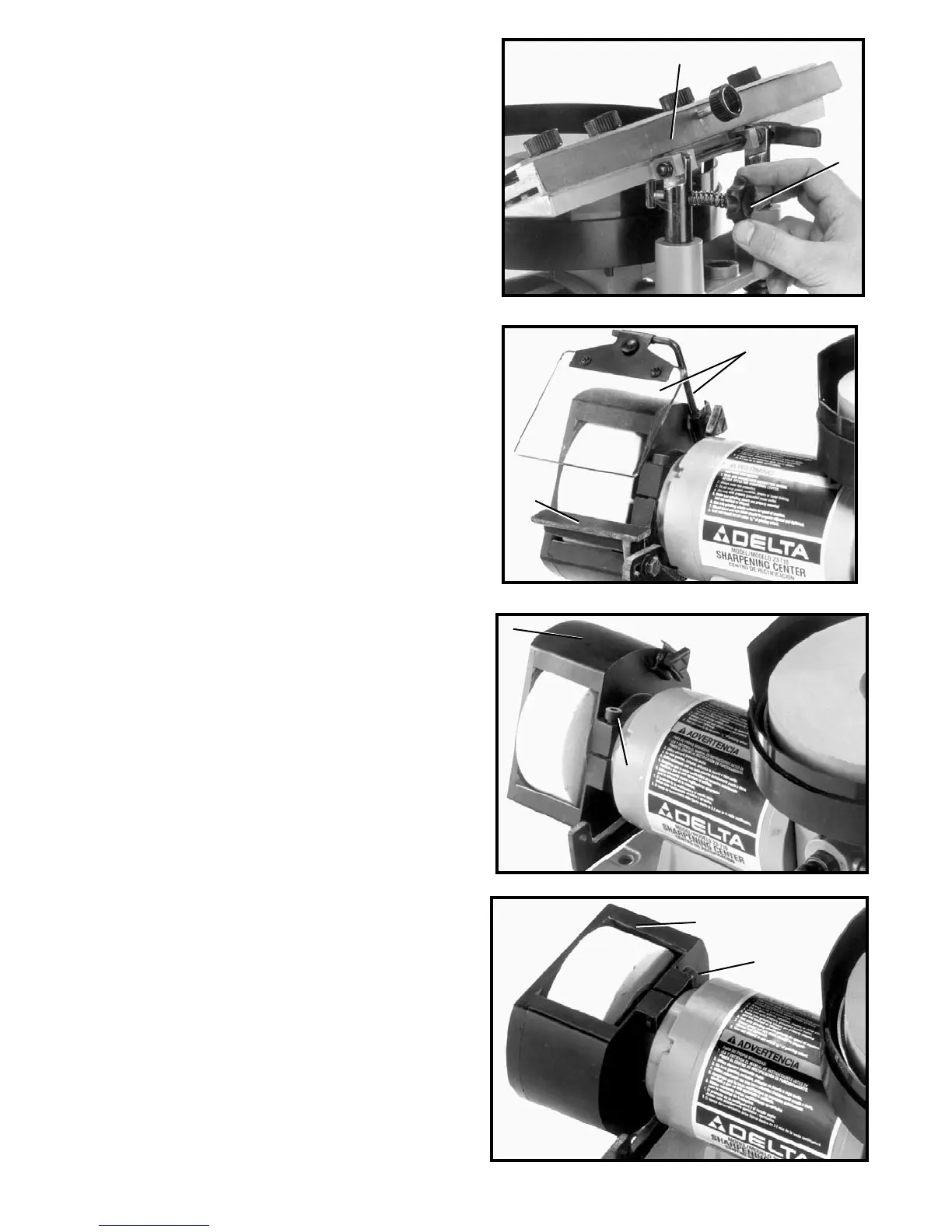

Fig. 45
Fig. 46
8. To tilt the sliding tool rest (K) Fig. 45, to conform with
the angle of the knife to be sharpened, turn the tool
rest tilting knob (P).
USING ACCESSORY 23-715 SLIDING
TOOL REST ON DRY WHEEL
When sharpening planer or jointer knives that have deep
nicks, the knives can first be rough ground on the dry
grinding wheel, using the sliding tool rest, before fine
sharp en ing is performed on the wet wheel. To use the
sliding tool rest on the dry wheel, proceed as follows:
1. Remove the dry wheel tool rest (A) Fig. 46, and eye-
shield (B).
Fig. 47
Fig. 48
