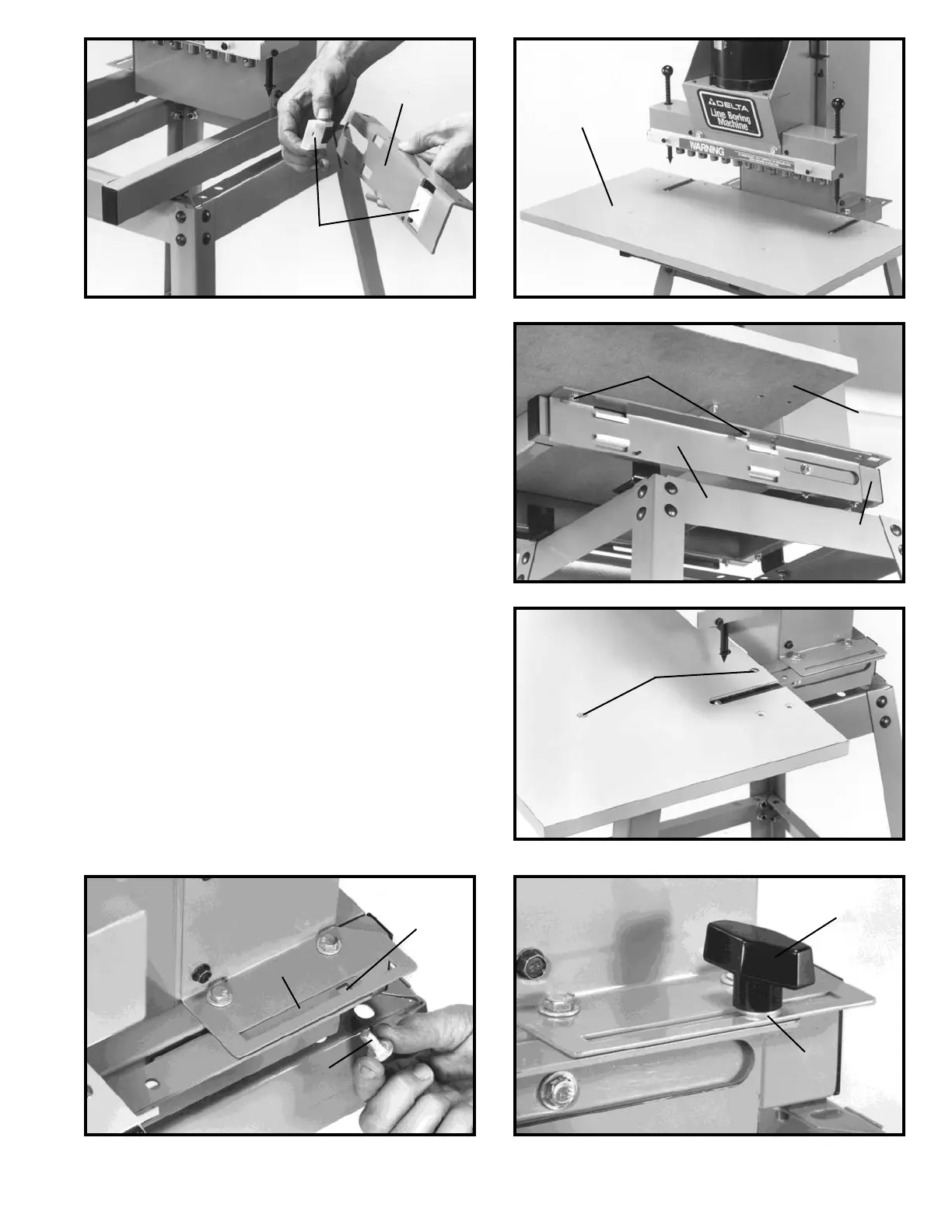

ASSEMBLING TABLE
TO MACHINE
1. Clip the two table slides (A) Fig. 8, to the table
bracket (B) as shown.
2. Clip the remaining two table slides to the other table
bracket in the same manner.
3. Center table (C) Fig. 9, on the machine frame as
shown.
4. Position table bracket (B) Fig. 10, against machine
frame (D) and underneath table (C) as shown, lining up
the two holes (E) Fig. 11, in the table with the two holes
(F) Fig. 10, on top of table bracket (B) Fig. 10.
5. Fasten the table to the table bracket using the two
1/4-20x1-1/4" flat head screws (E) Fig. 11, and two 1/4-
20 lock nuts (F) Fig. 10. NOTE: DO NOT TIGHTEN
HARDWARE AT THIS TIME.
6. Assemble the remaining table bracket to the other
side of the table and frame in the same manner.
A
B
C
F
C
B
D
E
Fig. 12
H
J
G
Fig. 13
L
K
7. Insert the 5/16-18x3/4" carriage bolt (G) Fig. 12, up
through square hole (H) and slot (J) as shown, and fasten
in place using the 5/16" flat washer (K) Fig. 13 and lock
knob (L). NOTE: DO NOT TIGHTEN HARDWARE AT
THIS TIME.
To Next Page
