LVC STARTER BOX
TO CABINET
If you purchased the machine with magnetic push
button electrical controls (LVC), the saw is shipped with
the starter box completely wired to the switch and
motor. However, the starter box must be mounted to the
saw cabinet. To assemble the starter box (A) Fig. 7, to
the saw cabinet, proceed as follows:
1. Place a 1/4" lockwasher then a 1/4" flat washer onto
a 1/4-20x1/2" hex head screw. From the inside rear of
the saw cabinet, insert the 1/4-20 x 1/2" hex head screw
into the hole (B) Fig. 7, in the cabinet. Repeat this
process for the two remaining screws.
2. Line up the three tapped holes (C) Fig. 7, in the
starter box with the screws and secure the starter box
(A), to the saw cabinet.
3. Figure 8 illustrates the starter box (A) assembled to
the saw cabinet.

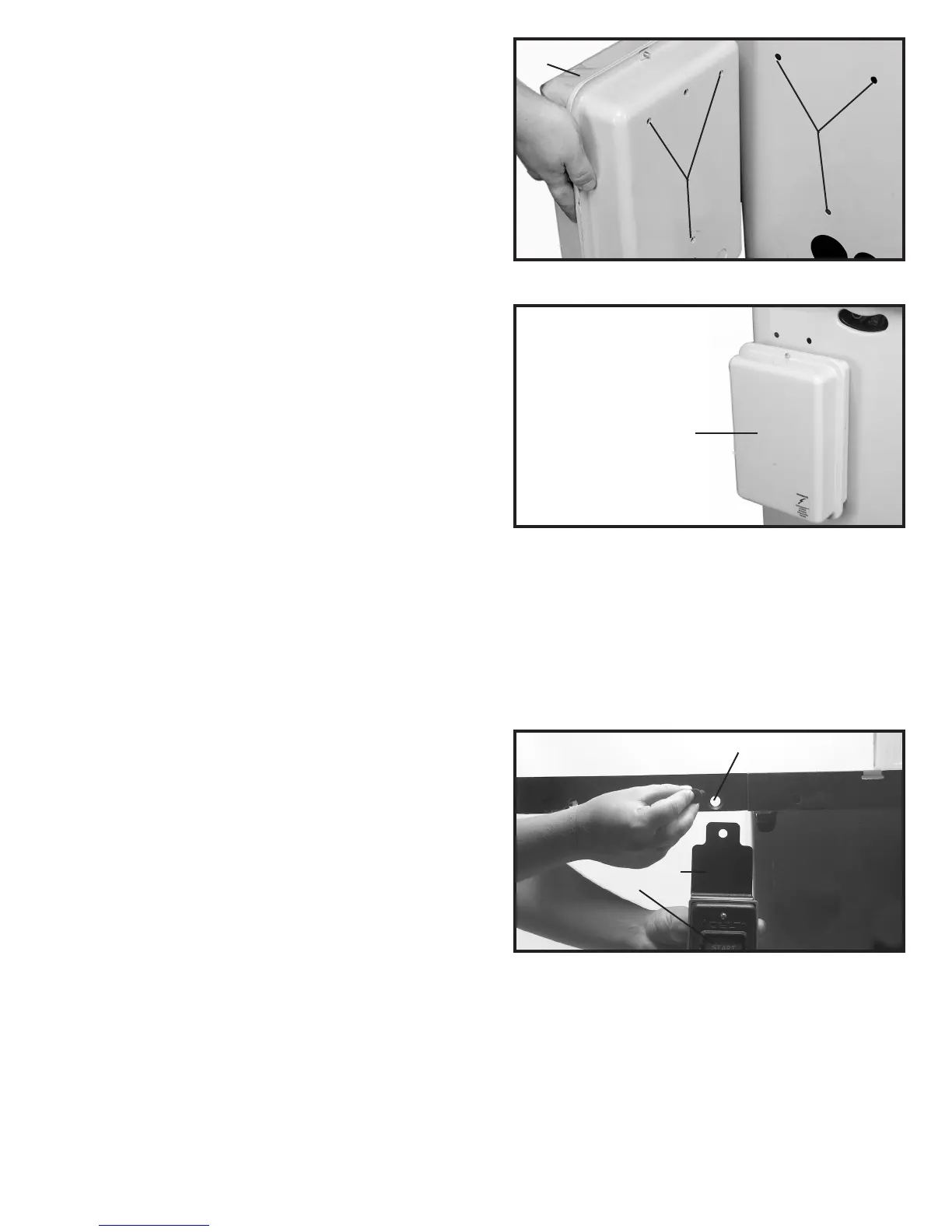

Fig. 7
Fig. 8
A
C
B
A
LVC ON / OFF SWITCH
1. Locate the LVC switch and hardware that was
removed in the section “ EXTENSION WING.”
2. Mount the switch bracket (C) Fig. 9, to the inside of
through hole D) on the left front edge of the extension
wing with the hardware that was removed.
NOTE: If you have a GPE switch see “GPE ON/OFF
Switch” instructions.
Fig. 9
D
C
A
