5

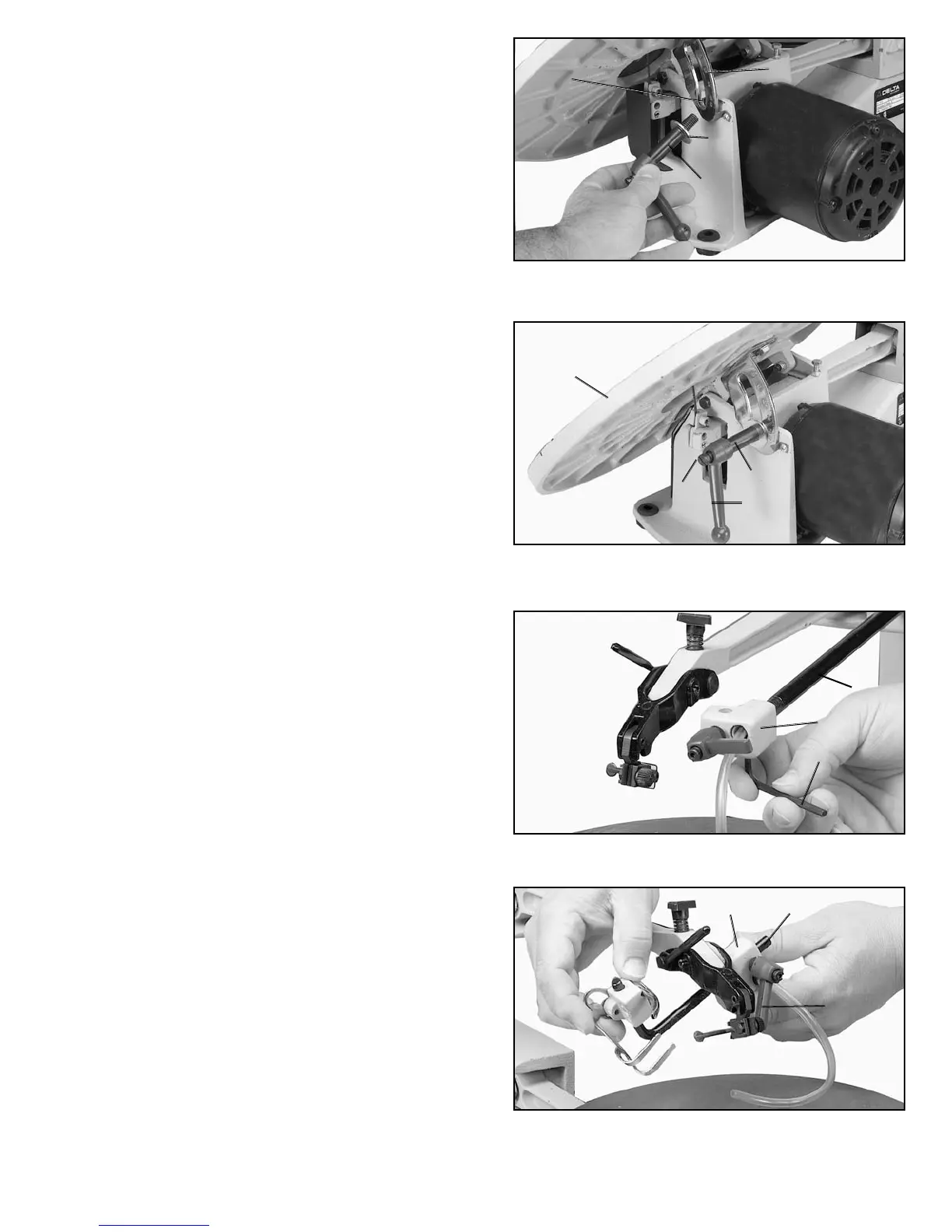

Fig. 6
Fig. 7
Fig. 8
Fig. 9
4. Screw threaded end of stud (H) Fig. 6, with flat
washer (J) through slot in angle of tilt scale (D) and into
tapped hole (K).
5. Reassemble handle (G) Fig. 7, and screw and spring
(F) which were removed in STEP 3, onto stud (H). Move
table (A) to the horizontal position and lock table (A), by
turning handle (G) clockwise.
6. Using the wrench (L) Fig. 8, supplied, loosen the two
screws on bottom of bracket (M) that fasten bracket to
rod (N).
7. Rotate bracket (M), to the position shown in Fig. 9.
Loosen lock handle (R) and insert holddown rod (S) into
hole in bracket (M), as shown.
G
F
H
A
L
M
N
R
M
S
D
K
J
H
