10

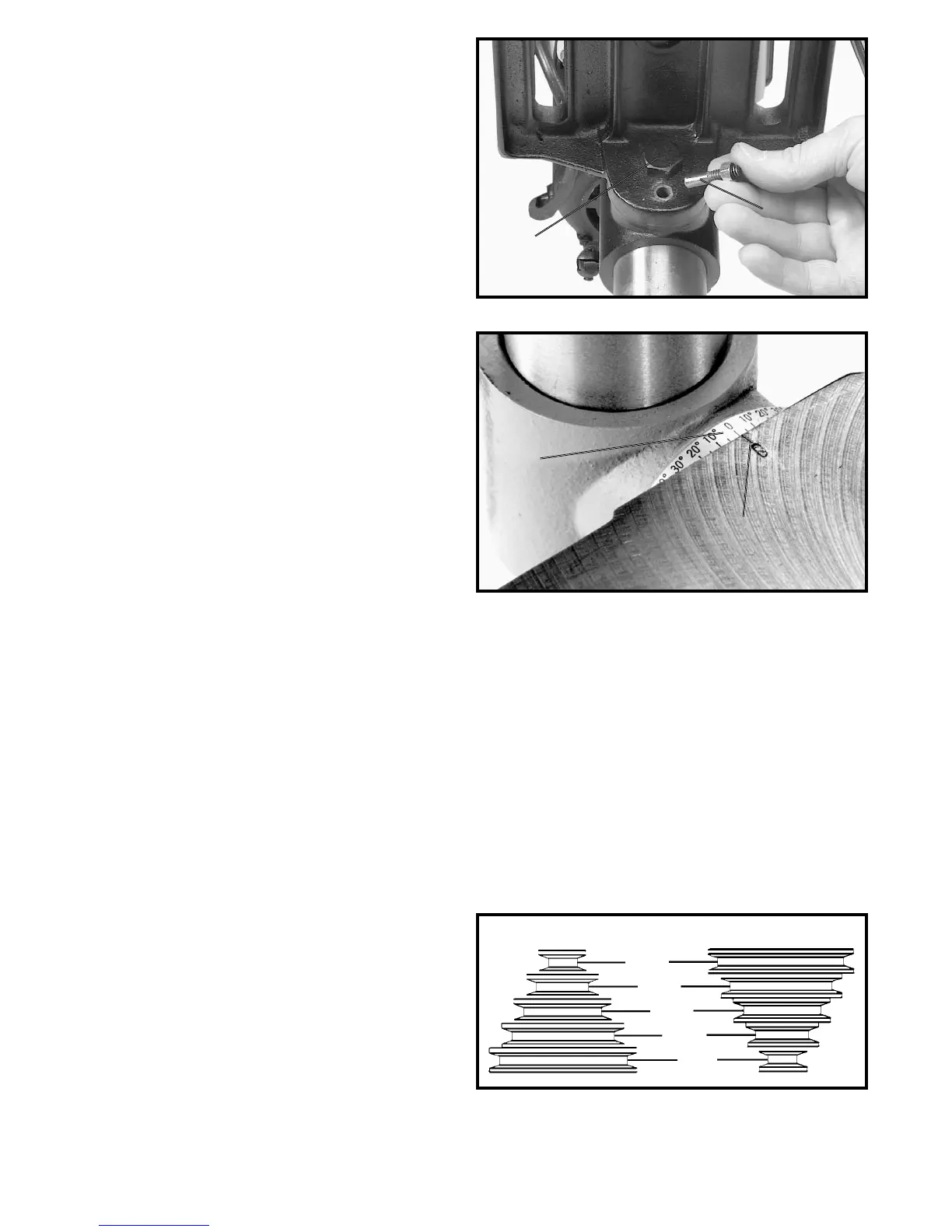

3. Fig. 22, illustrates the table alignment pin (B)
removed. Loosen table locking bolt (D), tilt table to the
desired angle and tighten bolt (D). When returning table
to the level position, replace table alignment pin (B). This
will automatically position the table surface at 90
degrees to the spindle.
Fig. 23
Fig. 25
SPINDLE SPEEDS
Five spindle speeds of 620, 1100, 1720, 2340 and 3100
RPM are available with your drill press. The highest speed
is obtained when the belt is on the largest step of the
motor pulley and the smallest step of the spindle
pulley, as shown in Fig. 25. Fig. 25, illustrates which step
of the motor and spindle pulley the belt must be placed
to obtain the five speeds available.
SPINDLE MOTOR
3100
2340
1720
1100
620
Fig. 22
4. A tilt scale (E) Fig. 23, is provided on the table
bracket casting to indicate the degree of tilt. A witness
line and zero mark (F) are also provided on the table to
line up with the scale (E).
B
D
E
F
